Is This Fixable?       #: 1332
 Moderated by: NoPower, Mike69, MaDMaXX,
New Topic Reply
 Rate Topic
 Posted: Sat Oct 13th, 2018 05:54 pm
PM Quote Reply
1st Post
VelociRanger
I’ll probably do it tomorrow


Joined: Mon Jun 25th, 2018
Location: Dallas, Texas USA
Posts: 721
Name: Justin ...
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 721

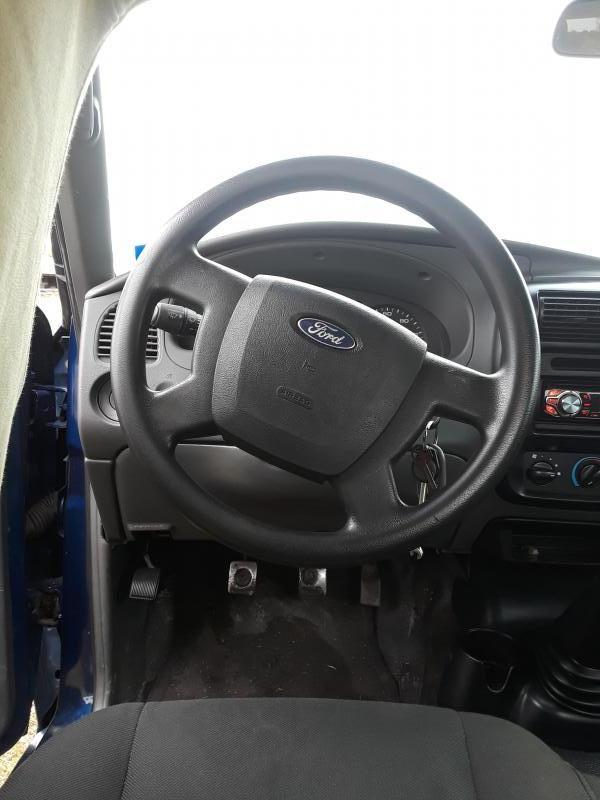

Some may have seen that my brother decided my truck looked good in a ditch...weeeellllll now the steering wheel is off. In the picture, the tires are pointed eyeball-straight ahead and this is how the steering wheel is. Would an alignment fix this, or would the outer tie rod be too close to the end of the inner tie rod and not have enough threads to be safe? If that doesn't make sense I'll try again. Thursday I'm getting tires and an alignment, and I'm also putting the camber kits in in the Walmart parking lot to save on install cost and to not have to worry about driving too far with a severely messed up alignment, lol living in the country isnt always beneficial. Thanks.



____________________
knowing when to quit is wisdom, being able to quit is courage.

1983 Ranger, reluctantly taking apart. Donor/project vehicle.

1997 Ranger Ex Cab Manual 4.0 2wd, dead on arrival. Hopefully reviving for a daily driver.

1984 Ranger, currently in ≈861 pieces. She’s donating what’s salvageable.
Back To Top PM Quote Reply

 Posted: Sat Oct 13th, 2018 07:22 pm
PM Quote Reply
2nd Post
JAMMAN

Owns A Torsen


Joined: Mon Sep 18th, 2017
Location: Grove City, Ohio USA
Posts: 6436
Name: Jim ...
Occupation: 5 axis cnc programmer ...
Interests: RBV's ...
Status:
Offline
Reputation:
Reputation Points: 6436
Part of an alignment is straightening the steering wheel. They have a
"tool" that clamps to the wheel and spans across from driver window to passenger window and holds it straight. Then they just twist tie rod ends while watching the toe on the computer.

The windows are open and it lays across the doors at the bottom (the tool)



____________________
00 XLT 4WD RCSB 3.GO! Jalapeño
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.
Back To Top PM Quote Reply

 Posted: Sat Oct 13th, 2018 07:31 pm
PM Quote Reply
3rd Post
VelociRanger
I’ll probably do it tomorrow


Joined: Mon Jun 25th, 2018
Location: Dallas, Texas USA
Posts: 721
Name: Justin ...
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 721
So you dont think that fixing a steering wheel that is this off will be bad, like the outer tie rods being too far to the edge of an inner? I may be over reacting, but I'm just checking to make sure



____________________
knowing when to quit is wisdom, being able to quit is courage.

1983 Ranger, reluctantly taking apart. Donor/project vehicle.

1997 Ranger Ex Cab Manual 4.0 2wd, dead on arrival. Hopefully reviving for a daily driver.

1984 Ranger, currently in ≈861 pieces. She’s donating what’s salvageable.
Back To Top PM Quote Reply

 Posted: Sun Oct 14th, 2018 03:56 am
PM Quote Reply
4th Post
chris

Wrench spinner


Joined: Thu Oct 5th, 2017
Location: Leigh On Sea
Posts: 642
Name: Chris ...
Occupation: Retired ...
Interests: Science, technology, horses ...
Status:
Offline
Reputation:
Reputation Points: 642
If the wheel was straight before and after the crash it is now tilted then you need to check the steering arms, tie rods, rack, suspension for damage - just adjusting it either by resetting the wheel on the column or via the tracking adjustment is not advisable in my opinion.

The very last thing you want is something that is damaged to break in the future.



____________________
MG power
Back To Top PM Quote Reply

 Posted: Sun Oct 14th, 2018 07:49 am
PM Quote Reply
5th Post
JAMMAN

Owns A Torsen


Joined: Mon Sep 18th, 2017
Location: Grove City, Ohio USA
Posts: 6436
Name: Jim ...
Occupation: 5 axis cnc programmer ...
Interests: RBV's ...
Status:
Offline
Reputation:
Reputation Points: 6436
The alignment shop will know if there is anything else needed.Something did move, they SHOULD find it.

If it is an option I would take it to a shop that deals with frames also, most frame shops do alignments just to complete their frame work.

My best GUESS is something happened to the rack. I would hope your brother at least pitches in on the repair cost.



____________________
00 XLT 4WD RCSB 3.GO! Jalapeño
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.
Back To Top PM Quote Reply

 Posted: Sun Oct 14th, 2018 12:22 pm
PM Quote Reply
6th Post
VelociRanger
I’ll probably do it tomorrow


Joined: Mon Jun 25th, 2018
Location: Dallas, Texas USA
Posts: 721
Name: Justin ...
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 721
JAMMAN wrote:
The alignment shop will know if there is anything else needed.Something did move, they SHOULD find it.

If it is an option I would take it to a shop that deals with frames also, most frame shops do alignments just to complete their frame work.

My best GUESS is something happened to the rack. I would hope your brother at least pitches in on the repair cost.

Even if the alignment shop is Walmart? Lol, a couple family members work at Walmart and I need tires and dont have a lot of cash, so they're helping me out with tires and alignment for my birthday tomorrow. Yes, I thought the rack was messed up as well and I've actually got a rack and pinion sitting in my room right now, but I don't know how to put it on. It seems simple enough, but I've heard I would need some sort of vacuum pump to recirculate the power steering fluid. And yes, you would hope he would help, but when he returned my truck after driving it into the ditch he didn't even get the glass out from the broken window or offer to pay for any damages, and still isnt offering after I've put a good amount of money and parts into it to get it back to somewhat normal. I've been driving it for while and nothing seems wrong. No popping when I turn lock to lock, no power steering whine, steering isnt loose. I assumed the gear going from the steering linkage  to the rack may have skipped some teeth on the rack, but everything seems fine. No "death wobble" either, so we'll see Thursday and I'll post an update!

Last edited on Sun Oct 14th, 2018 02:01 pm by VelociRanger



____________________
knowing when to quit is wisdom, being able to quit is courage.

1983 Ranger, reluctantly taking apart. Donor/project vehicle.

1997 Ranger Ex Cab Manual 4.0 2wd, dead on arrival. Hopefully reviving for a daily driver.

1984 Ranger, currently in ≈861 pieces. She’s donating what’s salvageable.
Back To Top PM Quote Reply

 Posted: Sun Oct 14th, 2018 05:04 pm
PM Quote Reply
7th Post
VelociRanger
I’ll probably do it tomorrow


Joined: Mon Jun 25th, 2018
Location: Dallas, Texas USA
Posts: 721
Name: Justin ...
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 721

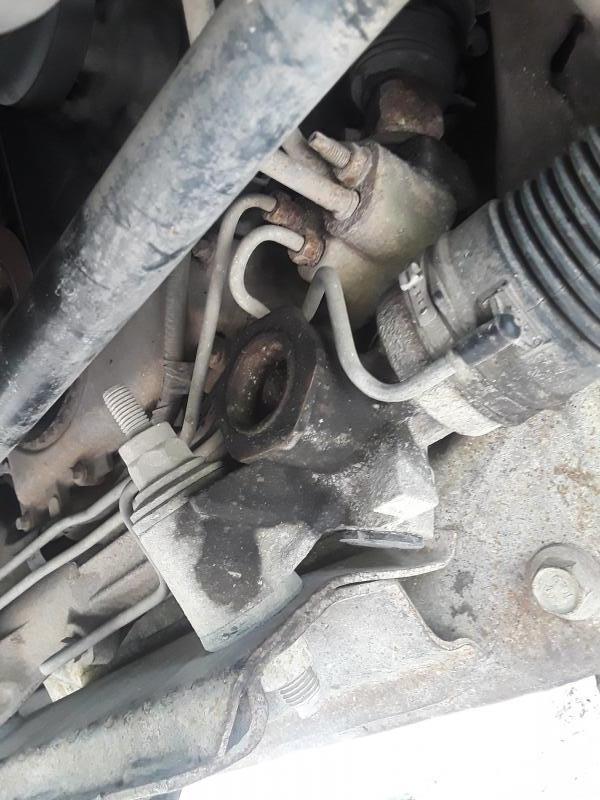

Got back under the truck, checked the inner tie rods, outer tie rods, they're fine and not bent. There's no fluid coming out of the rack and pinion boots on either side, everything feels tight and intact. The only "concern" is where the steering linkage connects to the rack, it looks a little greasy but not excessive.

Last edited on Sun Oct 14th, 2018 05:05 pm by VelociRanger



____________________
knowing when to quit is wisdom, being able to quit is courage.

1983 Ranger, reluctantly taking apart. Donor/project vehicle.

1997 Ranger Ex Cab Manual 4.0 2wd, dead on arrival. Hopefully reviving for a daily driver.

1984 Ranger, currently in ≈861 pieces. She’s donating what’s salvageable.
Back To Top PM Quote Reply

 Posted: Thu Oct 25th, 2018 04:27 pm
PM Quote Reply
8th Post
VelociRanger
I’ll probably do it tomorrow


Joined: Mon Jun 25th, 2018
Location: Dallas, Texas USA
Posts: 721
Name: Justin ...
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 721

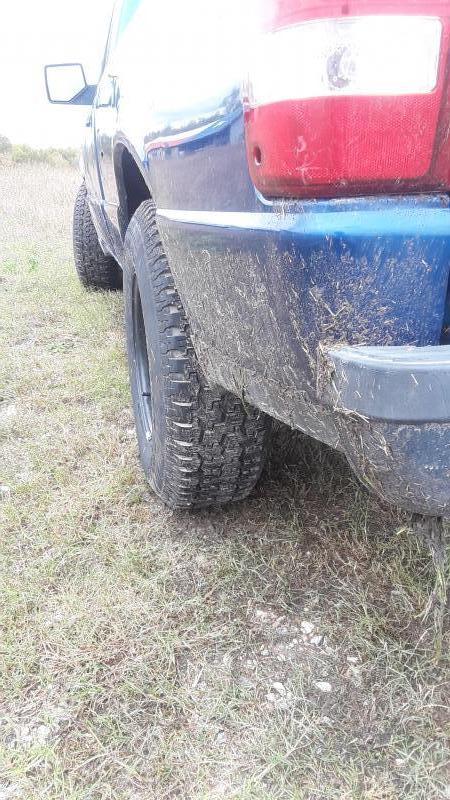

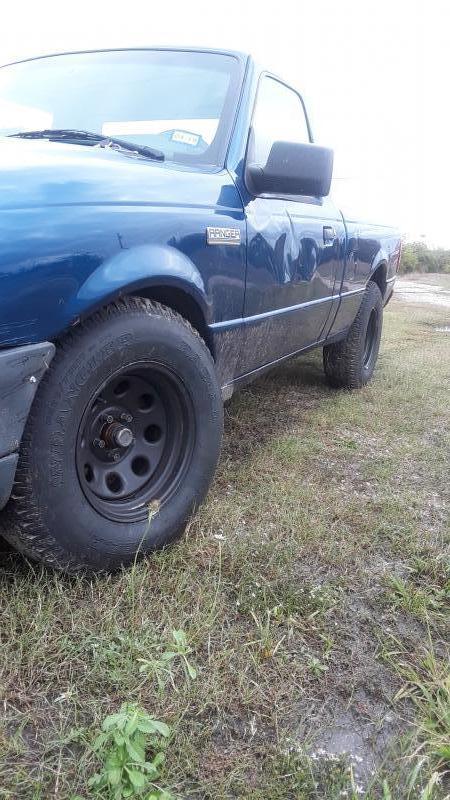

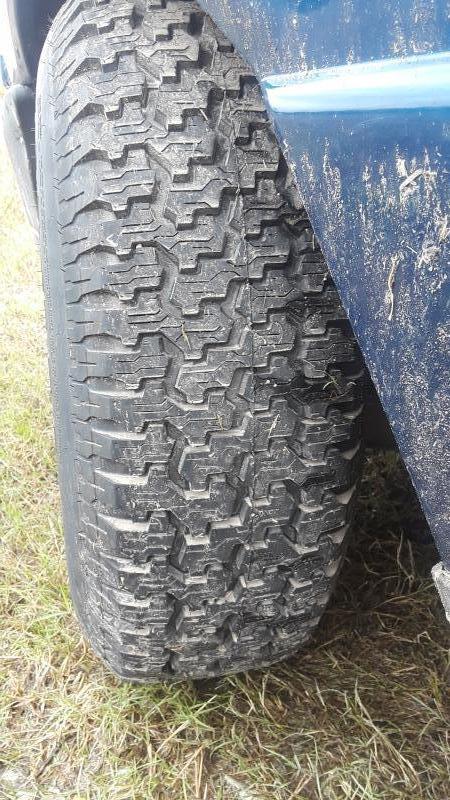

A little late on the update, but I got tires for my truck, and didnt get the alignment just yet for lack of funds, yes I know it's only $50-$100 but I dont have the funds and money is super tight. Not driving it too much so the tires won't die prematurely. Alignment should be done within the next couple of weeks, and I'll update again. The tires are 235/75r15 Goodyear Wrangler Radials, the website says it's an "all terrain highway tire" and I love the look and performance of the tires. Super quiet, quiter than the General Grabber HT I had on there. Tread is fairly aggressive. They do good in the mud considering I've got a one wheel wonder lol.




____________________
knowing when to quit is wisdom, being able to quit is courage.

1983 Ranger, reluctantly taking apart. Donor/project vehicle.

1997 Ranger Ex Cab Manual 4.0 2wd, dead on arrival. Hopefully reviving for a daily driver.

1984 Ranger, currently in ≈861 pieces. She’s donating what’s salvageable.
Back To Top PM Quote Reply

 Posted: Thu Oct 25th, 2018 11:15 pm
PM Quote Reply
9th Post
Eddie Money
Member


Joined: Mon Nov 13th, 2017
Posts: 1587
Name:
Occupation:
Interests: Burt gummer life ...
Status:
Offline
Reputation:
Reputation Points: 1587
Everybody's budget is different and nothing to be ashamed of. I like the tires. If you get the alignment done soon the tires should be fine. Keep them rotated and balanced and they will even out if there is any issues. Mine are from discount tire so my warranty requires a rotation every 5k. They rebalance and rotate for free. I love it.

I had a 99 ranger sport 4x4 with toyos. I'd have had to pay to rebalance and rotate and I couldnt afford that back then. It drove like a clown car with offset wheel centers. I never liked toyos after that. All 4 tires had multiple busted radials. I keep my tires balanced and rotated now too. Lol



____________________












I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger
Back To Top PM Quote Reply

 Posted: Sun Oct 28th, 2018 10:50 am
PM Quote Reply
10th Post
JAMMAN

Owns A Torsen


Joined: Mon Sep 18th, 2017
Location: Grove City, Ohio USA
Posts: 6436
Name: Jim ...
Occupation: 5 axis cnc programmer ...
Interests: RBV's ...
Status:
Offline
Reputation:
Reputation Points: 6436
This week I have a similar budget!

This happened first set of tires on my dodge. Actually I tried to have it aligned and they said the ball joint was bad, I couldn't afford the front end parts.

A year later when I could LOL the fronts were already down to threads so try to drive it as little as you can. But if it takes wasting some tires and it is more feasible to put it off... it happens!



____________________
00 XLT 4WD RCSB 3.GO! Jalapeño
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.
Back To Top PM Quote Reply
