2000 v8 swap - 8 Cylinder Gasoline - Ranger Engine Tech

151^st Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Tsquare wrote:
I had to go back a few post to see which heads you used. I know you used Trick Flo's Twisted Wedge heads but with Dart heads it is best to get their brand of valve covers. The mating surface was a bit wider so stock and most other branded aftermarket valve covers didn't fit without modifications. Is this the same case for the Twisted Wedge heads?

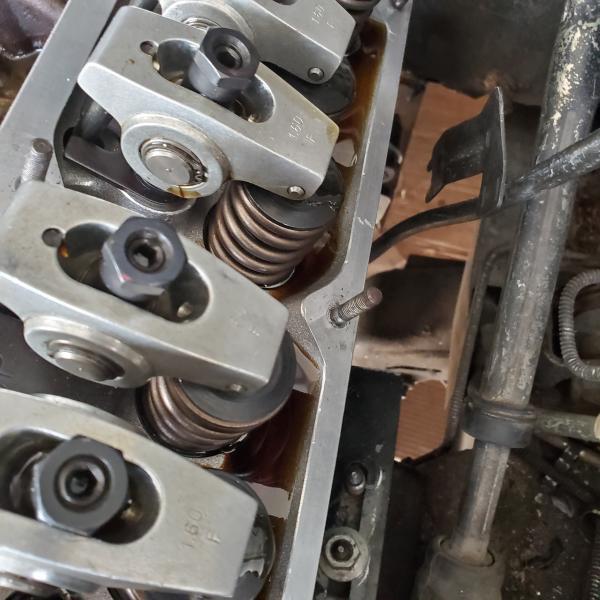

No, they seem to be ok as far as valve cover gasket and fitment. the problem was the center was made with an indentation..thats what was hitting the polly locks. Im gonna give these a shot..if they leak I'll get a set of foxbody covers and take the baffle out..i know those work.
I'm trying to keep it stock looking..as far as explore stuff.

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Mon Sep 21st, 2020 07:57 pm

152^nd Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Put the transmission in today when I got off work.. checking that out making sure all is good. Seems to be sitting perfect.

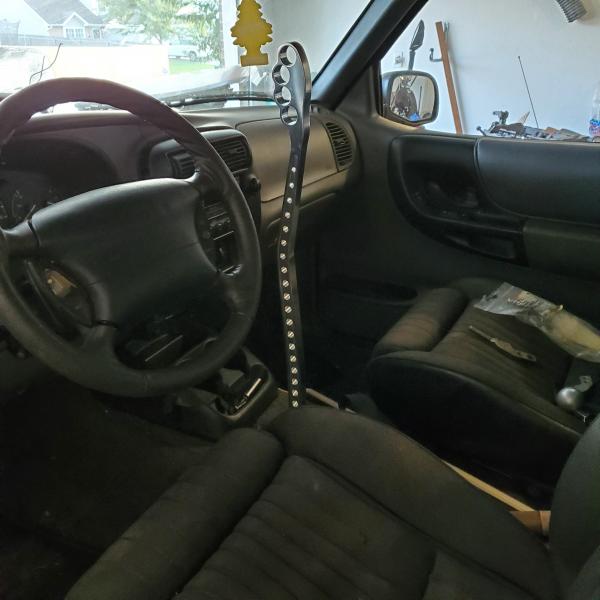

So I decided to bolt my ape shifter on to see what its gonna look and.feel like. Its bolted to a pro tower shifter so the throw is perfect and short!

There is a reason I put this in here.. to keep from blowing my chit up power shifting it..ðŸ¤£ðŸ¤£ðŸ¤£

Last edited on Mon Sep 21st, 2020 07:58 pm by Junglejoe

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked - 2 likes

410customs, Eddie Money

Posted: Tue Sep 22nd, 2020 11:39 am

153^rd Post

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

cool ape hanger shifter!!

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked - 1 like likes

Junglejoe

Posted: Sat Sep 26th, 2020 06:10 pm

154^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

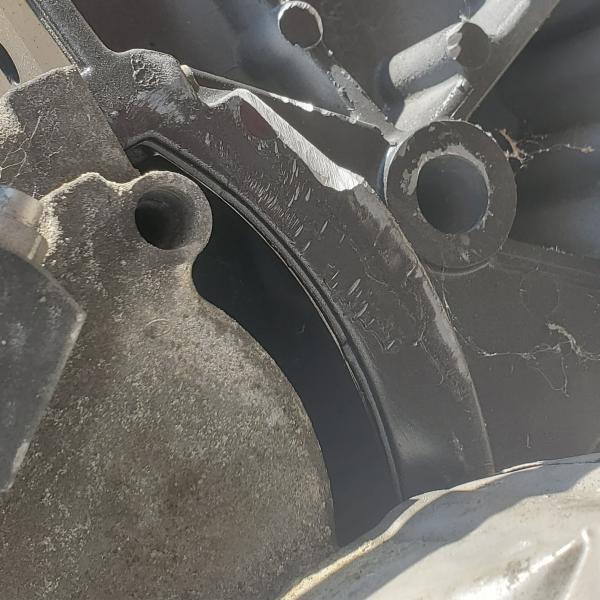

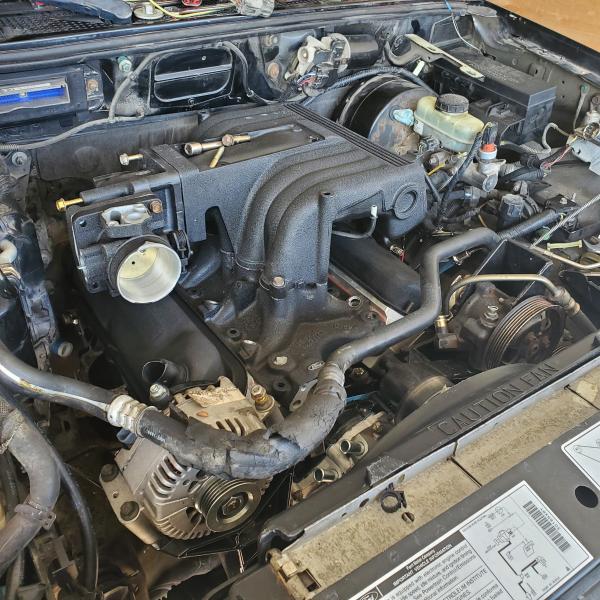

Ok fellas.. mocked up the FEAD..had to notch the back side of the ac compressor bracket. Not sure why, I suppose the twisted wedge heads have a smaller mounting surface. The valve cover wouldn't go on.. no biggie. It fits good now..

Pretty much how its going sit finally, minor adjustments may be needed.

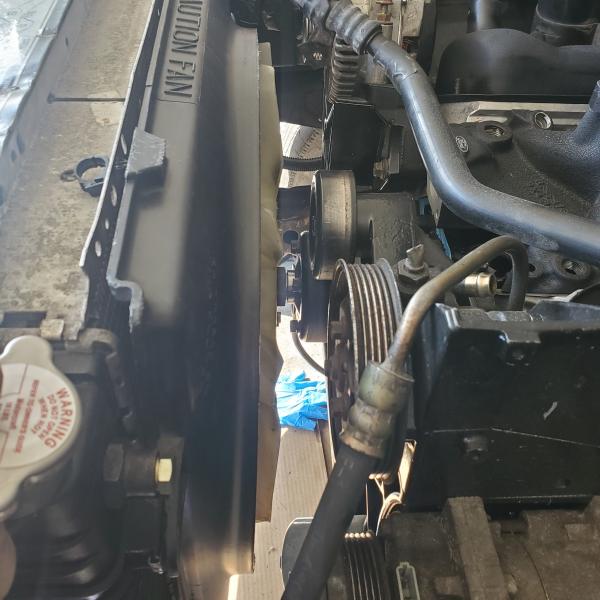

Pic below.... trying to figure how this all hooks up/mounts. That long bolt is to long. I had everyrhing bagged and tagged.. but 2 years in the making..bags got torn and ink faded off....

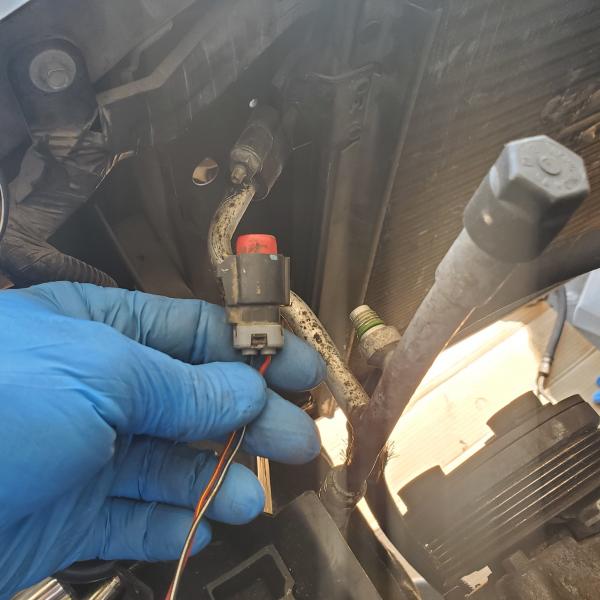

Now one more thing for now... the ac low pressure switch plug.. where did it go? lol

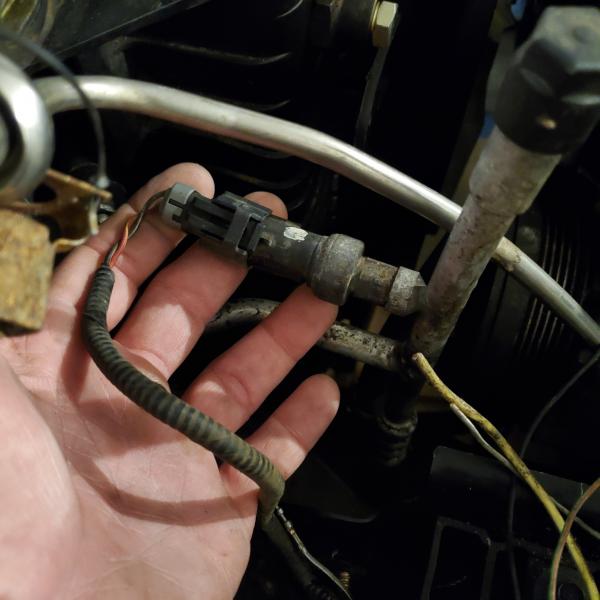

This is the explorer line with the ranger condenser still in thw truck.. BUT.. i have no connection now...

Sorry..I forgot I took the switch out of the line..oops!

Last edited on Sat Sep 26th, 2020 06:56 pm by Junglejoe

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked - 1 like likes

Eddie Money

Posted: Sat Sep 26th, 2020 06:11 pm

155^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

ohh.. the 3.0 v6 power steering hose.. thats a NO GO..
Got one for the explorer.

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Sat Sep 26th, 2020 07:45 pm

156^th Post

JAMMAN

Owns A Torsen

Joined: Mon Sep 18th, 2017

Location: Grove City, Ohio USA

Posts: 6436

Name: Jim ...

Occupation: 5 axis cnc programmer ...

Interests: RBV's ...

Status:

Offline

Reputation:

Reputation Points: 6436

Finally a definitive answer on a question I have seen asked MULTIPLE times. That darned high pressure steering hose, let it be written, if the hose is from a 3.0 it does not work. Really cool.

____________________
00 XLT 4WD RCSB 3.GO! JalapeÃ±o
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.

Already liked - 1 like likes

Junglejoe

Posted: Sat Sep 26th, 2020 09:29 pm

157^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Yeah man.. that is a definitely no.. not even close

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked - 1 like likes

410customs

Posted: Sun Sep 27th, 2020 11:28 am

158^th Post

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

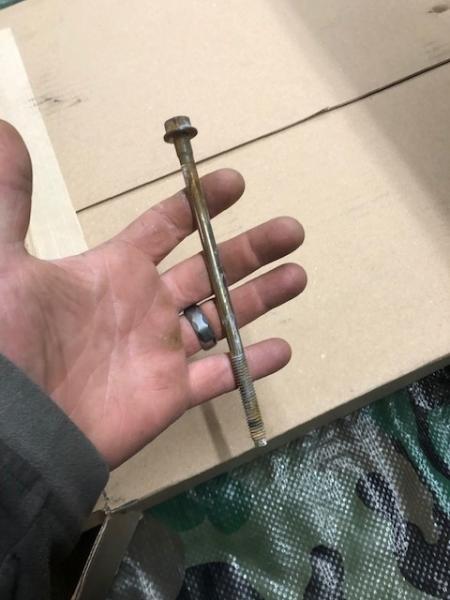

long bolt looks like it might be for the intake plenum not the elbow??
could you have gotten your bolts mixed up?

2000 Ranger 300K v8 is happening now maybe these threads can help each other :)

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked - 1 like likes

Junglejoe

Posted: Mon Sep 28th, 2020 08:58 am

159^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

410customs wrote:
long bolt looks like it might be for the intake plenum not the elbow??
could you have gotten your bolts mixed up?

2000 Ranger 300K v8 is happening now maybe these threads can help each other :)
I'm not sure J, but a trip o the junkyard will get me the right ones for sure!..lol

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Mon Sep 28th, 2020 10:37 am

160^th Post

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

I happened to have a 99 merc intake in my hands yesterday so I took the elbow bolt out to measure it for you
It is just over 6.25" long

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked - 2 likes

Junglejoe, Eddie Money

Posted: Mon Sep 28th, 2020 05:11 pm

161^st Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Thanks J.. and just to clarify..there was no spacer between the elbow and intake?

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Tue Sep 29th, 2020 09:26 am

162^nd Post

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

no spacer just a gasket

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked - 1 like likes

Junglejoe

Posted: Sun Oct 4th, 2020 06:39 pm

163^rd Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

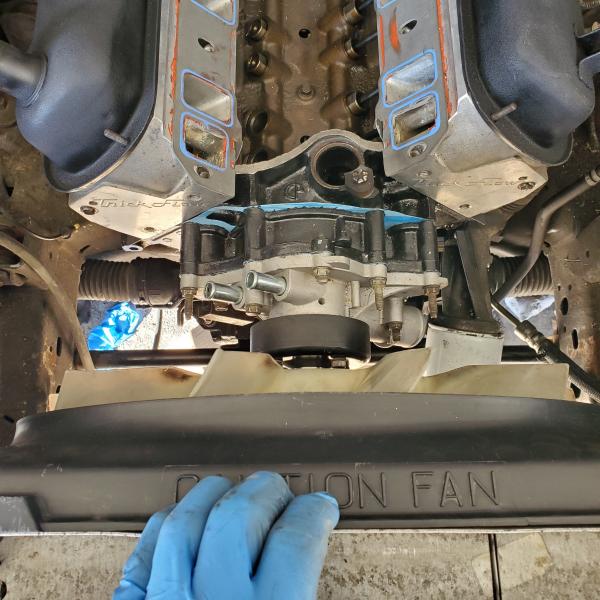

Ok.. so.I didn't like how the engine set in here... I moved more forward.. wutchall think about this ...
First two is how it was...

Next two is how much I moved it forward.. is this better or to far forward? Shroud and radiator is mounted where it will be..

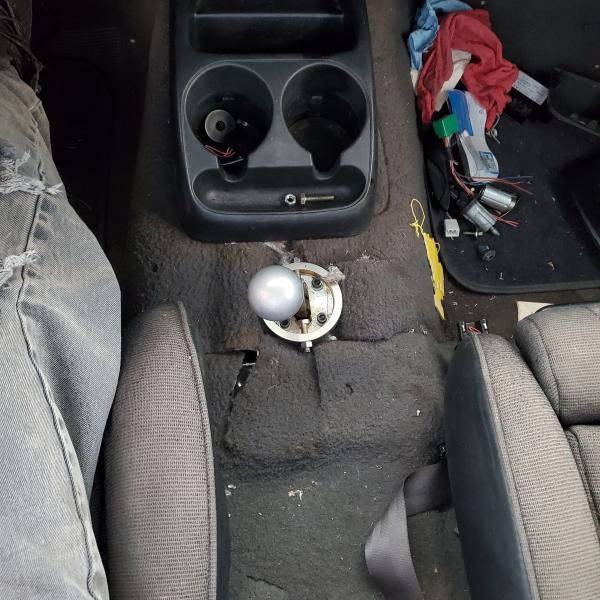

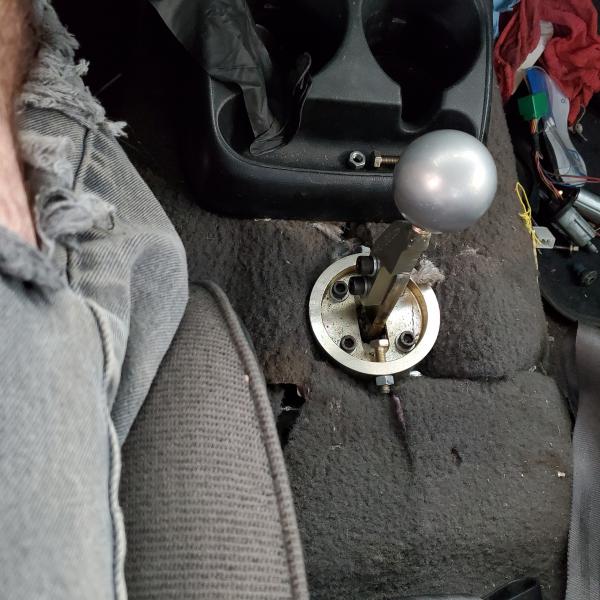

Shifter sits here now...

Ist gear...

5th gear..

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Sun Oct 4th, 2020 06:43 pm

164^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Ricks Rangers crossmember... have to drill new holes.. but it doesn't hang down below thw frame like the stock one does..

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Mon Oct 5th, 2020 09:56 am

165^th Post

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

well done! it will be awesome with the engine that far forward and the fan fully in the shroud
I like that crossmember, is it strong enough? Any more pics of it?

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked - 1 like likes

Junglejoe

Posted: Mon Oct 5th, 2020 10:04 am

166^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Get you some today J.
As far as strength.. yes. I believe it.will hold up. Its a solid piece for sure.

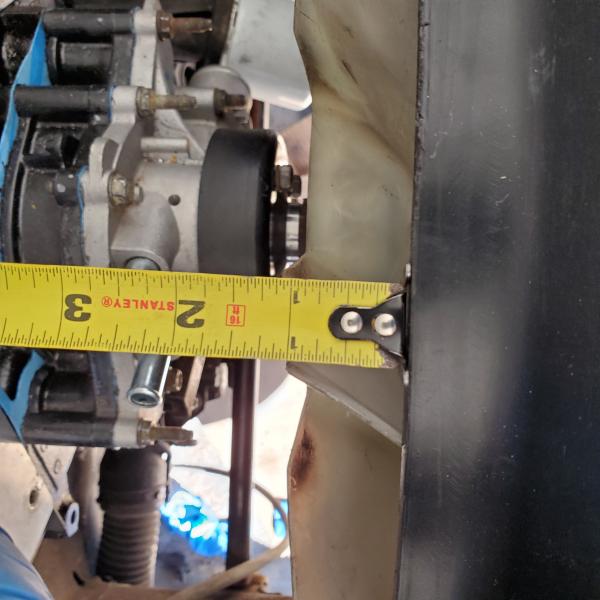

So on the fan, you think thats ok where I put it..further in the shroud?
May go to the junkyard and look at a stock setup and see where it is..

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Tue Oct 6th, 2020 06:36 pm

167^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

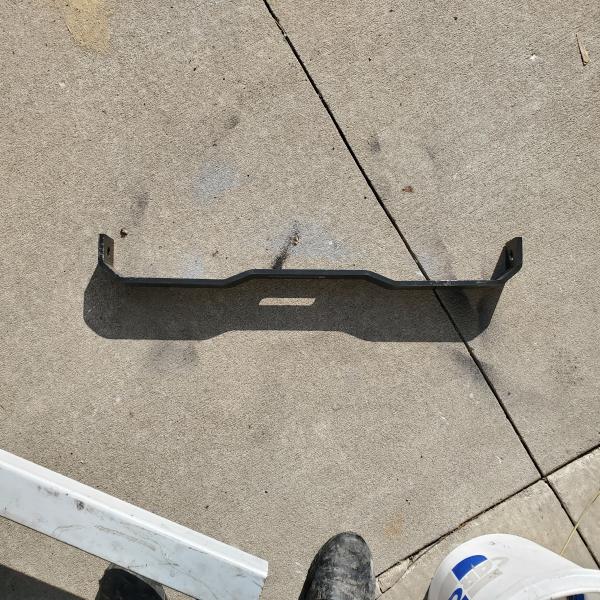

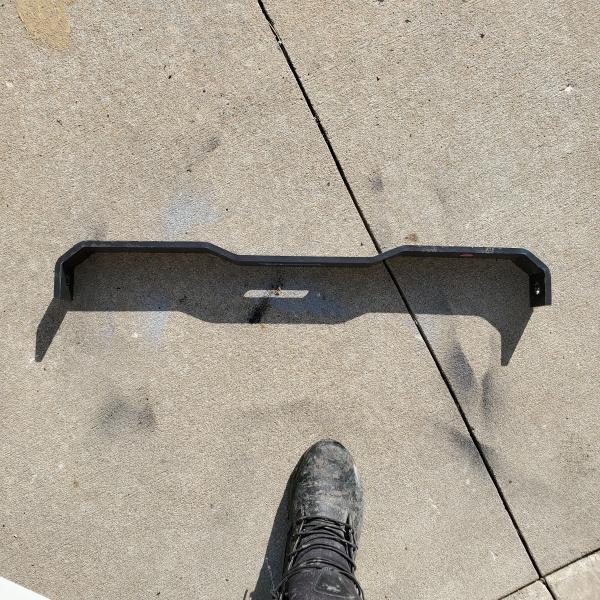

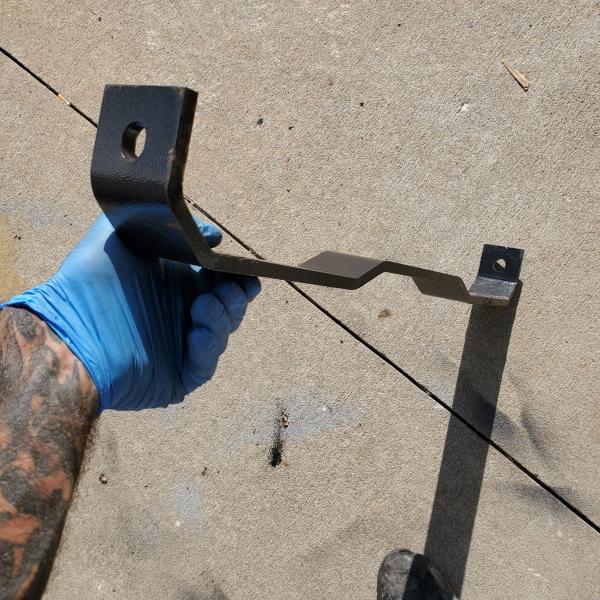

Here is a couple pics of the Ricks Rangers crossmember...

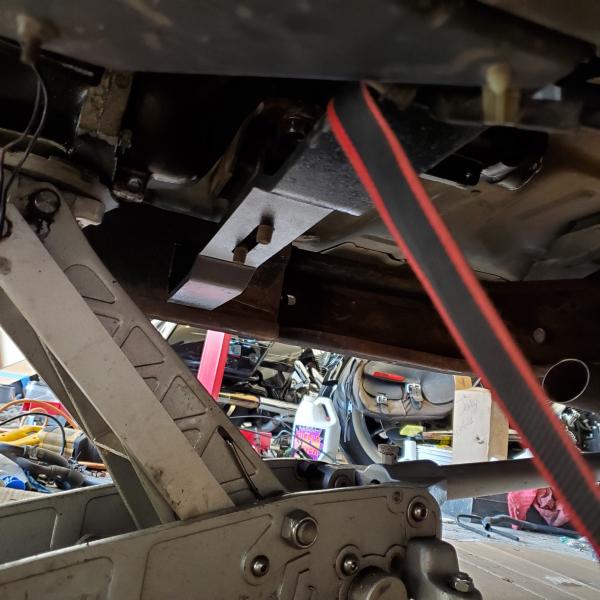

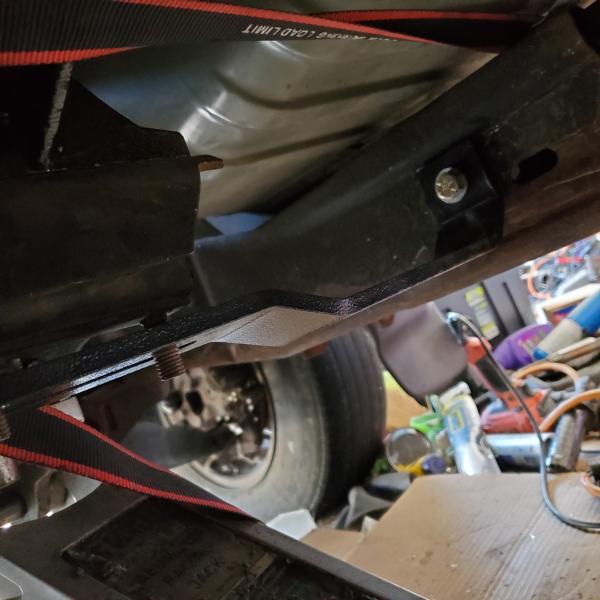

Couple of under the truck... had to drill two new holes for it... I may drill one more on each side, smaller ones..for extra insurance. Ill be lauching on slicks every blue moon..ðŸŽ¬ðŸðŸ˜Žâ˜•

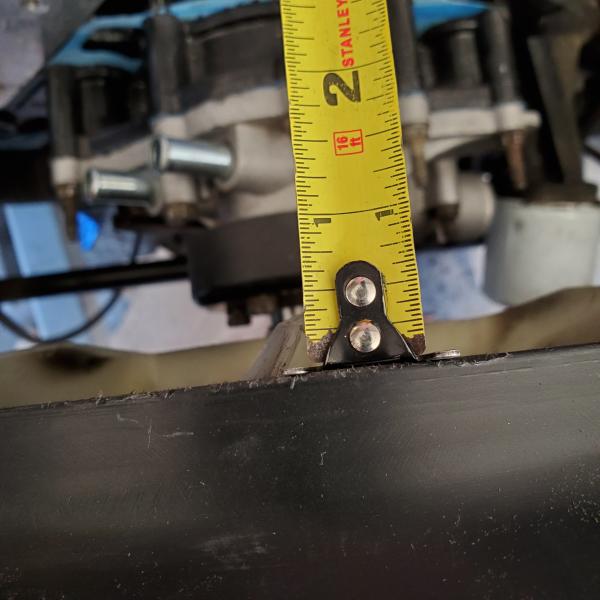

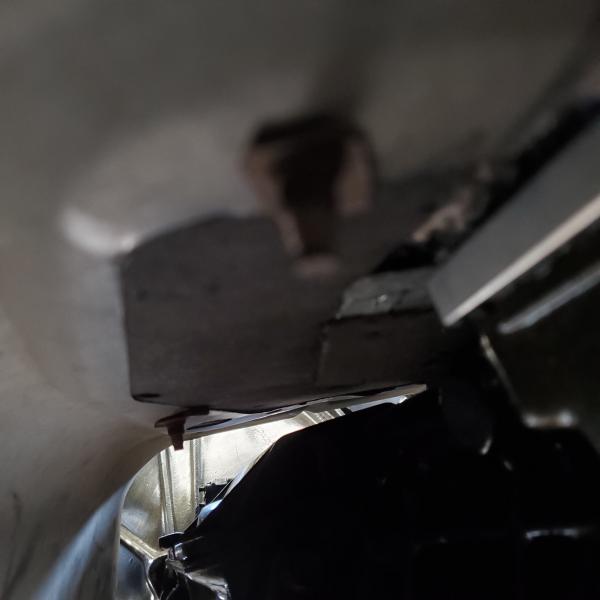

Seem to have plenty of space between the floor pan and top of the transmission... ? Hopefully it doesn't move around that much.. about an inch or so gap.

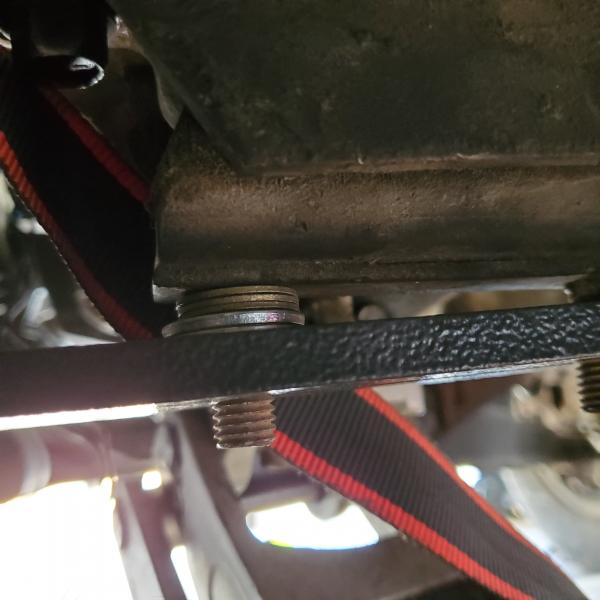

Im adding spacers (high tech remember!lol) to get the engine sitting as level as I can. Maybe I'm going to far, I dont know..??

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked - 1 like likes

Eddie Money

Posted: Tue Oct 6th, 2020 06:49 pm

168^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

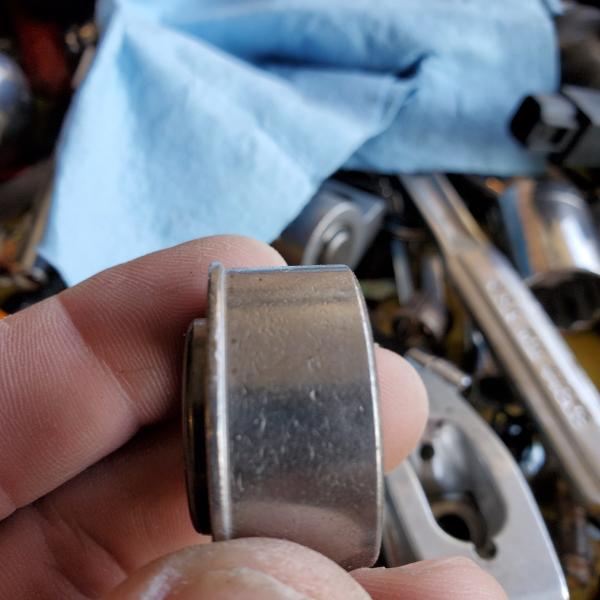

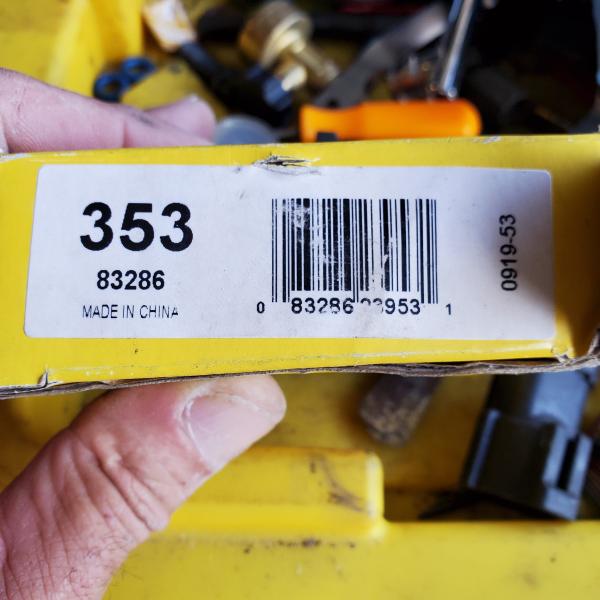

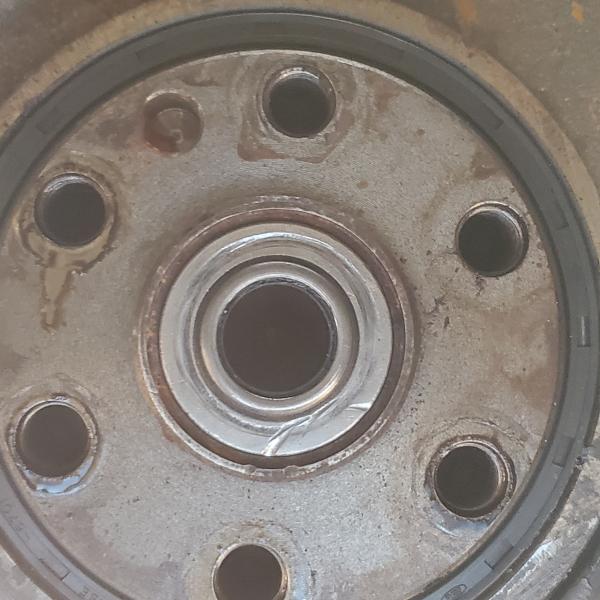

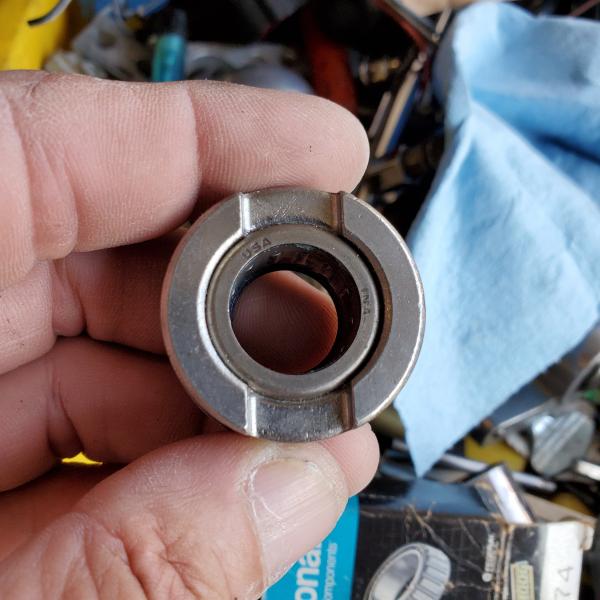

New pilot bearing and flywheel..
Man, its been 20 years since I've messed with the 5.0 stuff and t5.. when did they come.out with this???

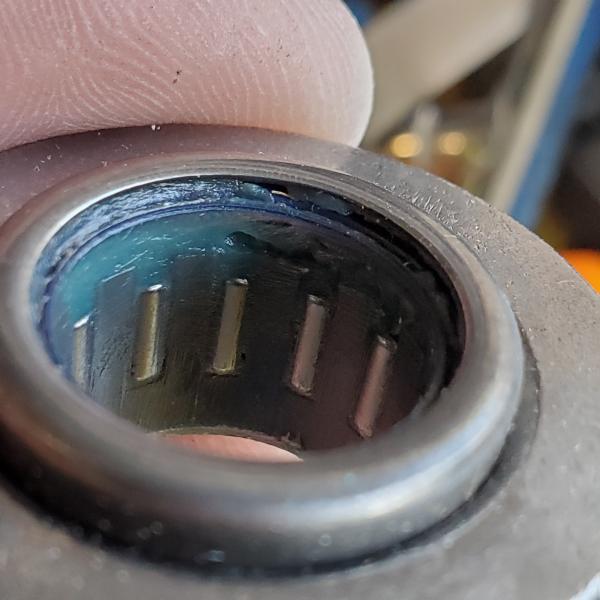

question is... I "assume" the lip faces out??

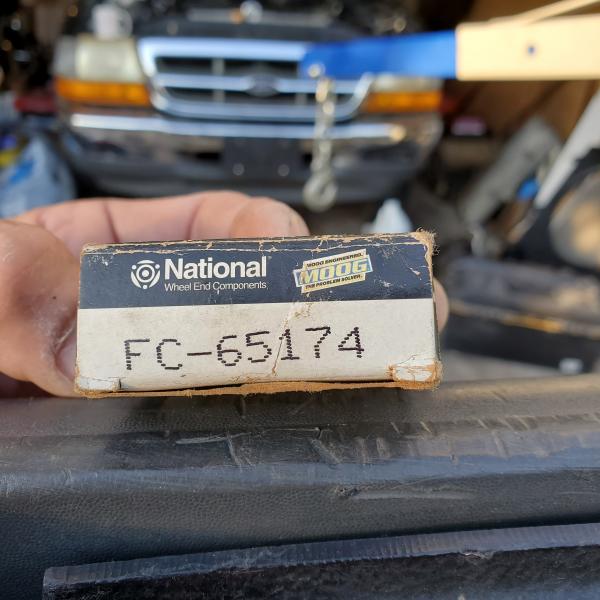

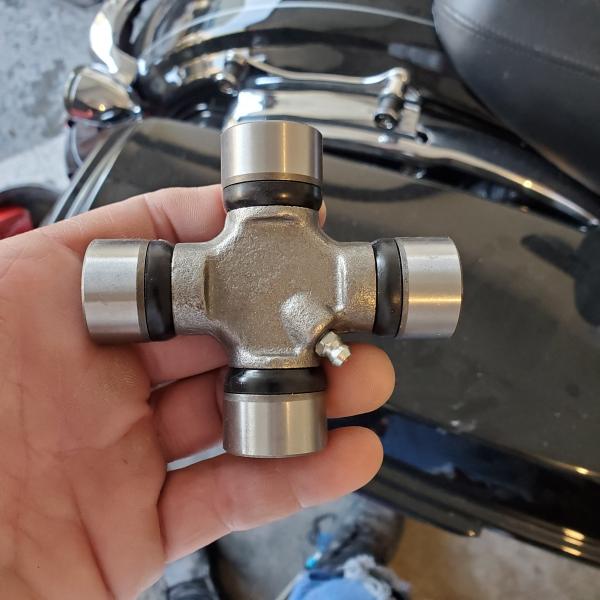

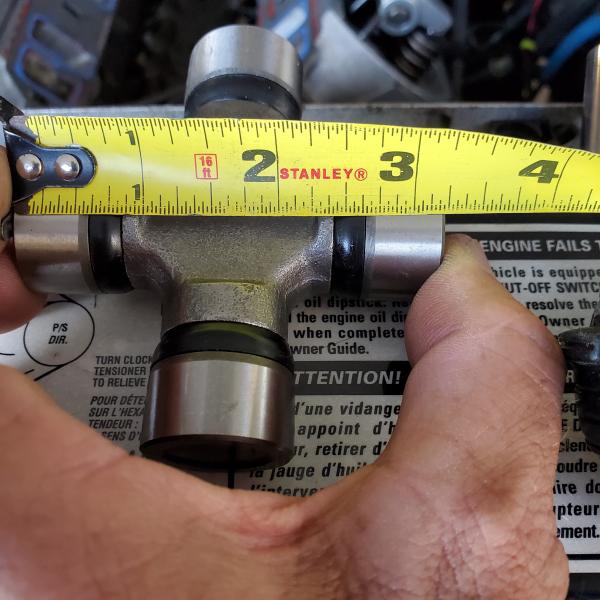

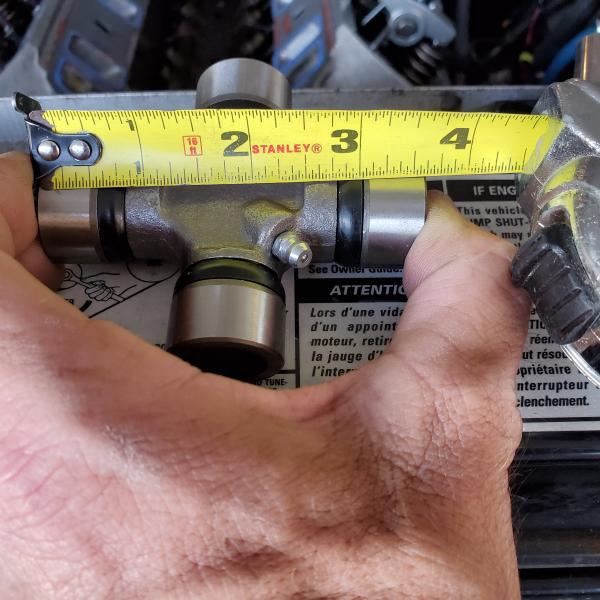

This u-joint is suppose to allow me to use the ranger drive shaft and a fox body t5 yoke..

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Tue Oct 6th, 2020 07:10 pm

169^th Post

Tsquare
Member

Joined: Fri Nov 10th, 2017

Location: Suwanee, Georgia USA

Posts: 1540

Name:

Occupation: Controlled Insanity ...

Interests:

Status:

Offline

Reputation:

Reputation Points: 1540

Junglejoe wrote:
New pilot bearing and flywheel..
Man, its been 20 years since I've messed with the 5.0 stuff and t5.. when did they come.out with this???

question is... I "assume" the lip faces out??

This u-joint is suppose to allow me to use the ranger drive shaft and a fox body t5 yoke..

I did that with a 78 F100 Ranger and a F250 rear that had the bolt pattern changed to the F100. There may be some harmonic issues at the higher RPMs. This was on a 4x4 w/ 373's.

Last edited on Tue Oct 6th, 2020 07:12 pm by Tsquare

____________________
Tony
NE ATL
'04 XLT regular cab 3.slo stepside
Semi retirement

Already liked -

Posted: Tue Oct 6th, 2020 07:14 pm

170^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Hmmmm... not what I like to hear. I guess if it does, I'll get a foxbody driveshaft and have it cut down..

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Thu Oct 8th, 2020 08:03 am

171^st Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

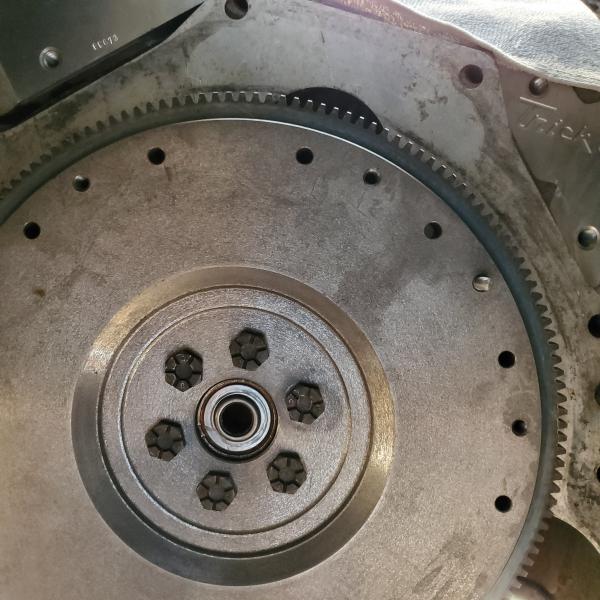

Got the flywheel and pilot bearing installed and only got a couple cuts from the flywheel holding it with a screwdriver . Wedged the screwdriver between the mounting studd on the block and the teeth on the flywheel..lol
Yep..itsa beech doing it that way!

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Thu Oct 8th, 2020 09:25 am

172^nd Post

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

I have 1/2 spacer under my engine plates to raise my engine up
I built a custom trans mount for my setup, there is nothing wrong with leveling the engine in the bay/truck, just watch your U joint angles at ride height (not too extreme)
Most of the conversions we do here use the hybrid U joints, one at the front diff input and one at the rear axle input....never had a balance/vibration issue with those
Precision or Spicer U joints I prefer without the grease zerk
That trans crossmember looks pretty stout
The fan is sitting perfectly in that shroud!

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked - 1 like likes

Junglejoe

Posted: Thu Oct 8th, 2020 09:26 am

173^rd Post

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked - 1 like likes

Junglejoe

Posted: Thu Oct 8th, 2020 10:21 am

174^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Yeah J.. Ive seen the bread trick although never tried it.

When you do your swaps, you raise the engine 1/2 inch you say... so I "assume" you had to raise the shroud and or radiator 1/2 in also?
I have bigger gap at the bottom of my radiator than at the top.. do you think that will be an issue cooling?

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Thu Oct 8th, 2020 05:35 pm

175^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

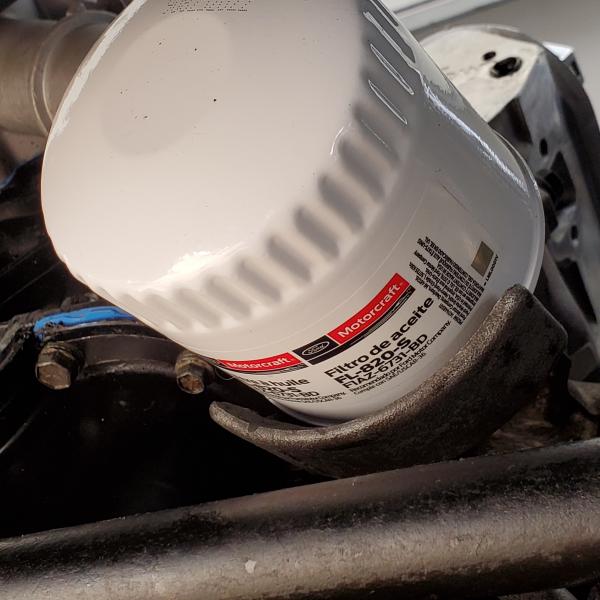

New oil filter..

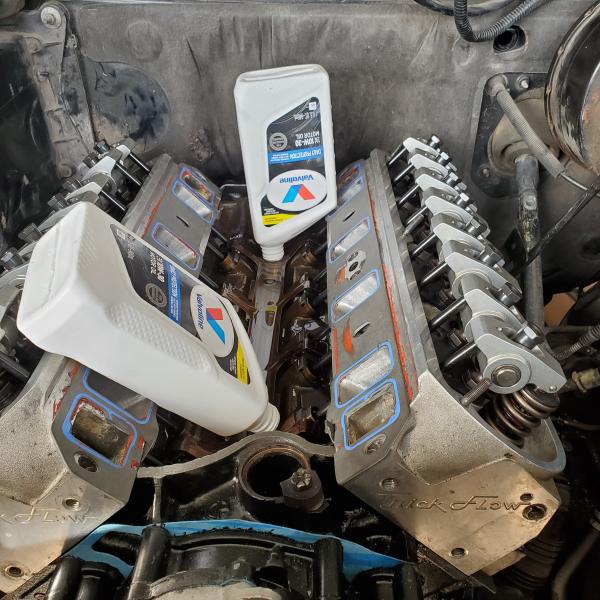

Valvoline 10-30...

Oil system is finally primed!

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -
