 My 2011 Ranger came with a spray in bedliner.  The screws that hold the panel / cover on the back of the tailgate are very large raised mushroom head screws which are NOT original equipment.  Refer to the attached photo(s).  There are eight of them.  The only thing that I can think of is that they were intended to be used with a set of loading ramps that were not included with my truck.  The loading ramps would have a "keyslot" that would allow the "hole" part of the "keyslot" to drop over the heads and then slide to the bottom of the "slot" part of the "keyslot" and then be locked in place.  I have asked at a couple of dealers and none have ever seen these kinds of screws.  Wondering if anyone can confirm that these screws were part of a loading ramp system and if so what brand / model?  If not what is their purpose?  Thanks in advance for your help!

Attachment: IMG_2327.jpeg (Downloaded 16 times)
Back To Top PM Quote Reply

 Posted: Fri Jun 12th, 2020 11:29 am
PM Quote Reply
2nd Post
Scrambler82
Old Bastard !


Joined: Fri Dec 22nd, 2017
Location: California USA
Posts: 2108
Name: Grev B ...
Occupation: Quality Assurance Engineer ...
Interests: Rangers, Photography, Metal Bending ...
Status:
Offline
Reputation:
Reputation Points: 2108
Member's Gallery
 I for one have never seen screws like that on a Ranger.
Although, they look like some sort of Rack or Box System, that slides in place.

As to being used for a Ramp System, it would have to be a very light weight system for something like Bicycles because the tailgate sheet metal is not that strong.

It will be interesting to see what people have to say !

Ltr



____________________
Ltr,
2003 EDGE, Std Cab, Steppie, E4 Red, 5sp, 4x
5" SuperLift, 33" x 12.50 x 15"
Hurst Shifter
Mod'd Backrack to fit Steppie
Front and Rear Bumpers by Custom 4x4 Fabrication, OK; now Mike's Welding and Fabrication.
Working on more Mods, just need more time, longer days would work !
Back To Top PM Quote Reply

 Posted: Fri Jun 12th, 2020 01:12 pm
PM Quote Reply
3rd Post
JAMMAN

Owns A Torsen


Joined: Mon Sep 18th, 2017
Location: Grove City, Ohio USA
Posts: 6436
Name: Jim ...
Occupation: 5 axis cnc programmer ...
Interests: RBV's ...
Status:
Offline
Reputation:
Reputation Points: 6436
Member's Gallery
 I have, those are meant for the plastic bedliners that stand off a little. Problem is there are several different sizes they used during the years. Yours being spray in takes the stock bolts which will be a torx button head. I can snap a pic of one here in a minute I have an inordinate amount of spare parts laying around.



____________________
00 XLT 4WD RCSB 3.GO! Jalapeño
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.
Back To Top PM Quote Reply

 Posted: Fri Jun 12th, 2020 01:24 pm
PM Quote Reply
4th Post
JAMMAN

Owns A Torsen


Joined: Mon Sep 18th, 2017
Location: Grove City, Ohio USA
Posts: 6436
Name: Jim ...
Occupation: 5 axis cnc programmer ...
Interests: RBV's ...
Status:
Offline
Reputation:
Reputation Points: 6436
Member's Gallery

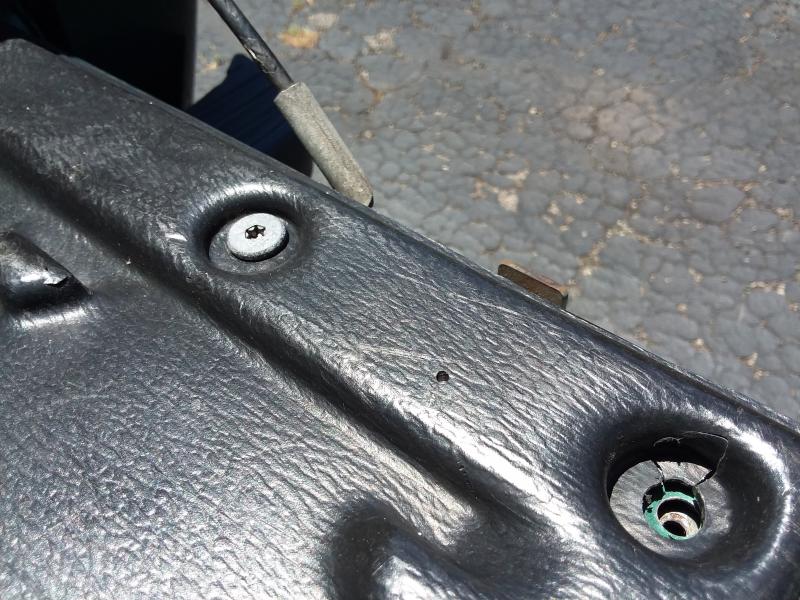

 The screws you have are these and are meant to hold plastic bedliner type tailgate covers on:

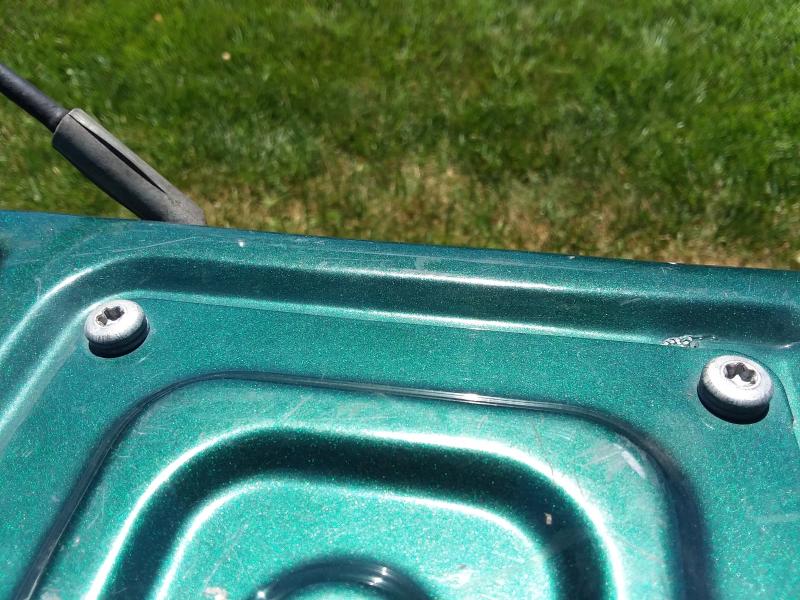

The ones you need look a little like this:

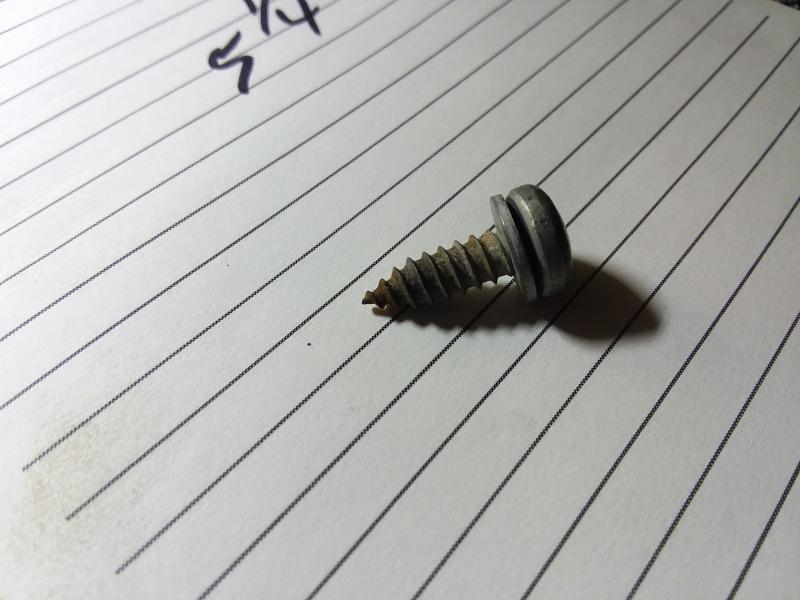

The problem is there were a couple different thread patterns. Take one out, look at the bottom. If it looks like this:




THEN you can use any 1/4 diameter rounded head screw. ****HINT****

This is the exact same size screw used for attaching license plates to plastic nuts. I would go get some phillips head license plate bolts and use them. The phillips head style is rounded corners AND are available in stainless steel which looks cool against the black spray bedliner.



____________________
00 XLT 4WD RCSB 3.GO! Jalapeño
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.
Back To Top PM Quote Reply

 Posted: Fri Jun 12th, 2020 03:15 pm
PM Quote Reply
5th Post
cmfrdcun
Member


Joined: Fri Feb 7th, 2020
Location: Wisconsin USA
Posts: 5
Name:
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 5
Member's Gallery
 That makes sense from a functional standpoint but that would imply that originally there was a plastic bedliner and then it was removed and replaced with the spray-on bedliner.  I don't recall seeing any other such mushroom head screws elsewere in the bed but I will have a look.  Thanks!
Back To Top PM Quote Reply

 Posted: Fri Jun 12th, 2020 08:08 pm
PM Quote Reply
6th Post
VelociRanger
I’ll probably do it tomorrow


Joined: Mon Jun 25th, 2018
Location: Dallas, Texas USA
Posts: 721
Name: Justin ...
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 721
Member's Gallery
 Scrambler82 wrote:
As to being used for a Ramp System, it would have to be a very light weight system for something like Bicycles because the tailgate sheet metal is not that strong.
When I hauled that last load of brick I put every bit of it on the tailgate so I wouldn't have to keep crawling in the bed....not a scratch or dent to be found



____________________
knowing when to quit is wisdom, being able to quit is courage.

1983 Ranger, reluctantly taking apart. Donor/project vehicle.

1997 Ranger Ex Cab Manual 4.0 2wd, dead on arrival. Hopefully reviving for a daily driver.

1984 Ranger, currently in ≈861 pieces. She’s donating what’s salvageable.
Back To Top PM Quote Reply

 Posted: Fri Jun 12th, 2020 09:37 pm
PM Quote Reply
7th Post
JAMMAN

Owns A Torsen


Joined: Mon Sep 18th, 2017
Location: Grove City, Ohio USA
Posts: 6436
Name: Jim ...
Occupation: 5 axis cnc programmer ...
Interests: RBV's ...
Status:
Offline
Reputation:
Reputation Points: 6436
Member's Gallery
 cmfrdcun wrote:
That makes sense from a functional standpoint but that would imply that originally there was a plastic bedliner and then it was removed and replaced with the spray-on bedliner.  I don't recall seeing any other such mushroom head screws elsewere in the bed but I will have a look.  Thanks!
The screws were only used for the tailgate and replaced the ones that hold the access panel to the tail gate. They just remove the screws you needed and replaced them with the shoulder bolts.



____________________
00 XLT 4WD RCSB 3.GO! Jalapeño
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.
