Painting frames, calipers, rear ends       #: 1801
 Moderated by: NoPower, Mike69, MaDMaXX,
New Topic Reply
 Rate Topic
 Posted: Sat Oct 26th, 2019 08:19 pm
PM Quote Reply
1st Post
JAMMAN

Owns A Torsen


Joined: Mon Sep 18th, 2017
Location: Grove City, Ohio USA
Posts: 6436
Name: Jim ...
Occupation: 5 axis cnc programmer ...
Interests: RBV's ...
Status:
Offline
Reputation:
Reputation Points: 6436
I'll be pulling the bed off my Jalape±o project this winter for several reasons:

1. Running a new wiring harness for backup camera, tail lights, bed accessory lights, switch for tailgate, extras for things I haven't thought of yet.

2. Close examination of spare tire mechanism, fuel tank, brake lines, springs and shackles.

3. Fixing a dent in the bed.

But while I'm under there I'll power wash the frame (it is in incredibly good shape) and paint it. I would like to paint the front calipers black and the rears also (I'm prepping an expo rear end) AND the rear axle housing too.

What is the paint or process you have used in the past and what were the results? I have had a gallon of Magnet Paint UCP99-01 in my e-bay cart for over a year now, some say por-15 some like magnet but I have never used anything but a rattle can so far.



____________________
00 XLT 4WD RCSB 3.GO! Jalapeño
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.
Back To Top PM Quote Reply

 Posted: Sat Oct 26th, 2019 09:13 pm
PM Quote Reply
2nd Post
Arthur
Member


Joined: Sat Apr 13th, 2019
Location: Canada
Posts: 117
Name:
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 117
I don't think you can go wrong with either por15 or magnetpaint.

But, I used Rustoleum rattlecans after wirewheeling and degreasing and after 2 years and 2 quebec winters it has held up great.



____________________
2008 XLT 4x4 4.0 5Spd. Pretty much stock except 33's and Bilsteins: A bit broken for now.
2007 FX4 Level II auto: new project!
Back To Top PM Quote Reply

 Posted: Sun Oct 27th, 2019 08:58 am
PM Quote Reply
3rd Post
4.0power
Member


Joined: Sun Nov 5th, 2017
Location: USA
Posts: 496
Name:
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 496
I've used oil based paint and had great luck with it so far.



____________________
2002 xlt 4.0 5r55e 4x4 4.10 rear disc brake swap from sn95 **currently swapping in a 5.0***
2003 2.3 2wd 5 speed single cab dropped 9 inches looks like crap rides like crap but for some reason it’s cool to me
2004 gmc 2500hd 6.6 diesel LLY
1989 foxbody 347 stroker t5 trans
Back To Top PM Quote Reply

 Posted: Sun Oct 27th, 2019 10:47 am
PM Quote Reply
4th Post
410customs

Idahome


Joined: Wed May 2nd, 2018
Location: Panhandle, Idaho USA
Posts: 2165
Name: Jamie ...
Occupation: Elevator Design Worlds Tallest Buildings ...
Interests: Ranger Based Vehicles and OFFROAD ...
Status:
Offline
Reputation:
Reputation Points: 2165
FORGET POR-15
Expensive
no UV protection

use Chassis Saver from Magnet paints!

WAAAAAAAAY better

Do not get it in your hair or weeks later you will still have it in your hair.

I have been slathering chassis saver all over my BII for a few months now....rust repair.

POR-15 has no uv protection and turns dull grey in sunlight or exposed to weather like sprinklers, rain water, etc.....
Chassis saver is the shiznit and its CHEAPER same dude who makes Monstaliner makes it
It goes a LONG WAY too half gallon has lasted me through this whole project and I still have 1/4 can left

Whatever you decide follow the directions
Basically for me I remove all rust, remove more rust, remove the rust scale, any hint of rouge, then scuff it up with like 80 grit, clean with soap and water, then final wipe with acetone then apply chassis saver. It calls for two coats min. The stuff dries into like a shiny plastic coating...it is so cool to work with.....

Last edited on Sun Oct 27th, 2019 10:50 am by 410customs



____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks
Back To Top PM Quote Reply

 Posted: Sun Oct 27th, 2019 10:54 am
PM Quote Reply
5th Post
410customs

Idahome


Joined: Wed May 2nd, 2018
Location: Panhandle, Idaho USA
Posts: 2165
Name: Jamie ...
Occupation: Elevator Design Worlds Tallest Buildings ...
Interests: Ranger Based Vehicles and OFFROAD ...
Status:
Offline
Reputation:
Reputation Points: 2165
BII rips the floor pans wide open when you wheel them, I had been meaning to fix these cracks for about 5 years now, the rips in the floor pans had been allowing water to soak the underside of my carpet kit for years...rusting out the floors. So I finally fixed it.

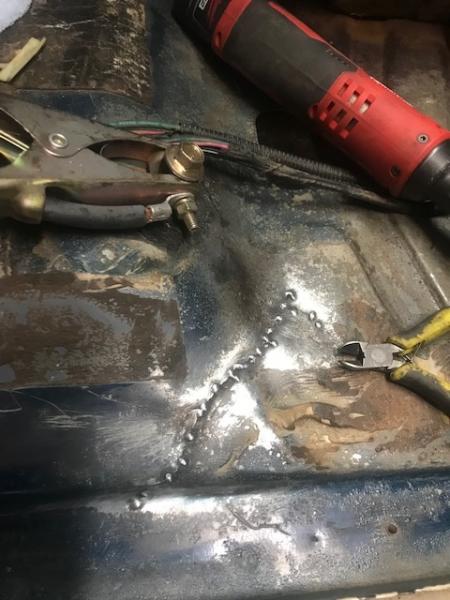

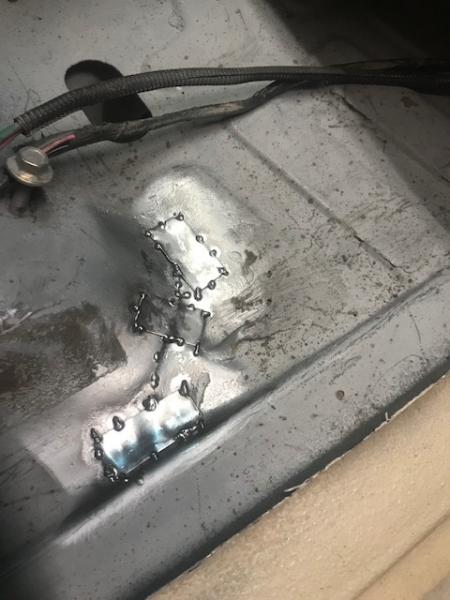

Before during after:




I use weld through primer on all parts, the final three coats of Chassis saver on top and underneath... and finally rust stopping black paint on the top

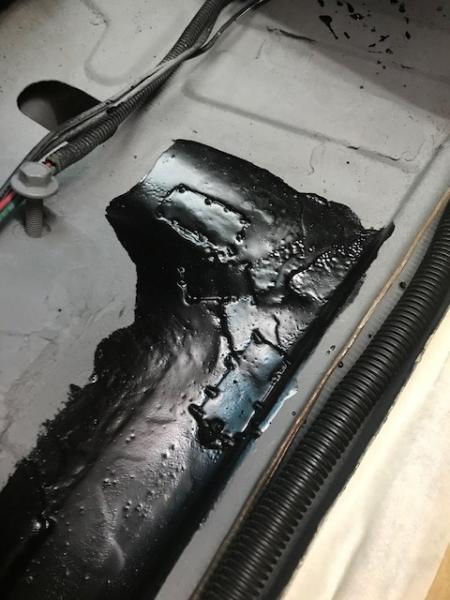

Chassis saver after two coats:


Stuff is awesome, like a shield for metal

I am using gloss black I believe? I have had the can for like 3 years before I finally got to use it
I have seen it used on frames and suspension parts and it looks awesome when done
He makes colors now too
https://www.shop.monstaliner.com/Chassis-Saver-Rust-Preventive-Paint_c4.htm

Last edited on Sun Oct 27th, 2019 01:09 pm by 410customs



____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks
Back To Top PM Quote Reply

 Posted: Sun Oct 27th, 2019 08:54 pm
PM Quote Reply
6th Post
JAMMAN

Owns A Torsen


Joined: Mon Sep 18th, 2017
Location: Grove City, Ohio USA
Posts: 6436
Name: Jim ...
Occupation: 5 axis cnc programmer ...
Interests: RBV's ...
Status:
Offline
Reputation:
Reputation Points: 6436
Awesome, decision made :)



____________________
00 XLT 4WD RCSB 3.GO! Jalapeño
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.
Back To Top PM Quote Reply

 Posted: Mon Oct 28th, 2019 09:45 am
PM Quote Reply
7th Post
410customs

Idahome


Joined: Wed May 2nd, 2018
Location: Panhandle, Idaho USA
Posts: 2165
Name: Jamie ...
Occupation: Elevator Design Worlds Tallest Buildings ...
Interests: Ranger Based Vehicles and OFFROAD ...
Status:
Offline
Reputation:
Reputation Points: 2165
pics don't do it justice!
I am also ordering some more chassis saver and some monstaliner
You will not be dissapointed, stuff is like a plastic shell coating when its dry



____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks
