Uhh...help?       #: 1626
 Moderated by: Mike69, MaDMaXX, Page:    1  2  Next Page Last Page
New Topic Reply
 Rate Topic
 Posted: Fri May 10th, 2019 03:10 pm
PM Quote Reply
1st Post
VelociRanger
I’ll probably do it tomorrow


Joined: Mon Jun 25th, 2018
Location: Dallas, Texas USA
Posts: 721
Name: Justin ...
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 721
Member's Gallery

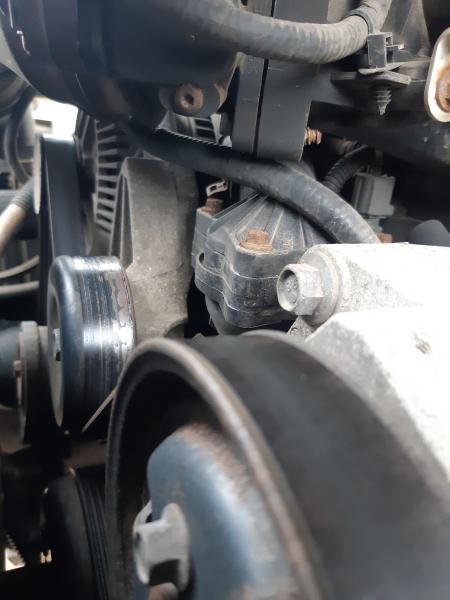

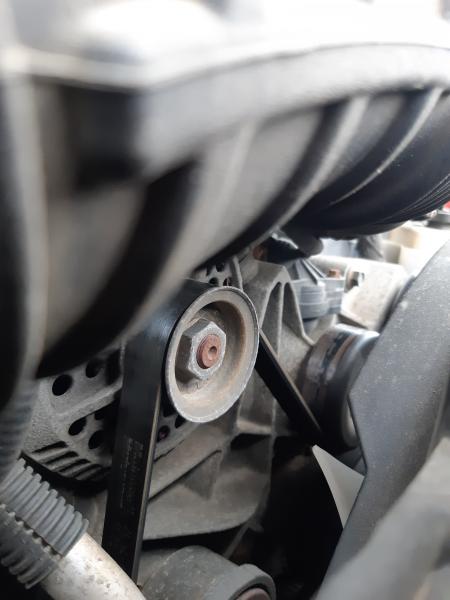

 Soooooo I've been pretty busy lately on my truck, I cleaned the inside and got my battery recharged and also bought an alternator. To fix the original issue that was supposed to be the pcm was actually just a wiring harness under th dash above the clutch pedal that would vibrate loose. I've verified this by driving Lola and when the "thing" would happen I'd just reach under and push the harness in, and it fixed it. Buuuttttt, my alternator was bad so my battery died, so I proceeded to go to autozone to get it charged for free, and pick up an alternator. Weeeeeelllllllll I got the serpentine belt off and I 9nly actually removed the belt from the alternator, it's still on the other pullies. Last night I went to change it, but there seems to be an extra pulley in front of the top alternator bracket that isn't on the belt diagram on my truck, or online. After watching multiple videos of how people dealt with this problem, that pulley is non existant on their trucks. Here's a screen shot I got from a video, and the circle is where the extra pulley is. My "extra pulley" is on that little nub with threads. I failed to realize this when I was removing the belt, but again I only removed the belt from the alternator pulley. Should I remove the pulley altogether, or remove it and put it back on? I'll show a picture of mine later, but here's the screenshot:

Attachment: 20190510_140718.jpg (Downloaded 152 times)



____________________
knowing when to quit is wisdom, being able to quit is courage.

1983 Ranger, reluctantly taking apart. Donor/project vehicle.

1997 Ranger Ex Cab Manual 4.0 2wd, dead on arrival. Hopefully reviving for a daily driver.

1984 Ranger, currently in ≈861 pieces. She’s donating what’s salvageable.
Back To Top PM Quote Reply

 Posted: Fri May 10th, 2019 03:31 pm
PM Quote Reply
2nd Post
JAMMAN

Owns A Torsen


Joined: Mon Sep 18th, 2017
Location: Grove City, Ohio USA
Posts: 6436
Name: Jim ...
Occupation: 5 axis cnc programmer ...
Interests: RBV's ...
Status:
Offline
Reputation:
Reputation Points: 6436
Member's Gallery
 What year and motor was it again? I can't remember everyone's trucks, not even mine!



____________________
00 XLT 4WD RCSB 3.GO! Jalapeño
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.
Back To Top PM Quote Reply

 Posted: Fri May 10th, 2019 05:01 pm
PM Quote Reply
3rd Post
Arthur
Member


Joined: Sat Apr 13th, 2019
Location: Canada
Posts: 117
Name:
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 117
Member's Gallery

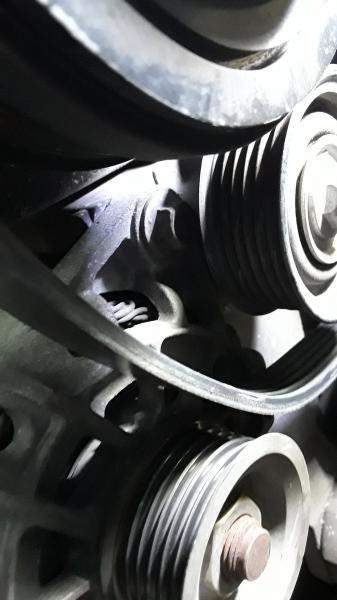

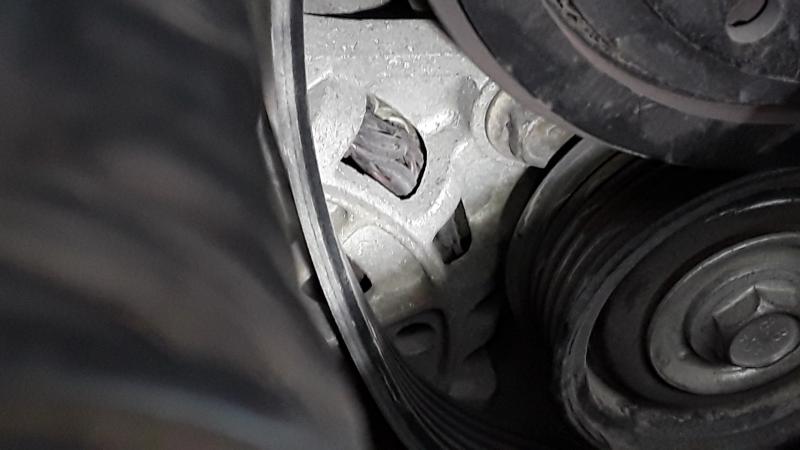

 I hopped outside and snapped 2 quick shots:





I have a '08 too but it's a 4.0
So the pulley is there and in use, belt goes under.
It's a "passive" pulley though.

If you didn't use it before your belt is probably going to be too short, and inversely.
It was probably in use but since the belt goes under it just fell down.

EDIT: Looking at the pictures side by side I think someone with a 2.3 needs to chime in, the mount  looks different on mine and lower unless it's the picture
Makes sense as it'S a different engine, silly me :whatever:

Last edited on Fri May 10th, 2019 05:10 pm by Arthur



____________________
2008 XLT 4x4 4.0 5Spd. Pretty much stock except 33's and Bilsteins: A bit broken for now.
2007 FX4 Level II auto: new project!
Back To Top PM Quote Reply

 Posted: Fri May 10th, 2019 05:52 pm
PM Quote Reply
4th Post
VelociRanger
I’ll probably do it tomorrow


Joined: Mon Jun 25th, 2018
Location: Dallas, Texas USA
Posts: 721
Name: Justin ...
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 721
Member's Gallery
 Mine is a 2008 2.3l with ac and a manual transmission



____________________
knowing when to quit is wisdom, being able to quit is courage.

1983 Ranger, reluctantly taking apart. Donor/project vehicle.

1997 Ranger Ex Cab Manual 4.0 2wd, dead on arrival. Hopefully reviving for a daily driver.

1984 Ranger, currently in ≈861 pieces. She’s donating what’s salvageable.
Back To Top PM Quote Reply

 Posted: Fri May 10th, 2019 10:23 pm
PM Quote Reply
5th Post
Eddie Money
Member


Joined: Mon Nov 13th, 2017
Location: Pacific North West
Posts: 1587
Name:
Occupation:
Interests: Burt gummer life ...
Status:
Offline
Reputation:
Reputation Points: 1587
Member's Gallery
 I'm a little confused. If the sheave for the alternator lines up and you bought the same belt as before you should be fine. If the sheave on the alternator is different then you need the correct sheave on the new alternator. If you didnt have the passive before, you shouldnt need to add one.

Closest year I could find

Last edited on Fri May 10th, 2019 10:33 pm by Eddie Money



____________________












I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger
Back To Top PM Quote Reply

 Posted: Fri May 10th, 2019 10:29 pm
PM Quote Reply
6th Post
VelociRanger
I’ll probably do it tomorrow


Joined: Mon Jun 25th, 2018
Location: Dallas, Texas USA
Posts: 721
Name: Justin ...
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 721
Member's Gallery

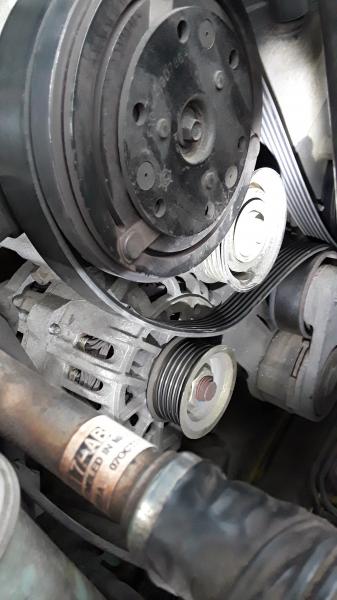

 I didn't buy a belt, I bought an alternator. There is a pulley that seems to be in the way of the top alternator bolt. I was wondering if this is an "extra" one that isn't used, and if so can I remove it? The videos I've seen of people replacing alternators do not have the pulley next to the alternator.









Last edited on Fri May 10th, 2019 10:33 pm by VelociRanger



____________________
knowing when to quit is wisdom, being able to quit is courage.

1983 Ranger, reluctantly taking apart. Donor/project vehicle.

1997 Ranger Ex Cab Manual 4.0 2wd, dead on arrival. Hopefully reviving for a daily driver.

1984 Ranger, currently in ≈861 pieces. She’s donating what’s salvageable.
Back To Top PM Quote Reply

 Posted: Fri May 10th, 2019 10:42 pm
PM Quote Reply
7th Post
Eddie Money
Member


Joined: Mon Nov 13th, 2017
Location: Pacific North West
Posts: 1587
Name:
Occupation:
Interests: Burt gummer life ...
Status:
Offline
Reputation:
Reputation Points: 1587
Member's Gallery

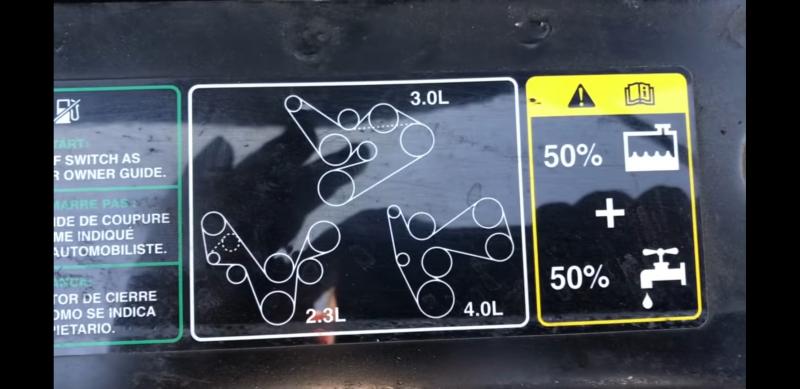

Lol you beat me. At the 11min mark of the video I posted he put the belt on. You might be able to see what you need there.

I see the extra pulley under the compressor, it's also the dotted line in the diagram. Not sure about the bolt. You were able to remove the original alternator without removing the pulley and bolt under the compressor? There may be more than one variation of the alternator housing. One may use the pulley n bolt to locate the alternator and one may bolt up without.

I'm no expert I'm just trying to trouble shoot this with you. If I'm totally missing it or dont know enough to help, just ignore me.

Last edited on Fri May 10th, 2019 10:57 pm by Eddie Money



____________________












I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger
Back To Top PM Quote Reply

 Posted: Sat May 11th, 2019 04:17 am
PM Quote Reply
8th Post
chris

Wrench spinner


Joined: Thu Oct 5th, 2017
Location: Leigh On Sea
Posts: 642
Name: Chris ...
Occupation: Retired ...
Interests: Science, technology, horses ...
Status:
Offline
Reputation:
Reputation Points: 642
Member's Gallery

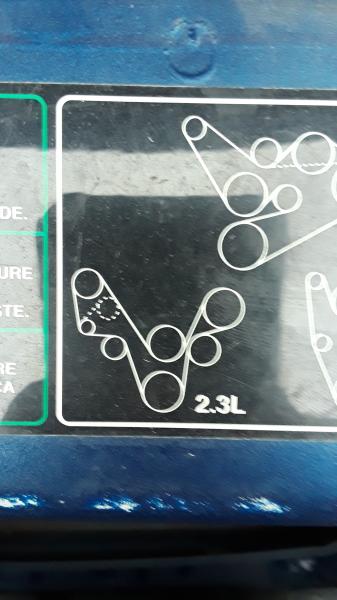

 My guess is that the dotted pulley on the diagram is used if aircon is not fitted (with a different belt).

So maybe your truck had aircon retro fitted or the engine replaced with a non aircon unit and the original pulley was left in place.

I'd take it off...



____________________
MG power
Back To Top PM Quote Reply

 Posted: Sat May 11th, 2019 02:30 pm
PM Quote Reply
9th Post
Arthur
Member


Joined: Sat Apr 13th, 2019
Location: Canada
Posts: 117
Name:
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 117
Member's Gallery

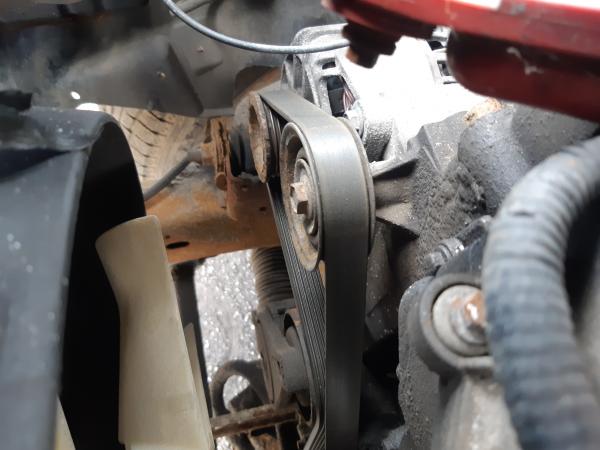

I think you're right, this is from a 2.3 I found at the junkyard today. No ac.



____________________
2008 XLT 4x4 4.0 5Spd. Pretty much stock except 33's and Bilsteins: A bit broken for now.
2007 FX4 Level II auto: new project!
Back To Top PM Quote Reply

 Posted: Sat May 11th, 2019 10:43 pm
PM Quote Reply
10th Post
VelociRanger
I’ll probably do it tomorrow


Joined: Mon Jun 25th, 2018
Location: Dallas, Texas USA
Posts: 721
Name: Justin ...
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 721
Member's Gallery
 Yeah that had to be what it was. I pulled the pulley off and kept it off. But, now we're at a no crank no start situation. Not the same problem as before where it's the PATS, because the odometer works now and the theft light isn't flashing. I have all power connected so idk what the problem is.



____________________
knowing when to quit is wisdom, being able to quit is courage.

1983 Ranger, reluctantly taking apart. Donor/project vehicle.

1997 Ranger Ex Cab Manual 4.0 2wd, dead on arrival. Hopefully reviving for a daily driver.

1984 Ranger, currently in ≈861 pieces. She’s donating what’s salvageable.
Back To Top PM Quote Reply

 Posted: Sun May 12th, 2019 12:25 pm
PM Quote Reply
11th Post
VelociRanger
I’ll probably do it tomorrow


Joined: Mon Jun 25th, 2018
Location: Dallas, Texas USA
Posts: 721
Name: Justin ...
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 721
Member's Gallery
 Here's what's happening now:

Good power, radio works and so do my lights. Check engine light flashes, anti theft light goes off so its not that now. I have no idea what it could be.



____________________
knowing when to quit is wisdom, being able to quit is courage.

1983 Ranger, reluctantly taking apart. Donor/project vehicle.

1997 Ranger Ex Cab Manual 4.0 2wd, dead on arrival. Hopefully reviving for a daily driver.

1984 Ranger, currently in ≈861 pieces. She’s donating what’s salvageable.
Back To Top PM Quote Reply

 Posted: Sun May 12th, 2019 01:44 pm
PM Quote Reply
12th Post
Tsquare
Member


Joined: Fri Nov 10th, 2017
Location: Suwanee, Georgia USA
Posts: 1540
Name:
Occupation: Controlled Insanity ...
Interests:
Status:
Offline
Reputation:
Reputation Points: 1540
Member's Gallery
 The check engine light flashing indicates there is a serious problem with your Truck. It's time to pull out the code reader.



____________________
Tony
NE ATL
'04 XLT regular cab 3.slo stepside
Semi retirement
Back To Top PM Quote Reply

 Posted: Sun May 12th, 2019 02:16 pm
PM Quote Reply
13th Post
VelociRanger
I’ll probably do it tomorrow


Joined: Mon Jun 25th, 2018
Location: Dallas, Texas USA
Posts: 721
Name: Justin ...
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 721
Member's Gallery
 Welp, son of a biscuit man. If it ain't one thing it's another :fp  :verymad



____________________
knowing when to quit is wisdom, being able to quit is courage.

1983 Ranger, reluctantly taking apart. Donor/project vehicle.

1997 Ranger Ex Cab Manual 4.0 2wd, dead on arrival. Hopefully reviving for a daily driver.

1984 Ranger, currently in ≈861 pieces. She’s donating what’s salvageable.
Back To Top PM Quote Reply

 Posted: Sun May 12th, 2019 04:41 pm
PM Quote Reply
14th Post
VelociRanger
I’ll probably do it tomorrow


Joined: Mon Jun 25th, 2018
Location: Dallas, Texas USA
Posts: 721
Name: Justin ...
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 721
Member's Gallery
 Well Tsquare, I got the code reader out annnddddd here's what happened, afterwards the truck still didn't crank over or even attempt to start. Also I apologize for the super annoying beeping the reader makes, I turned it off after the video.


Last edited on Sun May 12th, 2019 04:52 pm by VelociRanger



____________________
knowing when to quit is wisdom, being able to quit is courage.

1983 Ranger, reluctantly taking apart. Donor/project vehicle.

1997 Ranger Ex Cab Manual 4.0 2wd, dead on arrival. Hopefully reviving for a daily driver.

1984 Ranger, currently in ≈861 pieces. She’s donating what’s salvageable.
Back To Top PM Quote Reply

 Posted: Sun May 12th, 2019 05:13 pm
PM Quote Reply
15th Post
Tsquare
Member


Joined: Fri Nov 10th, 2017
Location: Suwanee, Georgia USA
Posts: 1540
Name:
Occupation: Controlled Insanity ...
Interests:
Status:
Offline
Reputation:
Reputation Points: 1540
Member's Gallery
 With your reader you might try Live Data while attempting to crank it up.

I use Torque with a blutooth reader and it has a Menu option of Show Pending Faults that has helped me in the past.But that doesn't help you.



____________________
Tony
NE ATL
'04 XLT regular cab 3.slo stepside
Semi retirement
Back To Top PM Quote Reply

 Posted: Sun May 12th, 2019 08:56 pm
PM Quote Reply
16th Post
VelociRanger
I’ll probably do it tomorrow


Joined: Mon Jun 25th, 2018
Location: Dallas, Texas USA
Posts: 721
Name: Justin ...
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 721
Member's Gallery
 I did as you suggested, and recorded the live data as my brother was turning the key. Before I took the video I noticed a clicking sound coming from the fuse box area, I got the sound on the video but its gotta be turned up all the way. And don't mind me when I said sensor, I meant fuses lol. But my thinking is that one of those big fuses is shorting out or toast and that could explain the click, but then again I don't know much.




____________________
knowing when to quit is wisdom, being able to quit is courage.

1983 Ranger, reluctantly taking apart. Donor/project vehicle.

1997 Ranger Ex Cab Manual 4.0 2wd, dead on arrival. Hopefully reviving for a daily driver.

1984 Ranger, currently in ≈861 pieces. She’s donating what’s salvageable.
Back To Top PM Quote Reply

 Posted: Mon May 13th, 2019 02:00 pm
PM Quote Reply
17th Post
VelociRanger
I’ll probably do it tomorrow


Joined: Mon Jun 25th, 2018
Location: Dallas, Texas USA
Posts: 721
Name: Justin ...
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 721
Member's Gallery
 Me thinks I figured it out. In the last video I posted I got what sounded like a clicking sound when my brother was turning the key, and it was coming from the fuse box. I opened the box, and listened and it sounded like one of the big fuses In the back corner. So, remembering that my owners manual has a layout of each fuse and what each one does, so i began to look there and sure enough, fuse 48 is the starter relay. When I get home I'm gonna move around a couple relays and see if it cranks, if it does I'll know for certain that it's that specific relay and try to find one. I looked up the part number last night, and I also read somewhere that it's 60 volt (amp?) Fuse and the only ones I found online are 40 and 20. I'm going to call Ford and see if they have one in stock.

Attachment: 20190512_235310.jpg (Downloaded 44 times)

Last edited on Mon May 13th, 2019 02:01 pm by VelociRanger



____________________
knowing when to quit is wisdom, being able to quit is courage.

1983 Ranger, reluctantly taking apart. Donor/project vehicle.

1997 Ranger Ex Cab Manual 4.0 2wd, dead on arrival. Hopefully reviving for a daily driver.

1984 Ranger, currently in ≈861 pieces. She’s donating what’s salvageable.
Back To Top PM Quote Reply

 Posted: Mon May 13th, 2019 08:42 pm
PM Quote Reply
18th Post
Tsquare
Member


Joined: Fri Nov 10th, 2017
Location: Suwanee, Georgia USA
Posts: 1540
Name:
Occupation: Controlled Insanity ...
Interests:
Status:
Offline
Reputation:
Reputation Points: 1540
Member's Gallery
 Relays will click. From what I have seen I am no help.

Good Luck.



____________________
Tony
NE ATL
'04 XLT regular cab 3.slo stepside
Semi retirement
Back To Top PM Quote Reply

 Posted: Mon May 13th, 2019 09:28 pm
PM Quote Reply
19th Post
VelociRanger
I’ll probably do it tomorrow


Joined: Mon Jun 25th, 2018
Location: Dallas, Texas USA
Posts: 721
Name: Justin ...
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 721
Member's Gallery
 Wellyou're the only person that's helped or at least tried to so thank you. I'm about to buy a gallon of gas and some matches and burn it to a crisp. Nothing worked. Still no crank. All fuses/relays good. Idk what else to try.



____________________
knowing when to quit is wisdom, being able to quit is courage.

1983 Ranger, reluctantly taking apart. Donor/project vehicle.

1997 Ranger Ex Cab Manual 4.0 2wd, dead on arrival. Hopefully reviving for a daily driver.

1984 Ranger, currently in ≈861 pieces. She’s donating what’s salvageable.
Back To Top PM Quote Reply

 Posted: Mon May 13th, 2019 11:09 pm
PM Quote Reply
20th Post
Eddie Money
Member


Joined: Mon Nov 13th, 2017
Location: Pacific North West
Posts: 1587
Name:
Occupation:
Interests: Burt gummer life ...
Status:
Offline
Reputation:
Reputation Points: 1587
Member's Gallery
 VelociRanger wrote:
Wellyou're the only person that's helped or at least tried to so thank you. I'm about to buy a gallon of gas and some matches and burn it to a crisp. Nothing worked. Still no crank. All fuses/relays good. Idk what else to try.
Hey, theres been 4 others who tried to help



____________________












I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger
Back To Top PM Quote Reply

 Posted: Mon May 13th, 2019 11:21 pm
PM Quote Reply
21st Post
VelociRanger
I’ll probably do it tomorrow


Joined: Mon Jun 25th, 2018
Location: Dallas, Texas USA
Posts: 721
Name: Justin ...
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 721
Member's Gallery
 Apologies, I say stupid things when I'm frustrated



____________________
knowing when to quit is wisdom, being able to quit is courage.

1983 Ranger, reluctantly taking apart. Donor/project vehicle.

1997 Ranger Ex Cab Manual 4.0 2wd, dead on arrival. Hopefully reviving for a daily driver.

1984 Ranger, currently in ≈861 pieces. She’s donating what’s salvageable.
Back To Top PM Quote Reply

 Posted: Mon May 13th, 2019 11:52 pm
PM Quote Reply
22nd Post
Eddie Money
Member


Joined: Mon Nov 13th, 2017
Location: Pacific North West
Posts: 1587
Name:
Occupation:
Interests: Burt gummer life ...
Status:
Offline
Reputation:
Reputation Points: 1587
Member's Gallery
 I'm just glad you havent given up. This will be a nice truck and it's a lot newer than a lot of the trucks other members are resurrecting.



____________________












I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger
Back To Top PM Quote Reply

 Posted: Mon May 13th, 2019 11:54 pm
PM Quote Reply
23rd Post
Eddie Money
Member


Joined: Mon Nov 13th, 2017
Location: Pacific North West
Posts: 1587
Name:
Occupation:
Interests: Burt gummer life ...
Status:
Offline
Reputation:
Reputation Points: 1587
Member's Gallery
 And I love the name you've given your truck so you're her only hope! You have to save her!

Last edited on Mon May 13th, 2019 11:55 pm by Eddie Money



____________________












I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger
Back To Top PM Quote Reply

 Posted: Tue May 14th, 2019 03:28 am
PM Quote Reply
24th Post
chris

Wrench spinner


Joined: Thu Oct 5th, 2017
Location: Leigh On Sea
Posts: 642
Name: Chris ...
Occupation: Retired ...
Interests: Science, technology, horses ...
Status:
Offline
Reputation:
Reputation Points: 642
Member's Gallery
 If the starter relay in the fuse box is working then the next thing to try is the starter motor itself - first check the heavy cable connection is tight and clean and if it still does not crank try giving the case of the starter motor a good whack with a hammer - it may just be stuck.



____________________
MG power
Back To Top PM Quote Reply

 Posted: Tue May 14th, 2019 07:50 am
PM Quote Reply
25th Post
Arthur
Member


Joined: Sat Apr 13th, 2019
Location: Canada
Posts: 117
Name:
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 117
Member's Gallery
 You could also try and "jump" your starter motor, bypassing starter relay. That way you know your starter is working.
Your relay could click and still be bad.
(Is it clicking once or going back and forth?)



____________________
2008 XLT 4x4 4.0 5Spd. Pretty much stock except 33's and Bilsteins: A bit broken for now.
2007 FX4 Level II auto: new project!
Back To Top PM Quote Reply

Current time is 04:30 pm Top Page:    1  2  Next Page Last Page

Ford-Rangers.com Ranger Forum > Ranger Engine Tech > 4 Cylinder Gasoline > Uhh...help?

Users viewing this topic



PHP Version: 8.2.28
Server version: 10.6.22-MariaDB
UltraBB 2.01.01 Copyright © 2008-2025 Jim & Chris
Page processed in 0.0712 seconds (37% database + 63% PHP). 107 queries executed.
