Mike69's 69 Mustang project       #: 296
 Moderated by: NoPower, Mike69, MaDMaXX, Page:  First Page Previous Page  1  2  3  4  5  6  Next Page Last Page
New Topic Reply
 Rate Topic
 Posted: Sat Jan 6th, 2018 01:21 pm
PM Quote Reply
26th Post
mhoward
Hey look ~ they ~ bounce!


Joined: Sun Oct 22nd, 2017
Location: Evansville, USA
Posts: 2736
Name: Michael ...
Occupation: Technology Manager ...
Interests: Trucks / Guitars & Music / Things that go BANG ...
Status:
Offline
Reputation:
Reputation Points: 2736
Member's Gallery
 Luckily, it doesn't look too complicated. Wonder why it wasn't included in the kit?



____________________
-- Michael

2003 Ranger Edge / Extended Cab / Flareside / 3.0L FLEX / 5r44e Auto / 2WD / 8.8 LS 4:10 / Sonic Blue Pearl

So many mods... so little time...
Back To Top PM Quote Reply

 Posted: Sun Jan 7th, 2018 09:21 pm
PM Quote Reply
27th Post
RiggerWings
RiggerWings


Joined: Wed Nov 15th, 2017
Location: Valdosta, Georgia USA
Posts: 306
Name:
Occupation: U.S. Air Force ...
Interests: Guns, Cars, Trucks, Bikes, 'Merica ...
Status:
Offline
Reputation:
Reputation Points: 306
Member's Gallery
 Maybe I missed something, if so I'm sorry. But, do you have a motor for that beast yet?



____________________
-John

2011 Ranger Sport 4x4, daily
2008 Mustang GT, garage queen
2013 Mazda CX5, grocery getter
2018 Harley Davidson Road Glide Special, the toy
Back To Top PM Quote Reply

 Posted: Mon Jan 8th, 2018 07:38 am
PM Quote Reply
28th Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery
 RiggerWings wrote: Maybe I missed something, if so I'm sorry. But, do you have a motor for that beast yet?
Yes I do, it is a 5.0 from a 1987 Mustang & a T-5 5spd from the same car. I have a M-6250-B303 roller cam & M-6049-X306 aluminum cylinder heads from a new M-6007-X302B Boss 302 crate motor that are going on it. The engine build comes after I am done with the wiring.



____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Mon Jan 8th, 2018 08:01 am
PM Quote Reply
29th Post
JAMMAN

Owns A Torsen


Joined: Mon Sep 18th, 2017
Location: Grove City, Ohio USA
Posts: 6436
Name: Jim ...
Occupation: 5 axis cnc programmer ...
Interests: RBV's ...
Status:
Offline
Reputation:
Reputation Points: 6436
Member's Gallery
 Are you going to carb it or inject it? I love the 87 motor, second year of roller cam and big upgrade on the heads after the 86 problem. If you were a little closer I'd grab those original 87 heads off you.



____________________
00 XLT 4WD RCSB 3.GO! Jalapeño
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.
Back To Top PM Quote Reply

 Posted: Mon Jan 8th, 2018 09:23 am
PM Quote Reply
30th Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery
 I am going EFI, either the Holley Sniper, or the FiTech.

https://www.summitracing.com/parts/sne-550-516/overview/

https://www.summitracing.com/parts/fif-30003/overview/



____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Mon Jan 8th, 2018 06:09 pm
PM Quote Reply
31st Post
RiggerWings
RiggerWings


Joined: Wed Nov 15th, 2017
Location: Valdosta, Georgia USA
Posts: 306
Name:
Occupation: U.S. Air Force ...
Interests: Guns, Cars, Trucks, Bikes, 'Merica ...
Status:
Offline
Reputation:
Reputation Points: 306
Member's Gallery
 Nice, I'm excited to see this.



____________________
-John

2011 Ranger Sport 4x4, daily
2008 Mustang GT, garage queen
2013 Mazda CX5, grocery getter
2018 Harley Davidson Road Glide Special, the toy
Back To Top PM Quote Reply

 Posted: Mon Jan 8th, 2018 07:29 pm
PM Quote Reply
32nd Post
mhoward
Hey look ~ they ~ bounce!


Joined: Sun Oct 22nd, 2017
Location: Evansville, USA
Posts: 2736
Name: Michael ...
Occupation: Technology Manager ...
Interests: Trucks / Guitars & Music / Things that go BANG ...
Status:
Offline
Reputation:
Reputation Points: 2736
Member's Gallery
 I'll second that! :)



____________________
-- Michael

2003 Ranger Edge / Extended Cab / Flareside / 3.0L FLEX / 5r44e Auto / 2WD / 8.8 LS 4:10 / Sonic Blue Pearl

So many mods... so little time...
Back To Top PM Quote Reply

 Posted: Mon Jan 8th, 2018 08:59 pm
PM Quote Reply
33rd Post
Tsquare
Member


Joined: Fri Nov 10th, 2017
Location: Suwanee, Georgia USA
Posts: 1540
Name:
Occupation: Controlled Insanity ...
Interests:
Status:
Offline
Reputation:
Reputation Points: 1540
Member's Gallery
 Was the AAW wiring harness for a specific year Ford Mustang, group of years, or was it a generic muscle car harness? I have used the Painless harness and it was plug and play the two times I have re-wired a vehicle.



____________________
Tony
NE ATL
'04 XLT regular cab 3.slo stepside
Semi retirement
Back To Top PM Quote Reply

 Posted: Tue Jan 9th, 2018 07:17 am
PM Quote Reply
34th Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery
 The AAW harness was for 69 only Mustang.



____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Tue Jan 9th, 2018 04:11 pm
PM Quote Reply
35th Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery

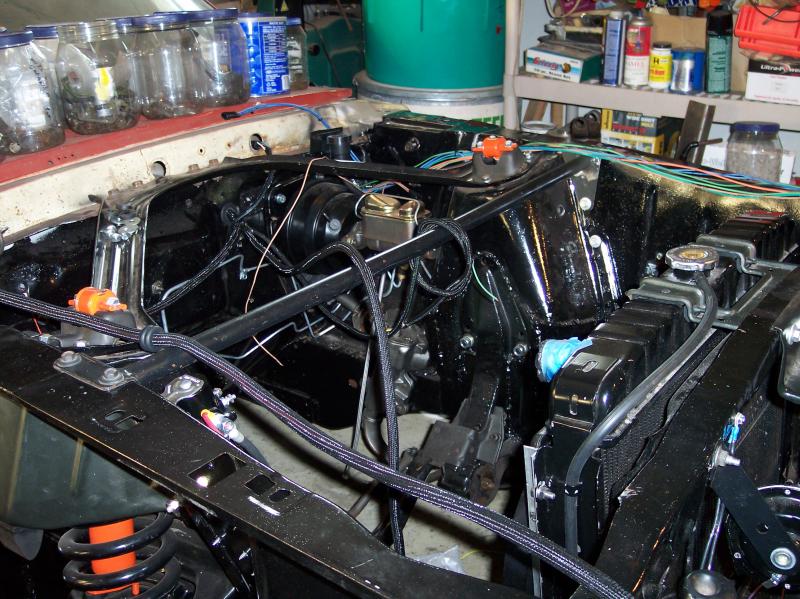

 Today after clearing some snow I started wrapping the wires under the hood into separate harness's. I ran out of the TechFlex harness wrap so I am at a stand still until I get more.





____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Tue Jan 9th, 2018 04:13 pm
PM Quote Reply
36th Post
mhoward
Hey look ~ they ~ bounce!


Joined: Sun Oct 22nd, 2017
Location: Evansville, USA
Posts: 2736
Name: Michael ...
Occupation: Technology Manager ...
Interests: Trucks / Guitars & Music / Things that go BANG ...
Status:
Offline
Reputation:
Reputation Points: 2736
Member's Gallery
 That TechFlex stuff looks nice! Great job, Mike!



____________________
-- Michael

2003 Ranger Edge / Extended Cab / Flareside / 3.0L FLEX / 5r44e Auto / 2WD / 8.8 LS 4:10 / Sonic Blue Pearl

So many mods... so little time...
Back To Top PM Quote Reply

 Posted: Wed Jan 10th, 2018 08:49 pm
PM Quote Reply
37th Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery
 mhoward wrote: That TechFlex stuff looks nice! Great job, Mike!
Thanks Michael. Today I worked on hiding the wiring that goes from the center firewall hole to the solenoid under the r/s fender.

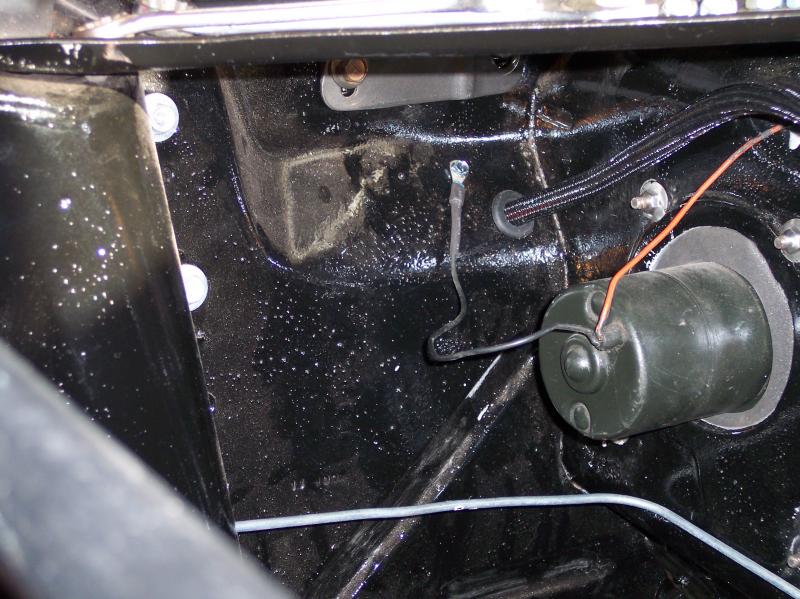

1st pic, I drilled a 7/8" hole in the rear r/s inner fender panel just below the hood hinge & ran the harness through a grommet out under the fender.

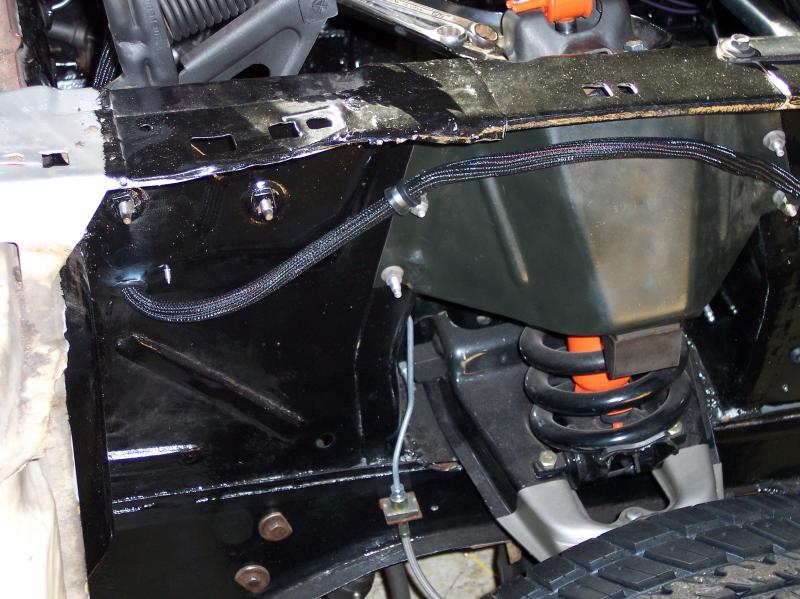

2nd pic, Routing of the harness under thew fender.



3rd pic, Harness re-enters the engine compartment through another grommet in the lower part of the r/s front inner fender panel & hooks to the solenoid.





____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Wed Jan 10th, 2018 08:55 pm
PM Quote Reply
38th Post
MaDMaXX

Hails from the land of rust!


Joined: Sat Oct 21st, 2017
Location: Oregon USA
Posts: 1368
Name:
Occupation:
Interests: Motorsport/Firearms/IT ...
Status:
Offline
Reputation:
Reputation Points: 1368
Member's Gallery
 That webbing is good stuff, it's used in computers these days too.



____________________
2002 - 3.0 - 4x2 - Edge

Upgrades/Maintenance log
Back To Top PM Quote Reply

 Posted: Fri Jan 12th, 2018 04:39 pm
PM Quote Reply
39th Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery
 Today I spent a few hours in the garage hiding the f/e lighting wires under the l/s fender.

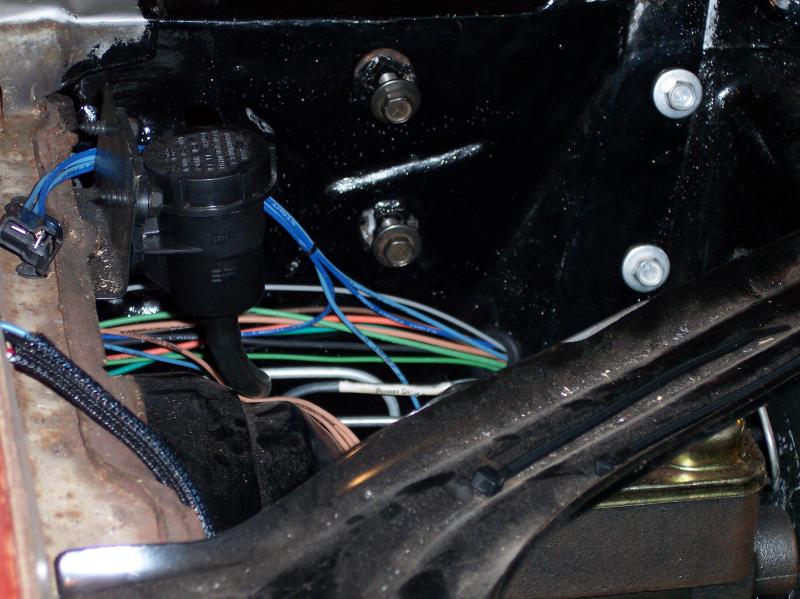

1st pic, I drilled a 7/8" hole in the l/s rear inner fender panel & ran the harness through a grommet out under the fender.


2nd pic, Harness re-enters the engine compartment through a grommet in the lower part of the l/s front inner fender panel & through a hole in the lower l/s of the radiator support out to the front of the car.

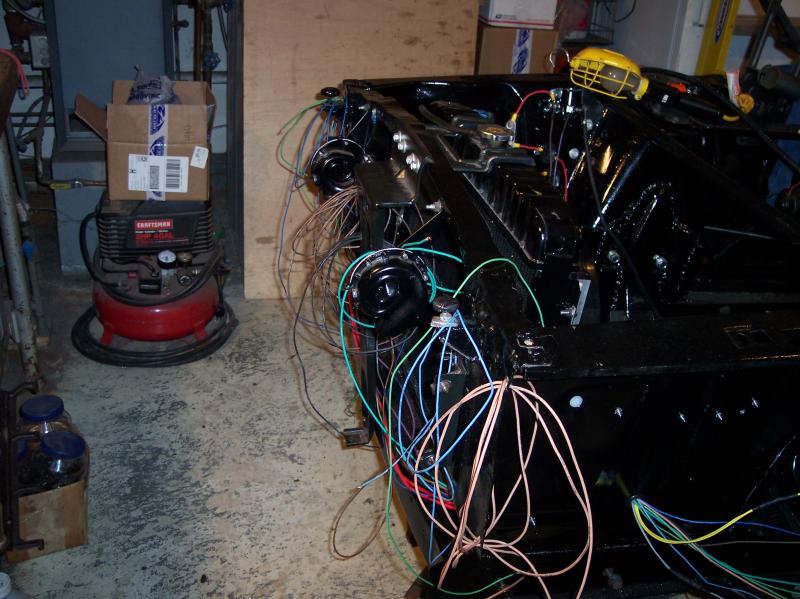

3rd pic, All the f/e lighting wires & horn wire temp in place until I can hang the fenders so I can cut the wires to length & install the plug ends.



____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Fri Jan 12th, 2018 05:55 pm
PM Quote Reply
40th Post
Tsquare
Member


Joined: Fri Nov 10th, 2017
Location: Suwanee, Georgia USA
Posts: 1540
Name:
Occupation: Controlled Insanity ...
Interests:
Status:
Offline
Reputation:
Reputation Points: 1540
Member's Gallery
 I may have missed this but on your crimp connections are you also soldering them?
I also suggest a dab of silicon on the back side of each connector that is not inside the cab.



____________________
Tony
NE ATL
'04 XLT regular cab 3.slo stepside
Semi retirement
Back To Top PM Quote Reply

 Posted: Fri Jan 12th, 2018 09:37 pm
PM Quote Reply
41st Post
mhoward
Hey look ~ they ~ bounce!


Joined: Sun Oct 22nd, 2017
Location: Evansville, USA
Posts: 2736
Name: Michael ...
Occupation: Technology Manager ...
Interests: Trucks / Guitars & Music / Things that go BANG ...
Status:
Offline
Reputation:
Reputation Points: 2736
Member's Gallery
 Absolutely :) on the solder / silicone. You WILL thank yourself years later.



____________________
-- Michael

2003 Ranger Edge / Extended Cab / Flareside / 3.0L FLEX / 5r44e Auto / 2WD / 8.8 LS 4:10 / Sonic Blue Pearl

So many mods... so little time...
Back To Top PM Quote Reply

 Posted: Sat Jan 13th, 2018 06:49 am
PM Quote Reply
42nd Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery
 Tsquare wrote: I may have missed this but on your crimp connections are you also soldering them?
I also suggest a dab of silicon on the back side of each connector that is not inside the cab.
Yes.



____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Sat Jan 13th, 2018 07:49 pm
PM Quote Reply
43rd Post
Dusten
Member


Joined: Sat Jan 13th, 2018
Location: Lake Goodwin, Washington USA
Posts: 614
Name:
Occupation:
Interests: cars, trucks, running ...
Status:
Offline
Reputation:
Reputation Points: 614
Member's Gallery
 Good looking project! I remember when my 68 looked like that



____________________
2001 Ford Lightning - Built Motor - Built Trans - 2.9 Whipple - E85 - Custom Interior - 537/632 - 11.40 @ 119.6(old setup)
1968 Ford Mustang "Gold Nugget Special"
2018 Ford Mustang GT PP1
1999 Ranger
https://www.youtube.com/user/lightningdusten
Back To Top PM Quote Reply

 Posted: Sat Jan 13th, 2018 10:09 pm
PM Quote Reply
44th Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery
 Dusten wrote: Good looking project! I remember when my 68 looked like that
Do you still have the 68? Pics?



____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Sat Jan 13th, 2018 10:16 pm
PM Quote Reply
45th Post
Dusten
Member


Joined: Sat Jan 13th, 2018
Location: Lake Goodwin, Washington USA
Posts: 614
Name:
Occupation:
Interests: cars, trucks, running ...
Status:
Offline
Reputation:
Reputation Points: 614
Member's Gallery
 Yes I still have it. My grandma bought it in 69, and its been in my family ever since. I don't want to bog down your thread to much but here's a few pictures








____________________
2001 Ford Lightning - Built Motor - Built Trans - 2.9 Whipple - E85 - Custom Interior - 537/632 - 11.40 @ 119.6(old setup)
1968 Ford Mustang "Gold Nugget Special"
2018 Ford Mustang GT PP1
1999 Ranger
https://www.youtube.com/user/lightningdusten
Back To Top PM Quote Reply

 Posted: Sat Jan 13th, 2018 10:18 pm
PM Quote Reply
46th Post
mhoward
Hey look ~ they ~ bounce!


Joined: Sun Oct 22nd, 2017
Location: Evansville, USA
Posts: 2736
Name: Michael ...
Occupation: Technology Manager ...
Interests: Trucks / Guitars & Music / Things that go BANG ...
Status:
Offline
Reputation:
Reputation Points: 2736
Member's Gallery
 Nice looking '68 Dusten!



____________________
-- Michael

2003 Ranger Edge / Extended Cab / Flareside / 3.0L FLEX / 5r44e Auto / 2WD / 8.8 LS 4:10 / Sonic Blue Pearl

So many mods... so little time...
Back To Top PM Quote Reply

 Posted: Sat Jan 13th, 2018 11:25 pm
PM Quote Reply
47th Post
Dusten
Member


Joined: Sat Jan 13th, 2018
Location: Lake Goodwin, Washington USA
Posts: 614
Name:
Occupation:
Interests: cars, trucks, running ...
Status:
Offline
Reputation:
Reputation Points: 614
Member's Gallery
 Thanks!



____________________
2001 Ford Lightning - Built Motor - Built Trans - 2.9 Whipple - E85 - Custom Interior - 537/632 - 11.40 @ 119.6(old setup)
1968 Ford Mustang "Gold Nugget Special"
2018 Ford Mustang GT PP1
1999 Ranger
https://www.youtube.com/user/lightningdusten
Back To Top PM Quote Reply

 Posted: Wed Jan 17th, 2018 02:46 pm
PM Quote Reply
48th Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery

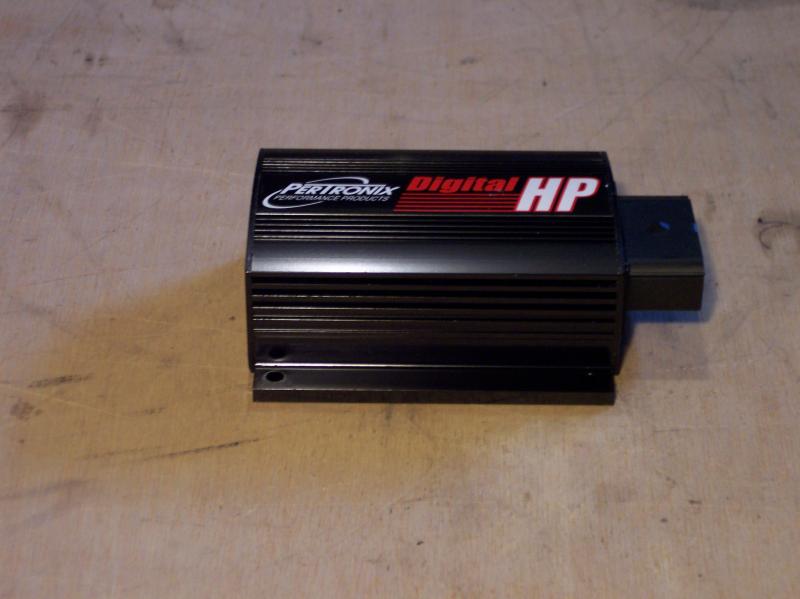

 The Pertronix Digital HP ignition box arrived today.



____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Thu Jan 18th, 2018 08:01 pm
PM Quote Reply
49th Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery

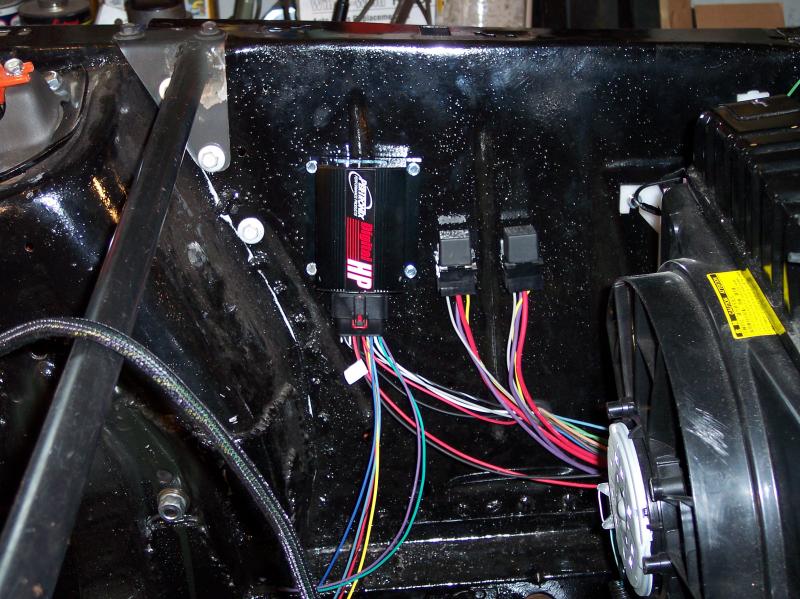

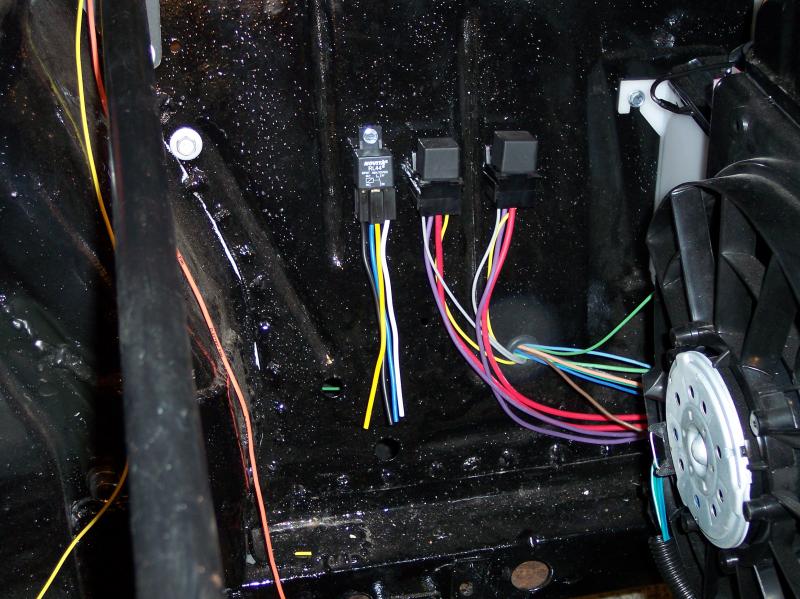

 I moved the fuel pump relay to the interior by the EFI inertia switch & the AAW relay pack & mounted the ignition box on the l/s inner fender panel by the cooling fan relays.



____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Thu Jan 18th, 2018 09:21 pm
PM Quote Reply
50th Post
MaDMaXX

Hails from the land of rust!


Joined: Sat Oct 21st, 2017
Location: Oregon USA
Posts: 1368
Name:
Occupation:
Interests: Motorsport/Firearms/IT ...
Status:
Offline
Reputation:
Reputation Points: 1368
Member's Gallery
 This seems to be ticking along nicely, do you feel like you're making progress at least?



____________________
2002 - 3.0 - 4x2 - Edge

Upgrades/Maintenance log
Back To Top PM Quote Reply

Current time is 04:56 pm Top Page:  First Page Previous Page  1  2  3  4  5  6  Next Page Last Page

Ford-Rangers.com Ranger Forum > Tech Section > Member's OTHER Projects Showcase > Mike69's 69 Mustang project

Users viewing this topic



PHP Version: 8.2.28
Server version: 10.6.22-MariaDB
UltraBB 2.01.01 Copyright © 2008-2025 Jim & Chris
Page processed in 0.0813 seconds (39% database + 61% PHP). 111 queries executed.
