hey guys im doing a 2000 ranger xlt 2wd with a 97 explorer 5.0 i was wondering do anyboby have a 42 pin out copy of both trucks no fuel crank or fire to the plugs

Already liked - 2 likes

410customs, Junglejoe

Posted: Mon Dec 14th, 2020 08:13 pm

252^nd Post

VelociRanger
Iâ€™ll probably do it tomorrow

Joined: Mon Jun 25th, 2018

Location: Dallas, Texas USA

Posts: 721

Name: Justin ...

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 721

Junglejoe wrote:

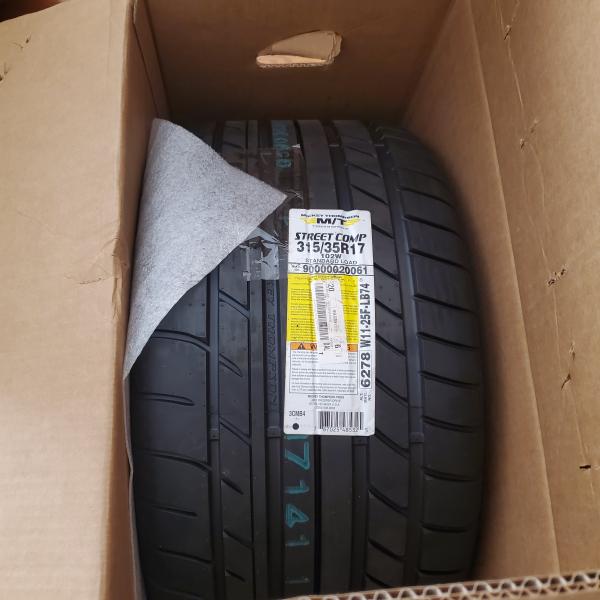

Not build related..BUT... my wheels came into today.. 17x9 and 17x10.5 03 cobras.
I'll get them on the truck one day..lol
Waiting on some small parts to come.in so I can get this thing finished and then tuned!

Do you know the wheel offset for your wheels? Are they gonna be flush with the fender or stick out a little?

____________________
knowing when to quit is wisdom, being able to quit is courage.

1983 Ranger, reluctantly taking apart. Donor/project vehicle.

1997 Ranger Ex Cab Manual 4.0 2wd, dead on arrival. Hopefully reviving for a daily driver.

1984 Ranger, currently in â‰ˆ861 pieces. Sheâ€™s donating whatâ€™s salvageable.

Already liked - 1 like likes

Junglejoe

Posted: Tue Dec 15th, 2020 09:31 am

253^rd Post

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

no brass lamps parts in the intake!!!

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked - 1 like likes

Junglejoe

Posted: Tue Dec 15th, 2020 03:27 pm

254^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Tires1 wrote:
hey guys im doing a 2000 ranger xlt 2wd with a 97 explorer 5.0 i was wondering do anyboby have a 42 pin out copy of both trucks no fuel crank or fire to the plugs
I dont have the pinouts.. but is the transmission plug plugged in? Without the safety neutral switch hooked up..it won't turn over..

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked - 1 like likes

410customs

Posted: Tue Dec 15th, 2020 03:28 pm

255^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

410customs wrote:
no brass lamps parts in the intake!!!
Thats a fact!!!

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Tue Dec 15th, 2020 03:30 pm

256^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

VelociRanger wrote:
Junglejoe wrote:

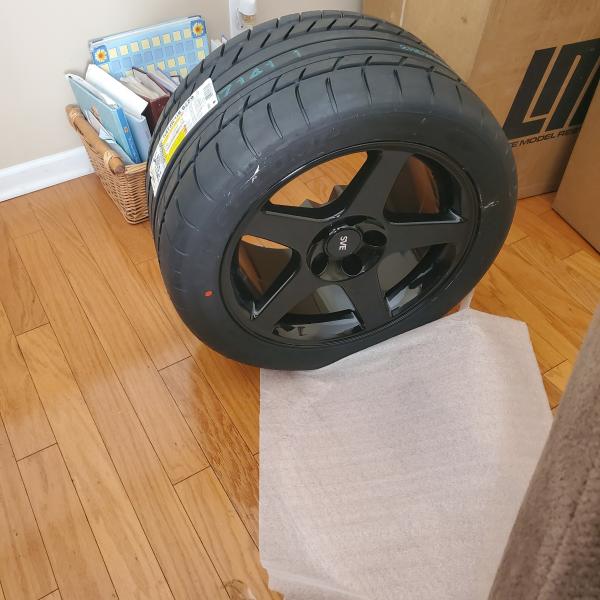

Not build related..BUT... my wheels came into today.. 17x9 and 17x10.5 03 cobras.
I'll get them on the truck one day..lol
Waiting on some small parts to come.in so I can get this thing finished and then tuned!

Do you know the wheel offset for your wheels? Are they gonna be flush with the fender or stick out a little?
They are the ones for the 94-01 mustangs I believe. They won't stick past, if anything flush. The fronts I have to use a 1 inch spacer. I bought a hub centric bolt on. Probably can get away with a 3/4 spacer..but I dont know if they make one that is hub centric and bolts on. Rears does not use any spacers on a ranger rearend.

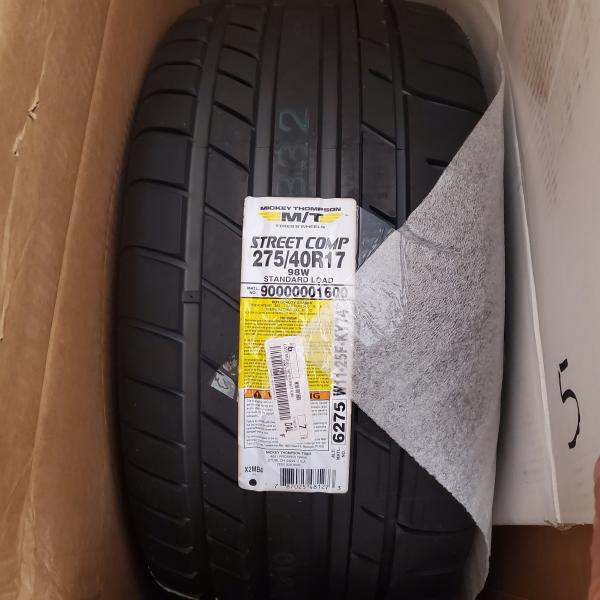

These are the wheel specs..

Size: 17x9
Offset: +26mm
Backspacing: 6.02
Lug Pattern: 5x114.3
Weight: 26 lbs

Size: 17x10.5
Offset: +27mm
Backspacing: 6.83
Lug Pattern: 5x114.3
Weight: 26 lbs

Last edited on Tue Dec 15th, 2020 03:34 pm by Junglejoe

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Wed Dec 16th, 2020 08:12 pm

257^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

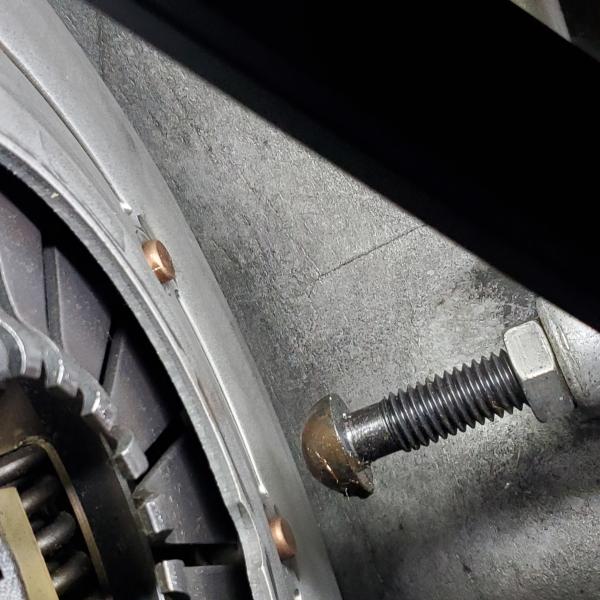

So took the transmission back out. I have an adjustable pivot ball studd and figured I'd adjust it to max to try to get the clutch release more in the middle of the peddle..

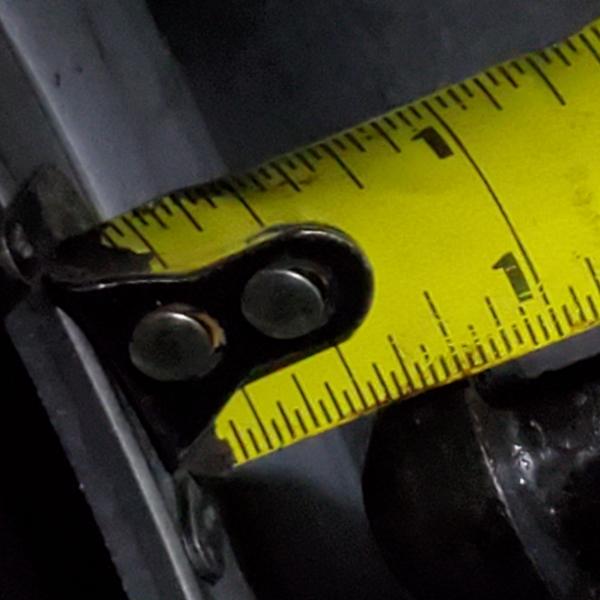

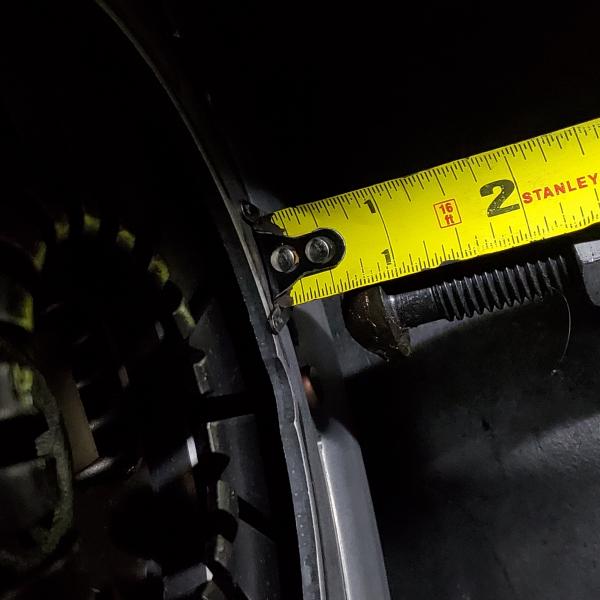

Basically I left an 1/8th inch gap between the clutch fork and the pressure plate. I was able to screw the pivot ball out about another 1/8--3/16th of an inch. I know, thats not much.. but it moved the end of the clutch fork about 3/8 of an inch. That gives me that much more peddle.. I just got thw trans back in.. fire it up tomorrow and see if it helped

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Thu Dec 17th, 2020 03:24 pm

258^th Post

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

you have to pull the trans back every time you want to adjust this?
Did the header get fixed / installed?

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked - 1 like likes

Junglejoe

Posted: Fri Dec 18th, 2020 07:48 pm

259^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

"HOPEFULLY" the last time I have to pull it J. Only did this because I have an adjustable pivot ball . The guy I bought the transmission from switched to a c4 for his mustang.. and he had it adjusted to his liking. I haven't fired it back up yet to see if all this headach was worth it or..if it even changed anything..

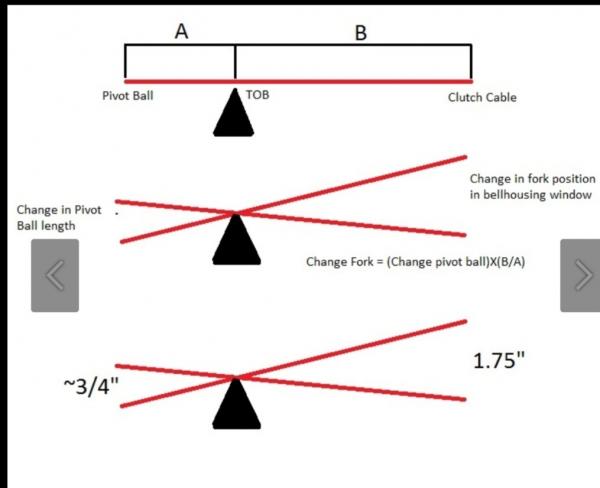

What I'm trying to look up is..if you move something a 1/4 inch out, what if anything does that do to the end of the clutch fork as far as giving more throw..

My setup, 99 F550 master and 280z slave cyl is what a lot of people use and say it works good. You use the stock ranger push rod on the master cyl.

I found this while digging around...

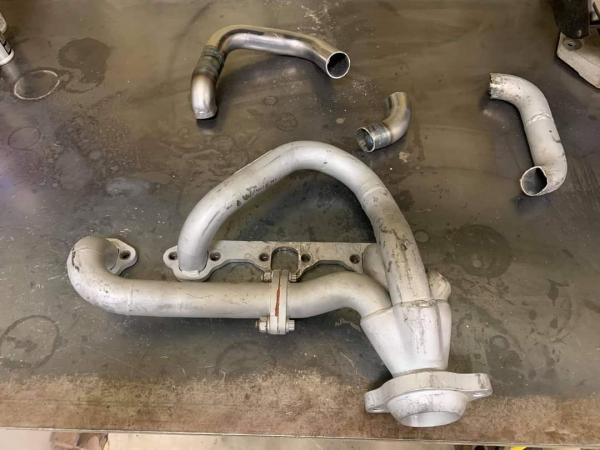

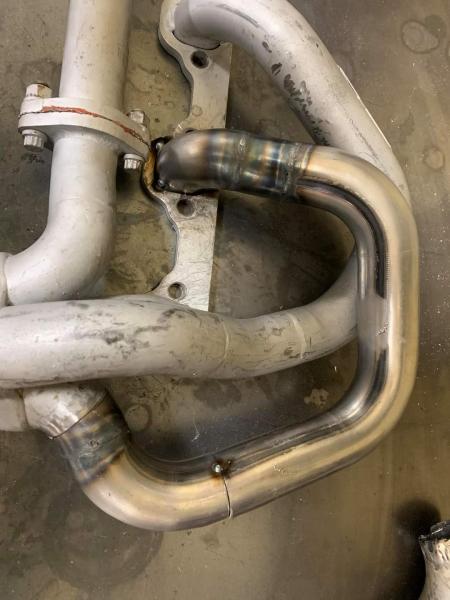

I did get the header fixed.. what a merry goround that was..lmao

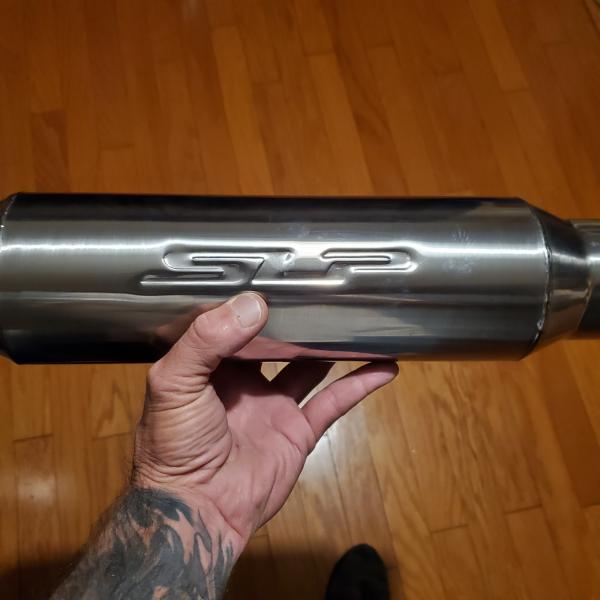

So my black widow venum 250 mufflers on backorder. Soooo.. I picked up these for the time being..I know, its going to be stupid obnoxiously loud, kinda Iike one of my Harleys with 1 3/4 inch open drag pipes..â˜•ðŸ˜Ž

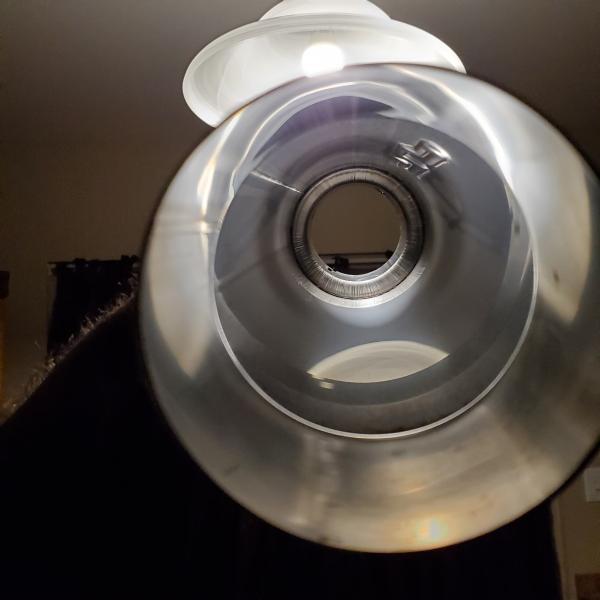

3 inch SLP' loudmouth. Coming off the headers with 2 1/2.. then was the crossover is made from the driver side over to the passenger side,because of the gas tank, then into a 3 inch X pipe and 3 inch all the way to the back bumper.

Last edited on Fri Dec 18th, 2020 07:50 pm by Junglejoe

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Fri Dec 18th, 2020 09:00 pm

260^th Post

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

wicked good stuff! I have slp pipes on my snowmobiles :) LOUD

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked - 1 like likes

Junglejoe

Posted: Fri Dec 18th, 2020 11:24 pm

261^st Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Yes!! I think it will be WAAY to loud, it will sound good at idle for sure with the cam, but holy chit ..Ive heard some foxbody mustangs with slp's.. its stupid loud!

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Sat Dec 19th, 2020 06:59 pm

262^nd Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Well chit. I loaded a "start up" up tune into the computer tonight. It DEFINITELY idled better and no gas fumes. Now.. it won't start! Smells like gas fumes... which tells me it lost fire somehow. I even put the stock tune back on it.. still no fire.... it got ro cold out there in the garage tonight. Update later with waht I find out

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Sun Dec 20th, 2020 11:20 am

263^rd Post

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

oh man here we go hahahaha

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked - 1 like likes

Junglejoe

Posted: Sun Dec 20th, 2020 02:42 pm

264^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Hahaaaa..
UPDATE: Changed the crank sensor..fired up immediately. It was the original one. So... thats good!

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Sun Dec 20th, 2020 03:05 pm

265^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Short video of start up on "start up" tune.
I'll run this for now, put a little miles on the truck make sure all systems are go for the dyno tune. RPM's are limited to 4500 in the tune so it doesn't lean out on the top end and I grenade the engine

https://youtu.be/CU_ZuATeU6g

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Mon Dec 21st, 2020 11:01 am

266^th Post

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

OMG it sounds awesome!!!!
Have you let the clutch out yet??

I leave you with this

https://www.ebay.com/itm/Headlights-Headlamps-Corner-Parking-Lights-Left-Right-Set-Kit-for-Ranger/371498710859?hash=item567f0c774b%3Ag%3AFPIAAOSwmhtf0hgU&fits=Year%3A1998%7CModel%3ARanger%7CMake%3AFord

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked - 1 like likes

Junglejoe

Posted: Mon Dec 21st, 2020 05:53 pm

267^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Yeah J . Clutch is working great now. Goes right into reverse with no grinding or clucking.. seem to have more room coming off of the floor now for engagement. I "" assume" the previous owner of the transmission must have had that pivot ball adjusted to his setup.. but it works great now!

Is that link to headlights and side markers? Yes..I need new ones..lol

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Wed Dec 23rd, 2020 01:19 pm

268^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Headed to the exhaust shop...

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked - 1 like likes

410customs

Posted: Wed Dec 23rd, 2020 02:10 pm

269^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

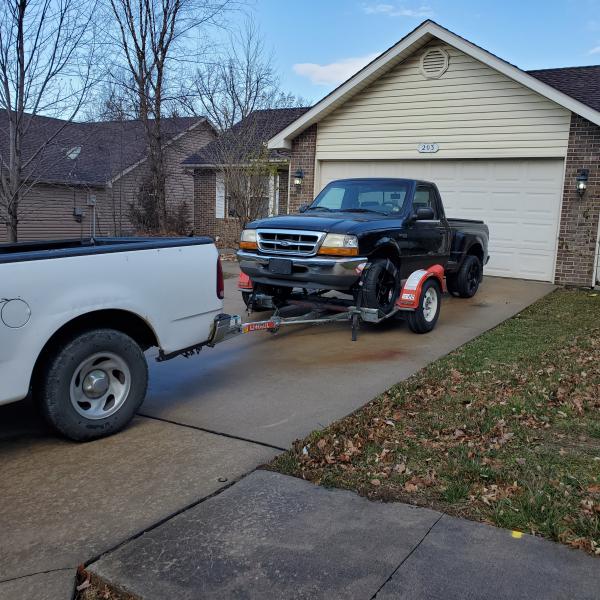

First time out of the garage in 2 lonnnnng ass years!! Loading it up headed to the exhaust shop!

https://youtube.com/shorts/mj55ler2WuI

Stuck in the mud! Lmao

https://youtube.com/shorts/W1O3UTb88kU

And finally..pulling it into the exhaust shop! Been waiting on this for a long time!!

STAY TUNED!!

https://youtube.com/shorts/y84CgSzIrUk

Last edited on Wed Dec 23rd, 2020 02:15 pm by Junglejoe

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Wed Dec 23rd, 2020 08:52 pm

270^th Post

Eddie Money
Member

Joined: Mon Nov 13th, 2017

Location: Pacific North West

Posts: 1587

Name:

Occupation:

Interests: Burt gummer life ...

Status:

Offline

Reputation:

Reputation Points: 1587

Giving me the joneses... lol. You dont need exhaust, sounds perfect!!!

____________________

I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger

Already liked - 1 like likes

Junglejoe

Posted: Wed Dec 23rd, 2020 11:06 pm

271^st Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

2 1/2 from the headers, 3 inch X pipe to 3 inch tail pipes

https://youtu.be/iy5sVS5e4XY

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Thu Dec 24th, 2020 08:50 am

272^nd Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Ok.. so here is where we're at at this point. .

(1) Power steering hose
(highpressure) is leaking on top . The metal part that goes in the center the nut, that screws into the pump is leaking. I felt that is was going to when I tightened it down.. the nut is tight was you can still wiggle the hose. Fix that if possible or order a new one.

(2) Still having small issue out of the hydraulic clutch. Ill address that. Still need to center the adjustable clutch rod coming out of the slave to center it up on the clutch fork, space out the slave cyl. or re-drill the bracket . Bleed the system good and proper. Im very confident in this system the way I have it. No worries from me here.

(3) Suspension.
Still have to put the suspension on. But that is no problem or issue. Just has to be done.

(4) Driveshaft.
When I lower the tuck it looks like I'll need to have the shaft cut about an inch. Seems to be the normal on these trucks. Right now its a stock stock reg cab 4 cly 5speed driveshaft.

That is it really. While it doesn't seem like much, its still quite a bit of work.

After I got back here from the exhaust shop, I let it idle finally and bleed out the coolant system for the first time. I thought I had got a 195* thermostat. When the truck reaches 190* like clockwork, thermostat opens and it cools down to 180-182 ish.
So the coolant system is working. At least for now. Wait till summer time and see what happens.

I need to put some wire loom on, move a few wires , make my clutch reservoir holder. Basically organize and tidy up the engine bay a little.

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked - 2 likes

410customs, Eddie Money

Posted: Fri Dec 25th, 2020 12:34 pm

273^rd Post

JAMMAN

Owns A Torsen

Joined: Mon Sep 18th, 2017

Location: Grove City, Ohio USA

Posts: 6436

Name: Jim ...

Occupation: 5 axis cnc programmer ...

Interests: RBV's ...

Status:

Offline

Reputation:

Reputation Points: 6436

Awesome progress, for the record mine was a 2000 single cab born with a 4 cyl but an automatic... when I put the 4r70w auto behind a 5.0 the old driveshaft was the correct length of course I had to change the front yoke but that was all. Funny the standard transmission was the correct length also.

____________________
00 XLT 4WD RCSB 3.GO! JalapeÃ±o
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.

Already liked - 2 likes

Junglejoe, 410customs

Posted: Fri Dec 25th, 2020 01:43 pm

274^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

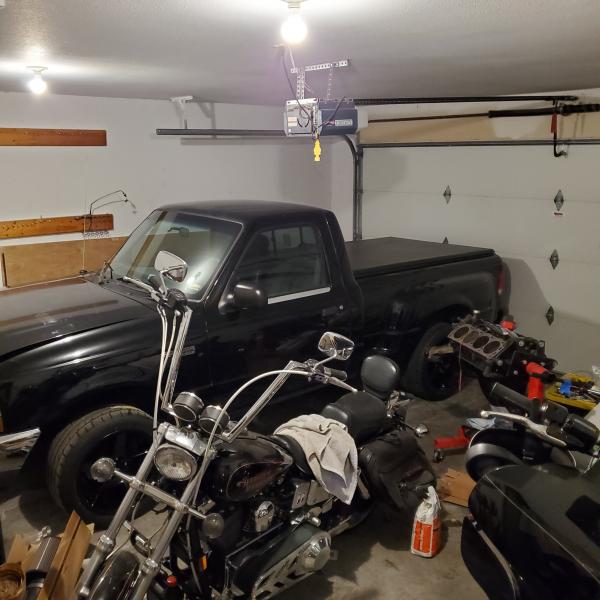

Its a complete truck once again. Its colder than a well diggers azz now out side!

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked - 2 likes

VelociRanger, 410customs

Posted: Sat Dec 26th, 2020 05:49 pm

275^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

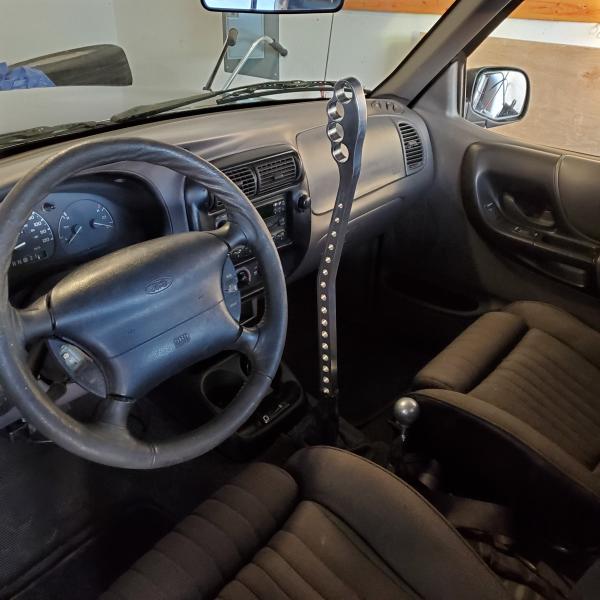

Cleaning 2 years worth of dust of the truck, mounted my daily driver shifter..
The little shifter sitting there will stay
in the truck at all times. Take out 2 Allen head screws.. its game time! â˜•ðŸŽ¬ðŸ

Anyone know where I can get the leather wrap on the steering wheel? Or...a new steering wheel that is leather wrapped..

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -
