Heater Resistor Pak       #: 1610
 Moderated by: NoPower, Mike69, MaDMaXX,
New Topic Reply
 Rate Topic
 Posted: Tue Apr 30th, 2019 12:43 pm
PM Quote Reply
1st Post
Scrambler82
Old Bastard !


Joined: Fri Dec 22nd, 2017
Location: California USA
Posts: 2108
Name: Grev B ...
Occupation: Quality Assurance Engineer ...
Interests: Rangers, Photography, Metal Bending ...
Status:
Offline
Reputation:
Reputation Points: 2108
Member's Gallery

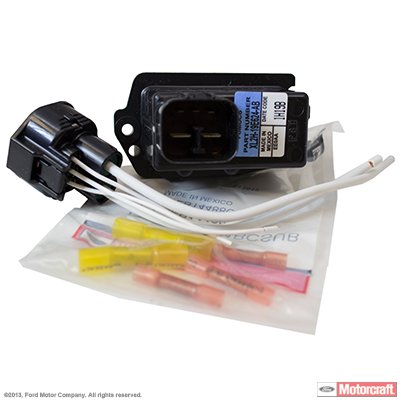

 Has anyone ever seen this type of Heater Resistor Pak before, Rock Auto p/n: MOTORCRAFT YH1832 - "Motorcraft Resistor Assemblies precision engineered"; Alternate/OEM Part Number(s): F7SZ19E624BB.
Looks to be solid state and it says Motorcraft !

Price is high at $150.00 but if it eliminates the heater Resistor Pak braking down, maybe worth it.



The connector is not the same, why did Rock Auto pop this one up for me to buy... says compatible with 2003 Ranger EDGE.

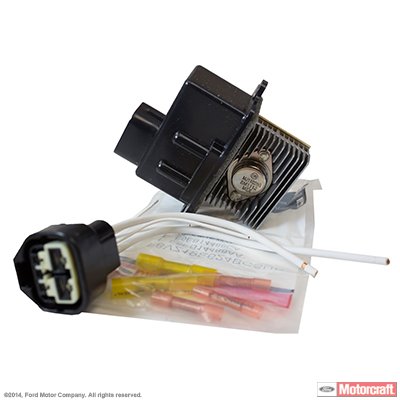

Here is the backside of the looks solid-state electronic to me.

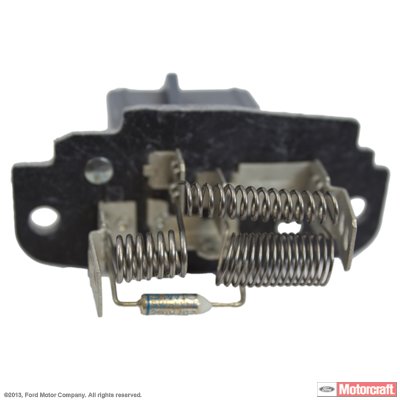

The next pic is what I am used to... big difference... thinking and searching the web.





Added at 1030 hrs:
Searched the web a little, found the part number under Explorer, but no reference to Ranger.
One Ford Site stated it wasn't FOR the Ranger but never said if it would FIT a Ranger.
Wondering if it will fit the Ranger Housing, a solid-state electronic device should be better than the coils of wire sold for the Ranger.


Added at 1100 hrs:
Just looked on Amazon, it is stated that it fits my 2003 Ranger EDGE... WTF is happening here.
Looking at the wiring, it appears to have two larger gauge power wires, maybe power and ground, but both are the same color, and then smaller wires, which I am guessing are control wires.
If anyone can get a schematics,for this device... who knows it might work.

Added 1135 hrs:
This is the responce to my inquirey from Silver State Ford.
"F7SZ-19E624-BB is the correct updated part for the Ranger.
Thank you,
Silver State Ford"
Now I need to see what Rock Auto sends for a part.
I've email Rock Auto, waiting to hear.

Last edited on Tue Apr 30th, 2019 02:37 pm by Scrambler82



____________________
Ltr,
2003 EDGE, Std Cab, Steppie, E4 Red, 5sp, 4x
5" SuperLift, 33" x 12.50 x 15"
Hurst Shifter
Mod'd Backrack to fit Steppie
Front and Rear Bumpers by Custom 4x4 Fabrication, OK; now Mike's Welding and Fabrication.
Working on more Mods, just need more time, longer days would work !
Back To Top PM Quote Reply

 Posted: Tue Apr 30th, 2019 07:56 pm
PM Quote Reply
2nd Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery
 Rock Auto also lists the same part # for my 2000 Ranger.

https://www.rockauto.com/en/moreinfo.php?pk=3102684&cc=1362798&jsn=573



____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Tue Apr 30th, 2019 11:15 pm
PM Quote Reply
3rd Post
V8 Level II
Member


Joined: Tue Dec 5th, 2017
Location: Michigan, USA
Posts: 118
Name:
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 118
Member's Gallery
 It doesn't matter what the books say... That part is for the optional Electronic Automatic Temperature Control available in high end 2nd generation Explorers. It will NOT work with the factory Ranger HVAC.

I like Rock Auto but you must cross check them. I would estimate that their application info for our Rangers is only 85~95% correct.



____________________
2003 FX4 Level II, Supercharged 5.0L V8, Headers, Duals, BW4406 manual T/C
Aussie Locker, Torsen L/S, 4.10's, Bilstein 7100 rezzies, Cadillac/Mustang rear discs, Duff traction bars
Keypad Entry, Lock LEDs, sway bar discos, Heated seats, Explorer EATC, Trip Computer and consoles

Other rides:
2016 C-MAX Energi (plug-in Hybrid)
2011 Taurus SEL (highway cruiser)
2003 Ranger 2.3L M5ODR1 Regular Cab (drudge)
Back To Top PM Quote Reply

 Posted: Wed May 1st, 2019 08:51 am
PM Quote Reply
4th Post
JAMMAN

Owns A Torsen


Joined: Mon Sep 18th, 2017
Location: Grove City, Ohio USA
Posts: 6436
Name: Jim ...
Occupation: 5 axis cnc programmer ...
Interests: RBV's ...
Status:
Offline
Reputation:
Reputation Points: 6436
Member's Gallery
 Thank you for clearing that up! Great info (since I'm sure you use one on your rig :) )

The failure point on that resistor pack isn't the pack itself. I have never seen one go bad ON THE INSIDE. It is the connector on the outside that takes on moisture and corrodes, most times to the point it becomes a permanent part of the resistor and cannot be removed! Seen this 4 times now has to be common.

I think the best defense for a long lasting replacement would be simply packing copious amounts of a good grade dielectric grease in the plug/socket upon replacing them both.



____________________
00 XLT 4WD RCSB 3.GO! Jalapeño
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.
Back To Top PM Quote Reply

 Posted: Wed May 1st, 2019 12:46 pm
PM Quote Reply
5th Post
Scrambler82
Old Bastard !


Joined: Fri Dec 22nd, 2017
Location: California USA
Posts: 2108
Name: Grev B ...
Occupation: Quality Assurance Engineer ...
Interests: Rangers, Photography, Metal Bending ...
Status:
Offline
Reputation:
Reputation Points: 2108
Member's Gallery
 V8 Level II wrote:
It doesn't matter what the books say... That part is for the optional Electronic Automatic Temperature Control available in high end 2nd generation Explorers. It will NOT work with the factory Ranger HVAC.

I like Rock Auto but you must cross check them. I would estimate that their application info for our Rangers is only 85~95% correct.
I figured it wasn't for the Ranger but what gets me is a couple of Ford Parts Houses said it was the correct part number for a Ranger.  Funny !
Also on another site I was told that this unit uses a Pusle System to control voltage... Ranger don't got it !
Thanks for the info Bob.


JAMMAN wrote:
Thank you for clearing that up! Great info (since I'm sure you use one on your rig :) )

The failure point on that resistor pack isn't the pack itself. I have never seen one go bad ON THE INSIDE. It is the connector on the outside that takes on moisture and corrodes, most times to the point it becomes a permanent part of the resistor and cannot be removed! Seen this 4 times now has to be common.

I think the best defense for a long lasting replacement would be simply packing copious amounts of a good grade dielectric grease in the plug/socket upon replacing them both.
But that unit does look indestructible and, and if the Ranger had one of these unit or similar unit, it would cut out a lot of replacement action on the Ranger OEM Unit.
When it was called out by Rock Auto, I thought someone has finally made an HD Replacement but then I saw Motorcraft... what goign on.

So what Bob said, Ranger owners are always getting the short end.

I'm back to OEM Parts again, but first I want to see if there is a fuse on the Ranger Unit, and see if it is blown out, then figure out a way to fix it.



____________________
Ltr,
2003 EDGE, Std Cab, Steppie, E4 Red, 5sp, 4x
5" SuperLift, 33" x 12.50 x 15"
Hurst Shifter
Mod'd Backrack to fit Steppie
Front and Rear Bumpers by Custom 4x4 Fabrication, OK; now Mike's Welding and Fabrication.
Working on more Mods, just need more time, longer days would work !
Back To Top PM Quote Reply

 Posted: Wed May 1st, 2019 03:25 pm
PM Quote Reply
6th Post
JAMMAN

Owns A Torsen


Joined: Mon Sep 18th, 2017
Location: Grove City, Ohio USA
Posts: 6436
Name: Jim ...
Occupation: 5 axis cnc programmer ...
Interests: RBV's ...
Status:
Offline
Reputation:
Reputation Points: 6436
Member's Gallery
 What are the actual symptoms? No fan at all? Fan on high only?

And have you attempted to remove the old one yet?



____________________
00 XLT 4WD RCSB 3.GO! Jalapeño
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.
Back To Top PM Quote Reply

 Posted: Wed May 1st, 2019 10:53 pm
PM Quote Reply
7th Post
Scrambler82
Old Bastard !


Joined: Fri Dec 22nd, 2017
Location: California USA
Posts: 2108
Name: Grev B ...
Occupation: Quality Assurance Engineer ...
Interests: Rangers, Photography, Metal Bending ...
Status:
Offline
Reputation:
Reputation Points: 2108
Member's Gallery
 JAMMAN wrote:
What are the actual symptoms? No fan at all? Fan on high only?

And have you attempted to remove the old one yet?
The symptoms are the fan only has high and what I think is low !

I have not removed the Resistor Pac because I need to remove the Washer/Overflow Res and plan on both at the same time.
I should have all of the parts needed for the Reservoir replacement in a day or two and will attempt the fix then.The Cruise Control Module needs to be removed for both fixes so I may save a little time.

The last Resistor Pac lasted less than one year, it has been in the broken state for over four years... been a while since I had a fan with more than two speeds.



____________________
Ltr,
2003 EDGE, Std Cab, Steppie, E4 Red, 5sp, 4x
5" SuperLift, 33" x 12.50 x 15"
Hurst Shifter
Mod'd Backrack to fit Steppie
Front and Rear Bumpers by Custom 4x4 Fabrication, OK; now Mike's Welding and Fabrication.
Working on more Mods, just need more time, longer days would work !
Back To Top PM Quote Reply
