 Was thinking, I'm going to take my bed off this winter for a number of reasons. My shackles are not "that bad" but while I have the bed off I could put on a set I bought from Adam here at F-R avoiding doing it in a couple years.

It might take a while with my 1/4" die grinder and a 3" cutoff wheel, what are you pros using to remove the original rivets with?



____________________
00 XLT 4WD RCSB 3.GO! Jalapeño
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.
Back To Top PM Quote Reply

 Posted: Sun Oct 27th, 2019 11:04 am
PM Quote Reply
2nd Post
410customs

Idahome


Joined: Wed May 2nd, 2018
Location: Panhandle, Idaho USA
Posts: 2165
Name: Jamie ...
Occupation: Elevator Design Worlds Tallest Buildings ...
Interests: Ranger Based Vehicles and OFFROAD ...
Status:
Offline
Reputation:
Reputation Points: 2165
Member's Gallery
 4.5" grinder with grinding wheel (not cut off wheel)
Grind the rivet head down flat until you can see the circle of the hole through the frame. Then one punch with hammer and punch and the rivet is out.
Takes seconds, not minutes this way



____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks
Back To Top PM Quote Reply

 Posted: Sun Oct 27th, 2019 12:38 pm
PM Quote Reply
3rd Post
black06xlt
Coal miner


Joined: Sat Nov 25th, 2017
Location: Flushing, Ohio USA
Posts: 1738
Name:
Occupation:
Interests: my wife my kids ford rangers ...
Status:
Offline
Reputation:
Reputation Points: 1738
Member's Gallery
 Torches work great but a cut off wheel on a grinder will get the job done



____________________
1995 ranger splash (pieces)
Back To Top PM Quote Reply

 Posted: Sun Oct 27th, 2019 08:50 pm
PM Quote Reply
4th Post
JAMMAN

Owns A Torsen


Joined: Mon Sep 18th, 2017
Location: Grove City, Ohio USA
Posts: 6436
Name: Jim ...
Occupation: 5 axis cnc programmer ...
Interests: RBV's ...
Status:
Offline
Reputation:
Reputation Points: 6436
Member's Gallery
 Adam, I'm doing this at home so no torch access unfortunately.

Anyone got a picture of a 4.5" grinder?



____________________
00 XLT 4WD RCSB 3.GO! Jalapeño
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.
Back To Top PM Quote Reply

 Posted: Mon Oct 28th, 2019 09:51 am
PM Quote Reply
5th Post
410customs

Idahome


Joined: Wed May 2nd, 2018
Location: Panhandle, Idaho USA
Posts: 2165
Name: Jamie ...
Occupation: Elevator Design Worlds Tallest Buildings ...
Interests: Ranger Based Vehicles and OFFROAD ...
Status:
Offline
Reputation:
Reputation Points: 2165
Member's Gallery

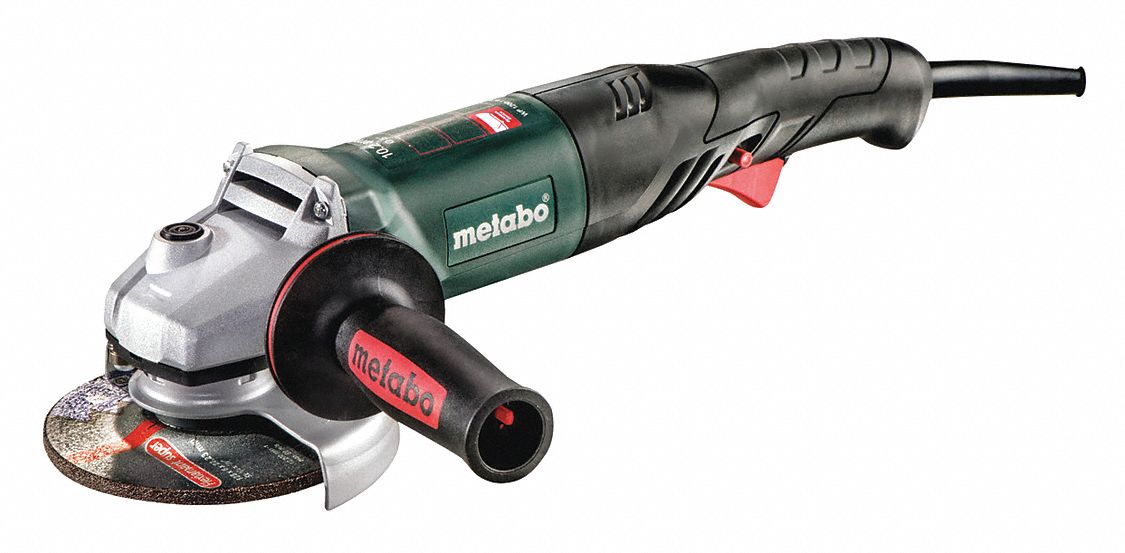

 ah the blue wrench! I love my torch but I'm much better with a grinder....need more torch time.

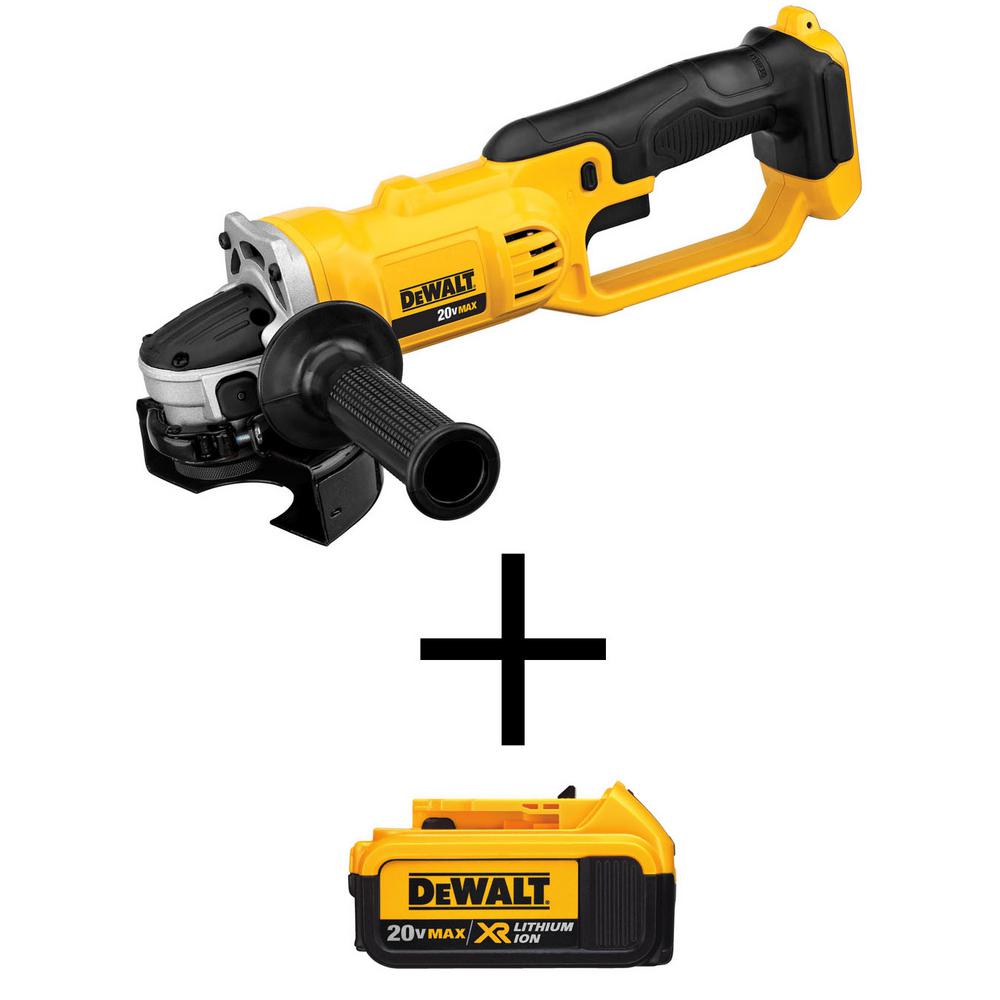

I have two grinders one corded and my new favorite is the dewalt brushless 20V.....so   handy

grinder is one of my most used tools I had a black and decker for years....then I killed it. Got a makita killed it. Got a hitachi killed it. Then I learned that tile setters use a brand called "metabo" and I bought one. Holy crap! The metabo spinds at like twice the speed. You cant kill the Metabo. So if you want a corded angle grinder get a metabo they are super super awesome. Like life changing awesome, anytime somebody asks "what brand grinder" I get to jump in and tell this story. Metabo makes all others look WEAK!!



Otherwise the dewalt battery powered does most jobs and is one of my fav tools. the dewalt stuff I have been beating on and beating on.... no more cords!!

Last edited on Mon Oct 28th, 2019 09:55 am by 410customs



____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks
Back To Top PM Quote Reply

 Posted: Mon Oct 28th, 2019 07:20 pm
PM Quote Reply
6th Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery
 Jim, the 4.5" angle grinder with a grinder wheel is what I used when I did mine a few years ago. I ground off the head of the rivet & then just used a punch & drove the rest of the rivet out of the frame, & bolted on the new ones, just like Jamie suggested above.



____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Sun Dec 22nd, 2019 10:28 am
PM Quote Reply
7th Post
mhoward
Hey look ~ they ~ bounce!


Joined: Sun Oct 22nd, 2017
Location: Evansville, USA
Posts: 2736
Name: Michael ...
Occupation: Technology Manager ...
Interests: Trucks / Guitars & Music / Things that go BANG ...
Status:
Offline
Reputation:
Reputation Points: 2736
Member's Gallery
 Just curious; how hard is it to get the bed off? I have the flare side. Can two guys lift it off and set it aside, or does it weigh too much? I need to take my bed off this coming summer to replace the RH cab corner. At the same time, I will be looking at the bed floor and spring shackles. The bed is the part that worries me.



____________________
-- Michael

2003 Ranger Edge / Extended Cab / Flareside / 3.0L FLEX / 5r44e Auto / 2WD / 8.8 LS 4:10 / Sonic Blue Pearl

So many mods... so little time...
Back To Top PM Quote Reply

 Posted: Sun Dec 22nd, 2019 10:31 am
PM Quote Reply
8th Post
410customs

Idahome


Joined: Wed May 2nd, 2018
Location: Panhandle, Idaho USA
Posts: 2165
Name: Jamie ...
Occupation: Elevator Design Worlds Tallest Buildings ...
Interests: Ranger Based Vehicles and OFFROAD ...
Status:
Offline
Reputation:
Reputation Points: 2165
Member's Gallery
 two dudes = too easy
One dude can do it with enough ooooommph and some ingenuity (like a few boards, a cherry picker, ropes from the ceiling, floor jacks and blocks of wood, etc)

When there is a will there is a way
The ranger beds are not that heavy



____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks
Back To Top PM Quote Reply

 Posted: Sun Dec 22nd, 2019 10:35 am
PM Quote Reply
9th Post
mhoward
Hey look ~ they ~ bounce!


Joined: Sun Oct 22nd, 2017
Location: Evansville, USA
Posts: 2736
Name: Michael ...
Occupation: Technology Manager ...
Interests: Trucks / Guitars & Music / Things that go BANG ...
Status:
Offline
Reputation:
Reputation Points: 2736
Member's Gallery
 Ah, thanks Jamie! ArcticWolf is a pretty stout young man and I WILL make him an indentured slave to help get the bed off! :) My truck is a 2003 living in the rust belt (Southern Indiana). Should I just change the shackles even if they look okay while the bed is off?



____________________
-- Michael

2003 Ranger Edge / Extended Cab / Flareside / 3.0L FLEX / 5r44e Auto / 2WD / 8.8 LS 4:10 / Sonic Blue Pearl

So many mods... so little time...
Back To Top PM Quote Reply

 Posted: Sun Dec 22nd, 2019 12:36 pm
PM Quote Reply
10th Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery

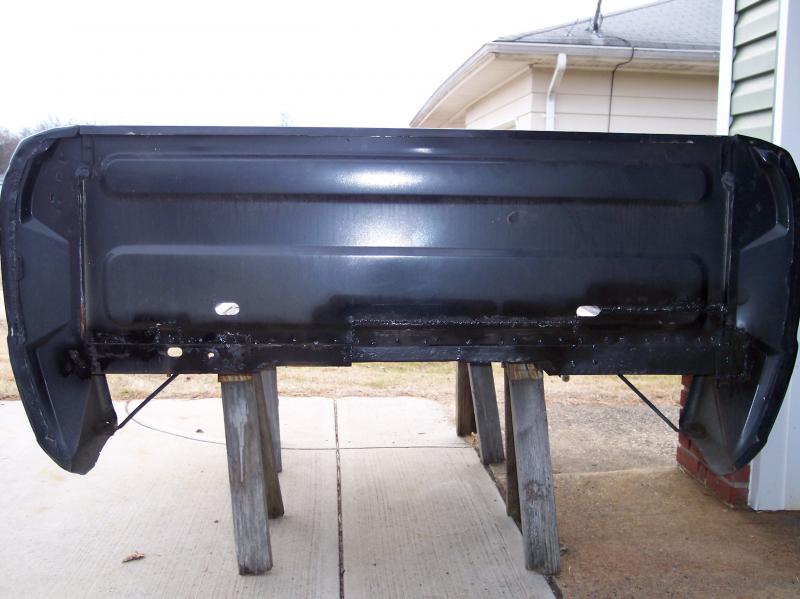

 Michael, my wife & I can remove the bed off my 00 Ranger using some marine grade rope tied to the inside bed hooks in an "X" pattern & my engine hoist. My wife operates the engine hoist while I guide the bed up, once it clears the rear bumper I hold the bed steady & she jumps in the truck & pulls it forward & then we set the bed on a pair of saw horses. When we stood the bed on the front panel so I could coat the bottom of the replacement bed I just ran a chain across the 2 rear in bed tie down hooks & lifted it with the engine hoist until it was clear of the saw horses then with my wife operating the hoist again I steadied the bed while she let the hoist down setting it on the front panel.










____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Sun Dec 22nd, 2019 01:13 pm
PM Quote Reply
11th Post
mhoward
Hey look ~ they ~ bounce!


Joined: Sun Oct 22nd, 2017
Location: Evansville, USA
Posts: 2736
Name: Michael ...
Occupation: Technology Manager ...
Interests: Trucks / Guitars & Music / Things that go BANG ...
Status:
Offline
Reputation:
Reputation Points: 2736
Member's Gallery
 Cool. Thanks Mike! Although I don't have a hoist, my son (ArticWolf) is young and strong, so together I think we will be able to manage it. I plan on getting a pair of folding saw horses to set the bed on while I take care of the cab corner and whatever else shows up needing attention.



____________________
-- Michael

2003 Ranger Edge / Extended Cab / Flareside / 3.0L FLEX / 5r44e Auto / 2WD / 8.8 LS 4:10 / Sonic Blue Pearl

So many mods... so little time...
Back To Top PM Quote Reply

 Posted: Mon Dec 23rd, 2019 02:50 am
PM Quote Reply
12th Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery

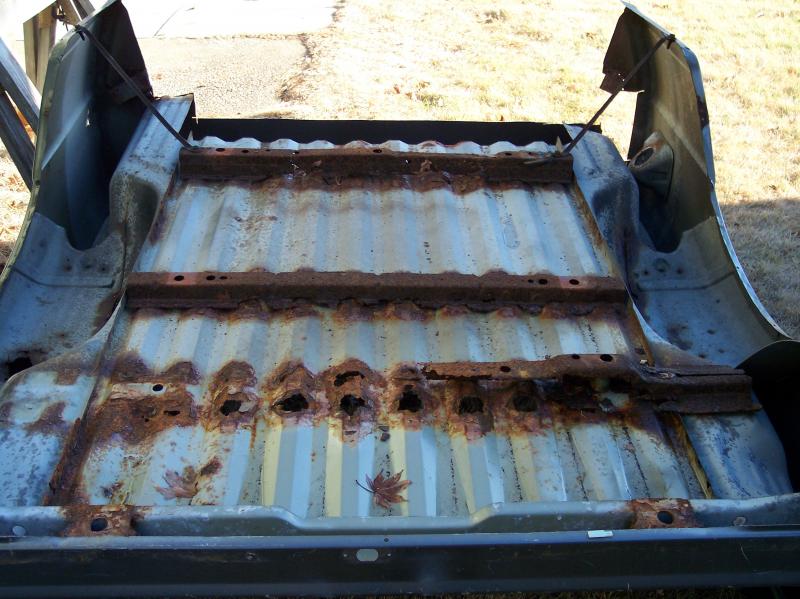

 You are welcome Michael. Make sure while you have the bed off your Ranger to check out the cross supports that are welded to the under side of the bed, as mine were badly rotted away & the bed floor was rotting away where all the spot welds were.




____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Mon Dec 23rd, 2019 10:16 am
PM Quote Reply
13th Post
mhoward
Hey look ~ they ~ bounce!


Joined: Sun Oct 22nd, 2017
Location: Evansville, USA
Posts: 2736
Name: Michael ...
Occupation: Technology Manager ...
Interests: Trucks / Guitars & Music / Things that go BANG ...
Status:
Offline
Reputation:
Reputation Points: 2736
Member's Gallery
 Yeah... hoping I don't find what you did. Mine is a steppie, so finding a good bed might be more of a challenge.



____________________
-- Michael

2003 Ranger Edge / Extended Cab / Flareside / 3.0L FLEX / 5r44e Auto / 2WD / 8.8 LS 4:10 / Sonic Blue Pearl

So many mods... so little time...
Back To Top PM Quote Reply

 Posted: Mon Dec 23rd, 2019 11:00 am
PM Quote Reply
14th Post
Tsquare
Member


Joined: Fri Nov 10th, 2017
Location: Suwanee, Georgia USA
Posts: 1540
Name:
Occupation: Controlled Insanity ...
Interests:
Status:
Offline
Reputation:
Reputation Points: 1540
Member's Gallery
 I got a grinder for you:

Attachment: grinder.jpg (Downloaded 16 times)



____________________
Tony
NE ATL
'04 XLT regular cab 3.slo stepside
Semi retirement
Back To Top PM Quote Reply

 Posted: Mon Dec 23rd, 2019 09:20 pm
PM Quote Reply
15th Post
mhoward
Hey look ~ they ~ bounce!


Joined: Sun Oct 22nd, 2017
Location: Evansville, USA
Posts: 2736
Name: Michael ...
Occupation: Technology Manager ...
Interests: Trucks / Guitars & Music / Things that go BANG ...
Status:
Offline
Reputation:
Reputation Points: 2736
Member's Gallery
 Awesome Tony! Thank you! LOL
