Valve cover trouble?       #: 709
 Moderated by: Mike69, MaDMaXX,
New Topic Reply
 Rate Topic
 Posted: Mon Mar 19th, 2018 05:53 pm
PM Quote Reply
1st Post
RCR4V3N
Member


Joined: Sun Jan 14th, 2018
Location: Montgomery, Alabama USA
Posts: 46
Name:
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 46
Member's Gallery

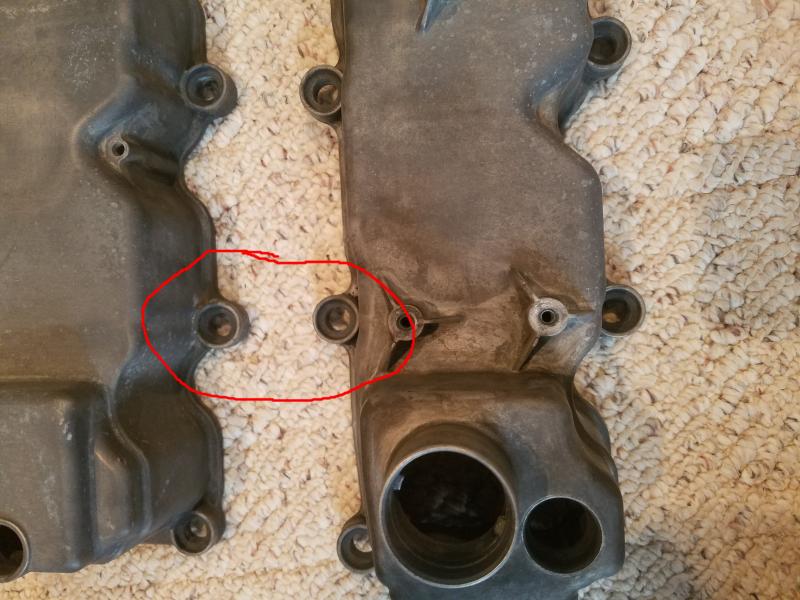

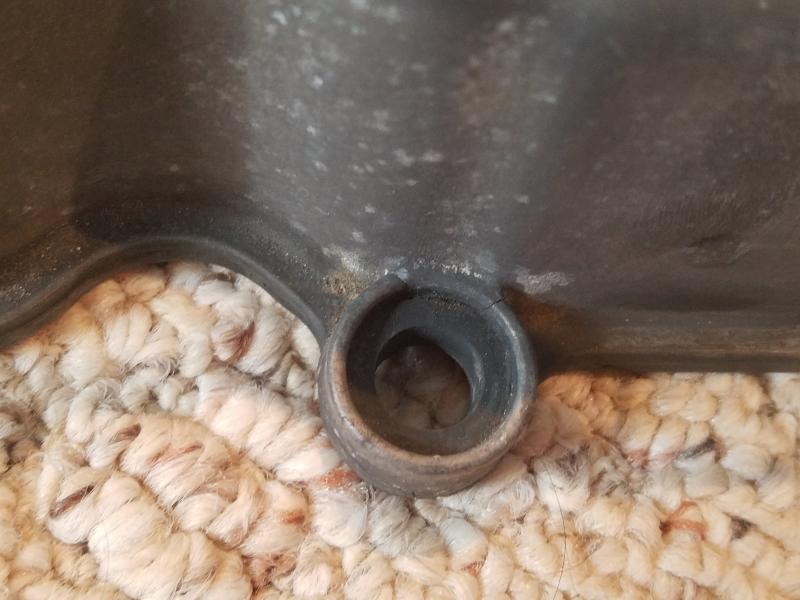

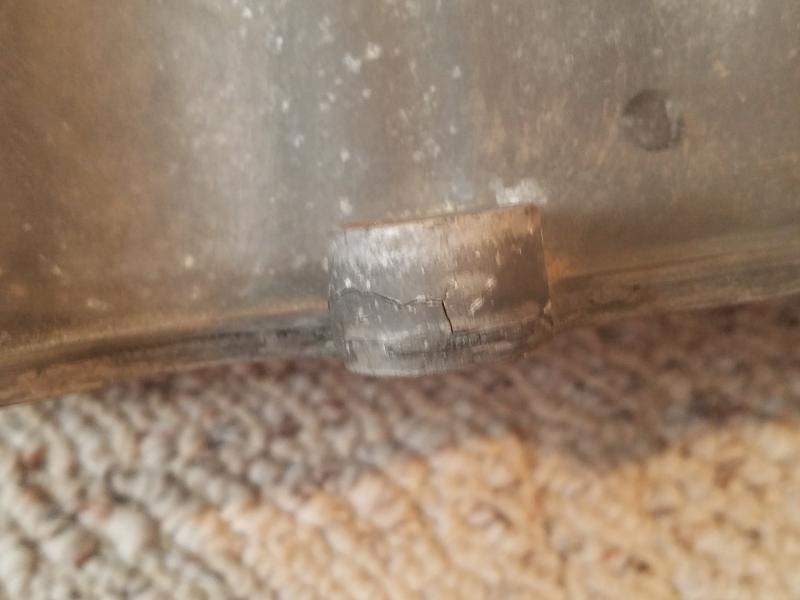

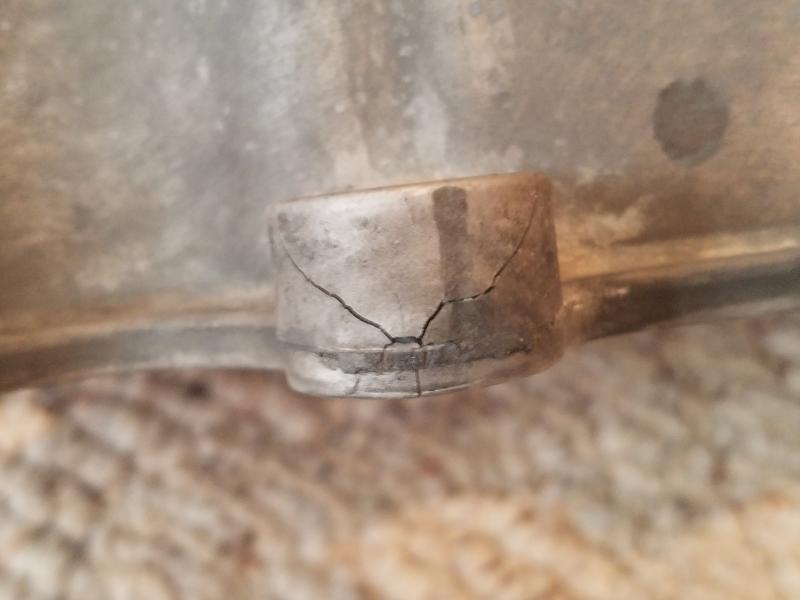

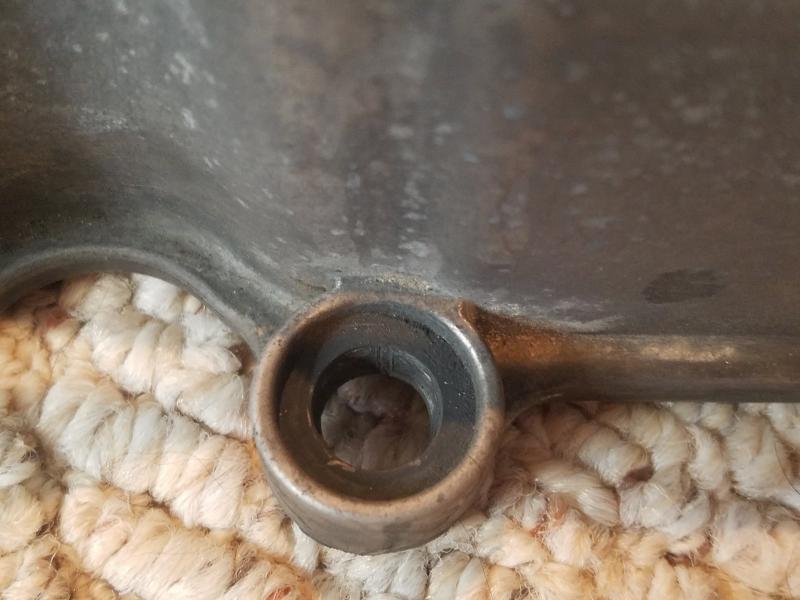

 I was cleaning the valve covers in preparation to paint, and noticed cracking around two of the bolt holes:


Is this something I should be concerned about?
Back To Top PM Quote Reply

 Posted: Mon Mar 19th, 2018 05:58 pm
PM Quote Reply
2nd Post
Tsquare
Member


Joined: Fri Nov 10th, 2017
Location: Suwanee, Georgia USA
Posts: 1540
Name:
Occupation: Controlled Insanity ...
Interests:
Status:
Offline
Reputation:
Reputation Points: 1540
Member's Gallery
 I would try to tig them to see if it can be repaired or start looking for a new set.



____________________
Tony
NE ATL
'04 XLT regular cab 3.slo stepside
Semi retirement
Back To Top PM Quote Reply

 Posted: Mon Mar 19th, 2018 06:52 pm
PM Quote Reply
3rd Post
JAMMAN

Owns A Torsen


Joined: Mon Sep 18th, 2017
Location: Grove City, Ohio USA
Posts: 6530
Name: Jim ...
Occupation: 5 axis cnc programmer ...
Interests: RBV's ...
Status:
Offline
Reputation:
Reputation Points: 6530
Member's Gallery
 Classic over tightening. First thing most people do when they see a leak from their valve covers is give the screws another turn. Tigging is a good idea but most humans don't have one in their garage. Next step would be go to a local salvage yard and yank a set BUT some people don't have a salvage yard close. I bet E-bay has them, do you do e-bay?



____________________
00 XLT 4WD RCSB 3.GO! Jalapeño
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.
Back To Top PM Quote Reply

 Posted: Tue Mar 20th, 2018 02:29 am
PM Quote Reply
4th Post
Undrstm8ed
Seasoned...


Joined: Sat Oct 21st, 2017
Location: Near The Pointy End , USA
Posts: 1313
Name:
Occupation:
Interests: Life, Experiences, and adventures. ...
Status:
Offline
Reputation:
Reputation Points: 1313
Member's Gallery
 Are those even metal/alloy? They look like TMC or some form of polystyrene plastic of sorts. And as Jamman noted the classic over tightening, those bolts are meant to be tq'd at 89 in-lbs. or 7-8 ft lbs if that's easier



____________________
"Be never first, never last and never noticed." - Unknown

"The slave is held most securely when he is held by the chains of his own will and of his own fears, and when he is locked down by his own slavish desires for a comfortable life." - Michael Bunker

"Mundus vult decipi, ergo decipiatur" - ~ attributed to Petronius (Gaius Petronius Arbiter (ca. 27–66 AD))
Roman courtier during the reign of Nero.

"Those who expect to reap the blessings of freedom, must, like men, undergo the fatigue of supporting it." - Thomas Paine


~ Undrstm8ed Truckumentry Write Up Pg.

~ Undrstm8ed Trailermentry Write Up Pg.
.
Back To Top PM Quote Reply

 Posted: Tue Mar 20th, 2018 09:57 am
PM Quote Reply
5th Post
RCR4V3N
Member


Joined: Sun Jan 14th, 2018
Location: Montgomery, Alabama USA
Posts: 46
Name:
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 46
Member's Gallery
 They're aluminum. Factory tightened. Guess I'll add valve covers to the list.
Back To Top PM Quote Reply

 Posted: Tue Mar 20th, 2018 01:16 pm
PM Quote Reply
6th Post
Undrstm8ed
Seasoned...


Joined: Sat Oct 21st, 2017
Location: Near The Pointy End , USA
Posts: 1313
Name:
Occupation:
Interests: Life, Experiences, and adventures. ...
Status:
Offline
Reputation:
Reputation Points: 1313
Member's Gallery
 Interesting.. If thats factory spec tightening  I wonder if that's been like that since it's' build day?

Last edited on Tue Mar 20th, 2018 01:17 pm by Undrstm8ed



____________________
"Be never first, never last and never noticed." - Unknown

"The slave is held most securely when he is held by the chains of his own will and of his own fears, and when he is locked down by his own slavish desires for a comfortable life." - Michael Bunker

"Mundus vult decipi, ergo decipiatur" - ~ attributed to Petronius (Gaius Petronius Arbiter (ca. 27–66 AD))
Roman courtier during the reign of Nero.

"Those who expect to reap the blessings of freedom, must, like men, undergo the fatigue of supporting it." - Thomas Paine


~ Undrstm8ed Truckumentry Write Up Pg.

~ Undrstm8ed Trailermentry Write Up Pg.
.
Back To Top PM Quote Reply

 Posted: Tue Mar 20th, 2018 06:32 pm
PM Quote Reply
7th Post
JAMMAN

Owns A Torsen


Joined: Mon Sep 18th, 2017
Location: Grove City, Ohio USA
Posts: 6530
Name: Jim ...
Occupation: 5 axis cnc programmer ...
Interests: RBV's ...
Status:
Offline
Reputation:
Reputation Points: 6530
Member's Gallery
 Yes, a friday after lunch on payday.



____________________
00 XLT 4WD RCSB 3.GO! Jalapeño
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.
Back To Top PM Quote Reply

 Posted: Tue Mar 20th, 2018 09:13 pm
PM Quote Reply
8th Post
Undrstm8ed
Seasoned...


Joined: Sat Oct 21st, 2017
Location: Near The Pointy End , USA
Posts: 1313
Name:
Occupation:
Interests: Life, Experiences, and adventures. ...
Status:
Offline
Reputation:
Reputation Points: 1313
Member's Gallery
 Ahhhhh good ole' Payday-Drunk-spec  3 or 4 clickity clicks..



____________________
"Be never first, never last and never noticed." - Unknown

"The slave is held most securely when he is held by the chains of his own will and of his own fears, and when he is locked down by his own slavish desires for a comfortable life." - Michael Bunker

"Mundus vult decipi, ergo decipiatur" - ~ attributed to Petronius (Gaius Petronius Arbiter (ca. 27–66 AD))
Roman courtier during the reign of Nero.

"Those who expect to reap the blessings of freedom, must, like men, undergo the fatigue of supporting it." - Thomas Paine


~ Undrstm8ed Truckumentry Write Up Pg.

~ Undrstm8ed Trailermentry Write Up Pg.
.
Back To Top PM Quote Reply

 Posted: Fri Mar 23rd, 2018 03:19 pm
PM Quote Reply
9th Post
Scrambler82
Old Bastard !


Joined: Fri Dec 22nd, 2017
Location: California USA
Posts: 2108
Name: Grev B ...
Occupation: Quality Assurance Engineer ...
Interests: Rangers, Photography, Metal Bending ...
Status:
Offline
Reputation:
Reputation Points: 2108
Member's Gallery
 RCR4V3N wrote:
I was cleaning the valve covers in preparation to paint, and noticed cracking around two of the bolt holes:


Is this something I should be concerned about?

Were they leaking ?

R U planning to get another pair ?
If you do, take a grinder to the outer edges, clean up the casting marks, no sharp EDGES !



____________________
Ltr,
2003 EDGE, Std Cab, Steppie, E4 Red, 5sp, 4x
5" SuperLift, 33" x 12.50 x 15"
Hurst Shifter
Mod'd Backrack to fit Steppie
Front and Rear Bumpers by Custom 4x4 Fabrication, OK; now Mike's Welding and Fabrication.
Working on more Mods, just need more time, longer days would work !
Back To Top PM Quote Reply

 Posted: Fri Mar 23rd, 2018 06:46 pm
PM Quote Reply
10th Post
RCR4V3N
Member


Joined: Sun Jan 14th, 2018
Location: Montgomery, Alabama USA
Posts: 46
Name:
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 46
Member's Gallery
 No, the engine spun some bearings. I was concerned about reusing the originals with the cracks for fear of a leak on the new block.
A new pair is ~$150 from Ford. A small price to pay for piece of mind later on.
Back To Top PM Quote Reply

 Posted: Sat Mar 24th, 2018 01:25 am
PM Quote Reply
11th Post
Scrambler82
Old Bastard !


Joined: Fri Dec 22nd, 2017
Location: California USA
Posts: 2108
Name: Grev B ...
Occupation: Quality Assurance Engineer ...
Interests: Rangers, Photography, Metal Bending ...
Status:
Offline
Reputation:
Reputation Points: 2108
Member's Gallery
 RCR4V3N wrote:
No, the engine spun some bearings. I was concerned about reusing the originals with the cracks for fear of a leak on the new block.
A new pair is ~$150 from Ford. A small price to pay for piece of mind later on.
I understand, I will be buying a new trans instead of trying to use a JY Unit, just to get it right the first time !

Clean up the Valve Covers before install, grind down the casting marks, smooth out any roughness.

What about a little Hydro-Graphics... would look good.



____________________
Ltr,
2003 EDGE, Std Cab, Steppie, E4 Red, 5sp, 4x
5" SuperLift, 33" x 12.50 x 15"
Hurst Shifter
Mod'd Backrack to fit Steppie
Front and Rear Bumpers by Custom 4x4 Fabrication, OK; now Mike's Welding and Fabrication.
Working on more Mods, just need more time, longer days would work !
Back To Top PM Quote Reply

 Posted: Sat Mar 24th, 2018 01:38 am
PM Quote Reply
12th Post
MaDMaXX

Hails from the land of rust!


Joined: Sat Oct 21st, 2017
Location: Oregon USA
Posts: 1368
Name:
Occupation:
Interests: Motorsport/Firearms/IT ...
Status:
Offline
Reputation:
Reputation Points: 1368
Member's Gallery
 It'll get too hot for hydro graphics.



____________________
2002 - 3.0 - 4x2 - Edge

Upgrades/Maintenance log
Back To Top PM Quote Reply

 Posted: Sat Mar 24th, 2018 01:42 am
PM Quote Reply
13th Post
Scrambler82
Old Bastard !


Joined: Fri Dec 22nd, 2017
Location: California USA
Posts: 2108
Name: Grev B ...
Occupation: Quality Assurance Engineer ...
Interests: Rangers, Photography, Metal Bending ...
Status:
Offline
Reputation:
Reputation Points: 2108
Member's Gallery
 MaDMaXX wrote:
It'll get too hot for hydro graphics.
I don't know for sure on that but I thought I have seenHydro-graphics on engine before... !?!



____________________
Ltr,
2003 EDGE, Std Cab, Steppie, E4 Red, 5sp, 4x
5" SuperLift, 33" x 12.50 x 15"
Hurst Shifter
Mod'd Backrack to fit Steppie
Front and Rear Bumpers by Custom 4x4 Fabrication, OK; now Mike's Welding and Fabrication.
Working on more Mods, just need more time, longer days would work !
Back To Top PM Quote Reply

 Posted: Sat Mar 24th, 2018 01:47 am
PM Quote Reply
14th Post
MaDMaXX

Hails from the land of rust!


Joined: Sat Oct 21st, 2017
Location: Oregon USA
Posts: 1368
Name:
Occupation:
Interests: Motorsport/Firearms/IT ...
Status:
Offline
Reputation:
Reputation Points: 1368
Member's Gallery
 Hmm, i can't say, but i'll also add that oil/vapours won't help it either :(



____________________
2002 - 3.0 - 4x2 - Edge

Upgrades/Maintenance log
Back To Top PM Quote Reply
