Can’t access computer       #: 1407
 Moderated by: Mike69, MaDMaXX,
New Topic Reply
 Rate Topic
 Posted: Tue Nov 20th, 2018 08:32 am
PM Quote Reply
1st Post
4.0power
Member


Joined: Sun Nov 5th, 2017
Location: USA
Posts: 496
Name:
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 496
Member's Gallery
 just bought a 2003 2.3 duratec auto transmission 131k miles, has a check engine light. Go to scan it, scanner won't link up. Check all the fuses, all are good. I'm using a snap on scanner. The truck starts (although it takes a couple seconds) and runs, shifts fine. What should I do?



____________________
2002 xlt 4.0 5r55e 4x4 4.10 rear disc brake swap from sn95 **currently swapping in a 5.0***
2003 2.3 2wd 5 speed single cab dropped 9 inches looks like crap rides like crap but for some reason it’s cool to me
2004 gmc 2500hd 6.6 diesel LLY
1989 foxbody 347 stroker t5 trans
Back To Top PM Quote Reply

 Posted: Tue Nov 20th, 2018 10:10 am
PM Quote Reply
2nd Post
410customs

Idahome


Joined: Wed May 2nd, 2018
Location: Panhandle, Idaho USA
Posts: 2165
Name: Jamie ...
Occupation: Elevator Design Worlds Tallest Buildings ...
Interests: Ranger Based Vehicles and OFFROAD ...
Status:
Offline
Reputation:
Reputation Points: 2165
Member's Gallery
 Do you have power at the AUX power point?
I would check the fuses again

The OBD2 port gets its power from the orange wire, this is on the same circuit as your cig lighter



____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks
Back To Top PM Quote Reply

 Posted: Tue Nov 20th, 2018 10:24 am
PM Quote Reply
3rd Post
4.0power
Member


Joined: Sun Nov 5th, 2017
Location: USA
Posts: 496
Name:
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 496
Member's Gallery
 The both of the cig lighters have power to them. I don't know if there is power at the orange wire...



____________________
2002 xlt 4.0 5r55e 4x4 4.10 rear disc brake swap from sn95 **currently swapping in a 5.0***
2003 2.3 2wd 5 speed single cab dropped 9 inches looks like crap rides like crap but for some reason it’s cool to me
2004 gmc 2500hd 6.6 diesel LLY
1989 foxbody 347 stroker t5 trans
Back To Top PM Quote Reply

 Posted: Wed Nov 21st, 2018 11:01 am
PM Quote Reply
4th Post
410customs

Idahome


Joined: Wed May 2nd, 2018
Location: Panhandle, Idaho USA
Posts: 2165
Name: Jamie ...
Occupation: Elevator Design Worlds Tallest Buildings ...
Interests: Ranger Based Vehicles and OFFROAD ...
Status:
Offline
Reputation:
Reputation Points: 2165
Member's Gallery
 Check for 12V at the orange wire on your OBD2 port

You can try putting 12V to the orange wire and see if the scanner powers up and talks to the PCM

or try a different scanner? Could it be an issue with that snap on? I would check the fuses over again real good...use a test light or multimeter make sure the circuits are powered



____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks
Back To Top PM Quote Reply

 Posted: Wed Nov 21st, 2018 12:27 pm
PM Quote Reply
5th Post
4.0power
Member


Joined: Sun Nov 5th, 2017
Location: USA
Posts: 496
Name:
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 496
Member's Gallery
 If there is not power at that wire, what do I then do?



____________________
2002 xlt 4.0 5r55e 4x4 4.10 rear disc brake swap from sn95 **currently swapping in a 5.0***
2003 2.3 2wd 5 speed single cab dropped 9 inches looks like crap rides like crap but for some reason it’s cool to me
2004 gmc 2500hd 6.6 diesel LLY
1989 foxbody 347 stroker t5 trans
Back To Top PM Quote Reply

 Posted: Wed Nov 21st, 2018 06:10 pm
PM Quote Reply
6th Post
410customs

Idahome


Joined: Wed May 2nd, 2018
Location: Panhandle, Idaho USA
Posts: 2165
Name: Jamie ...
Occupation: Elevator Design Worlds Tallest Buildings ...
Interests: Ranger Based Vehicles and OFFROAD ...
Status:
Offline
Reputation:
Reputation Points: 2165
Member's Gallery
 You need to check continuity and for dead shorts on the two wires that connect the PCM directly to the OBD port
There are two signal wires for the BUS system a + and a -
They are wound together.

Basically using multi meter, make sure there are no breaks in these two wires between the PCM and the port

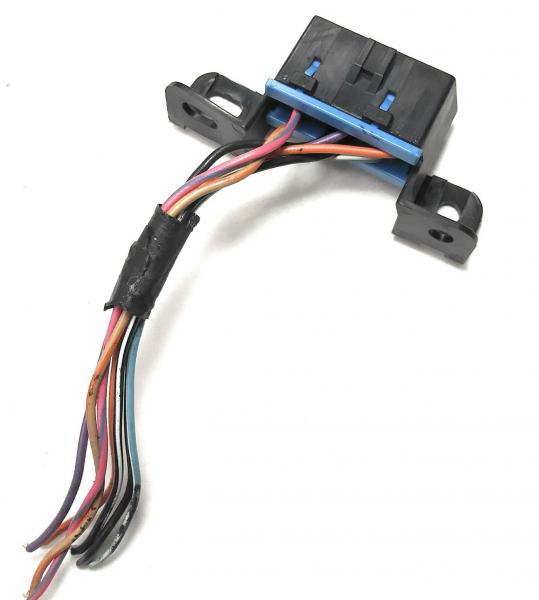

See the pink with light blue and tan with Orange?
These are the serial BUS + and - wires
they go directly to your PCM and other modules

Pins 15 and 16 at your PCM:

Last edited on Wed Nov 21st, 2018 06:14 pm by 410customs



____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks
Back To Top PM Quote Reply

 Posted: Wed Nov 21st, 2018 07:21 pm
PM Quote Reply
7th Post
black06xlt
Coal miner


Joined: Sat Nov 25th, 2017
Location: Flushing, Ohio USA
Posts: 1738
Name:
Occupation:
Interests: my wife my kids ford rangers ...
Status:
Offline
Reputation:
Reputation Points: 1738
Member's Gallery
 I have seen the wires on the back of data link plug become loose. Check the pins



____________________
1995 ranger splash (pieces)
Back To Top PM Quote Reply

 Posted: Fri Nov 23rd, 2018 03:23 pm
PM Quote Reply
8th Post
4.0power
Member


Joined: Sun Nov 5th, 2017
Location: USA
Posts: 496
Name:
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 496
Member's Gallery
 Well, I just got done putting a new heater core in the truck. Hook the battery up, fired it up, no check engine light. And I can now access the computer. Drove it a good 30 miles as well. I'm not sure what's up with this thing lol.



____________________
2002 xlt 4.0 5r55e 4x4 4.10 rear disc brake swap from sn95 **currently swapping in a 5.0***
2003 2.3 2wd 5 speed single cab dropped 9 inches looks like crap rides like crap but for some reason it’s cool to me
2004 gmc 2500hd 6.6 diesel LLY
1989 foxbody 347 stroker t5 trans
Back To Top PM Quote Reply

 Posted: Fri Nov 23rd, 2018 04:58 pm
PM Quote Reply
9th Post
410customs

Idahome


Joined: Wed May 2nd, 2018
Location: Panhandle, Idaho USA
Posts: 2165
Name: Jamie ...
Occupation: Elevator Design Worlds Tallest Buildings ...
Interests: Ranger Based Vehicles and OFFROAD ...
Status:
Offline
Reputation:
Reputation Points: 2165
Member's Gallery
 Self healing trucks!! My favorite kind
