2004 Ford Ranger EDGE 3.0L V6 5-speed 4x2 with 4.10 open rear

Owned the truck since new (Oct. 2003). Back in 2013 did an oil change and noticed I only got a little over a quart out. The engine was quiet, no warning lights on the dash, figure its fine. Traced back to a bad Motorcraft oil filter that had expanded and wasn't sealing against the block. About 200 miles later, on my way to work, pull off the interstate and hear the engine knocking. Oil pressure light comes on. Check the oil, full. Get it towed home and pull the oil pan. Find the #6 rod bearing clogging the oil pickup screen. (Lost that photo.)

Start asking around, get quoted somewhere between $3200-$3600 just to throw a junkyard or questionable reman engine in. No place local can do a rebuild.
So truck sits in the back yard for two years before getting moved into the garage to start the engine swap at home.

Last edited on Tue Mar 6th, 2018 06:52 pm by RCR4V3N

Already liked -

Quote

Posted: Tue Mar 6th, 2018 07:51 pm

Quote

2^nd Post

Dusten
Member

Joined: Sat Jan 13th, 2018

Location: Lake Goodwin, Washington USA

Posts: 614

Name:

Occupation:

Interests: cars, trucks, running ...

Status:

Offline

Reputation:

Reputation Points: 614

Member's Gallery

Where are you located, a friend with a good shop could do that swap in a day, maybe two with they are competent

____________________
2001 Ford Lightning - Built Motor - Built Trans - 2.9 Whipple - E85 - Custom Interior - 537/632 - 11.40 @ 119.6(old setup)
1968 Ford Mustang "Gold Nugget Special"
2018 Ford Mustang GT PP1
1999 Ranger
https://www.youtube.com/user/lightningdusten

Already liked -

Quote

Posted: Wed Mar 7th, 2018 05:38 pm

Quote

3^rd Post

MaDMaXX

Hails from the land of rust!

Joined: Sat Oct 21st, 2017

Location: Oregon USA

Posts: 1368

Name:

Occupation:

Interests: Motorsport/Firearms/IT ...

Status:

Offline

Reputation:

Reputation Points: 1368

Member's Gallery

Sounds like you're in the midst of doing this swap, do you have the next update?

____________________
2002 - 3.0 - 4x2 - Edge

Upgrades/Maintenance log

Already liked -

Quote

Posted: Wed Mar 7th, 2018 05:52 pm

Quote

4^th Post

NoPower

Don

Joined: Fri Oct 20th, 2017

Location: Grove City, Ohio USA

Posts: 590

Name: Don ...

Occupation: Retired ...

Interests: Grand Kids,Car Shows,DYI projects ...

Status:

Offline

Reputation:

Reputation Points: 590

Member's Gallery

Pull your cam synic out and make sure the gears were not chewed off. Thats what made NoPower die.

____________________
1984 ElCamino (Show Car)
2000 Mustang (Show Car)
1995 Chrysler Concord belong to Earl
2014 Ford Escape SE 1.6 Turbo
1958 Wife (Arm Candy)
15 Grand Children

Already liked -

Quote

Posted: Wed Mar 7th, 2018 06:12 pm

Quote

5^th Post

RCR4V3N
Member

Joined: Sun Jan 14th, 2018

Location: Montgomery, Alabama USA

Posts: 46

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 46

Member's Gallery

My main issue is cost. I just don't have the money to spend upfront for the replacement so I'm doing it home as I can. At this rate I might have it running by the time my oldest can start driving in 4 years.

Already liked -

Quote

Posted: Wed Mar 7th, 2018 08:00 pm

Quote

6^th Post

12Â° North Industries
SITE SPONSOR

Joined: Thu Nov 23rd, 2017

Location: Las Vegas, Nevada USA

Posts: 389

Name:

Occupation: Vehicle Upfitter ...

Interests: The great outdoors, nature, back to basics ...

Status:

Offline

Reputation:

Reputation Points: 389

Member's Gallery

RCR4V3N wrote:
My main issue is cost. I just don't have the money to spend upfront for the replacement so I'm doing it home as I can. At this rate I might have it running by the time my oldest can start driving in 4 years.
It seems as though your capable with tools and knowledge to work on it, time however may be another thing.

You could pull the crank/pistons and do a ring refresh, new bearings, and have them micro polish that particular journal and put an oversized bearing in that and replace a few odds and ends things in there along the way as you button it back up. Or locate a replacement salvage yard engine for a few hundred dollars and just swap it. It's faster, but now you have an engine with an unknown history to contend with in your mind.

Last edited on Wed Mar 7th, 2018 08:29 pm by 12Â° North Industries

____________________
North Industries
Las Vegas, Nevada 89118
Web http://www.12degnorth.com

Already liked -

Quote

Posted: Thu Mar 8th, 2018 07:50 pm

Quote

7^th Post

RCR4V3N
Member

Joined: Sun Jan 14th, 2018

Location: Montgomery, Alabama USA

Posts: 46

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 46

Member's Gallery

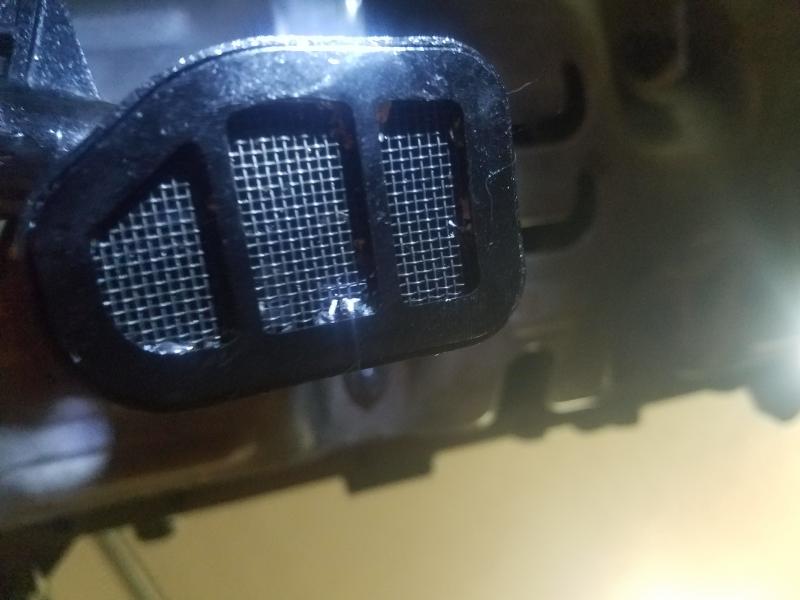

Get an engine crane and stand and start pulling the engine. Upper and lower radiator hoses need to be replaced. Get the transmission out, might as well replace the clutch since its out. Engine fan ($%&@!). After all the effort to get it off, I'm going electric. (Ford manual says to remove the fan with the belt and accessories attached, that might have made it easier.)

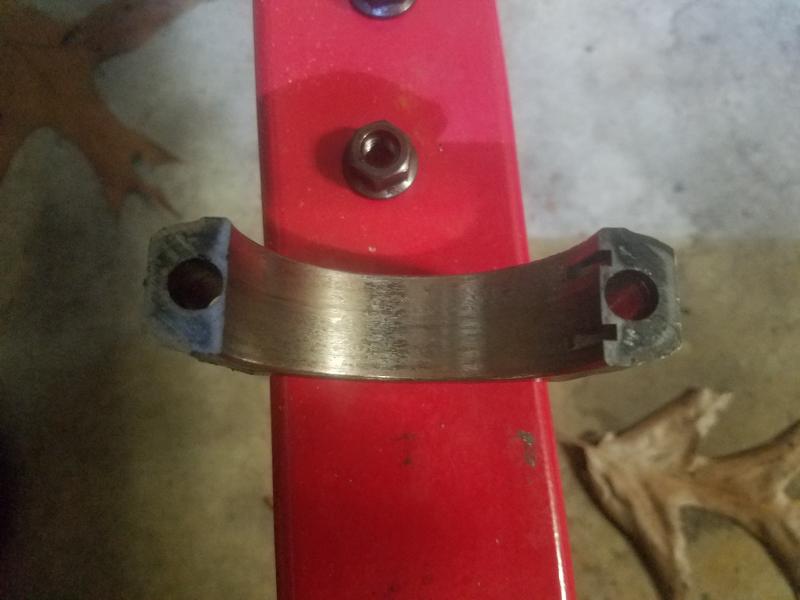

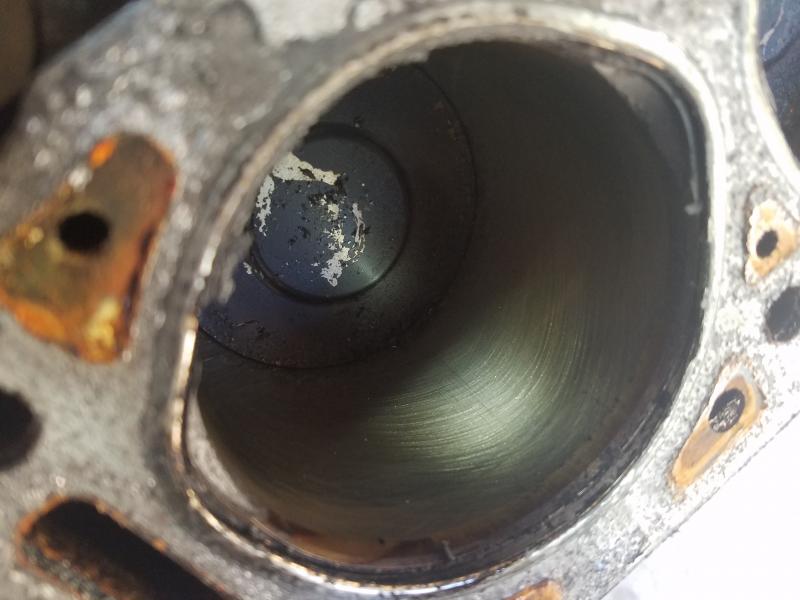

Finally get the engine on the stand, all the bearings are toast. However, everything else looks just fine.

So full reman long block it is.

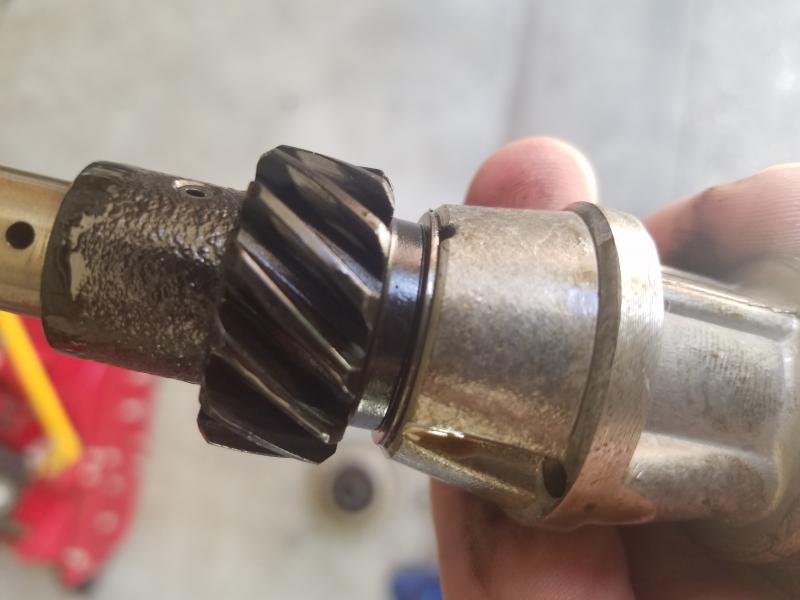

And the camshaft synchronizer:

Looks good.

Already liked -

Quote

Posted: Thu Mar 8th, 2018 08:45 pm

Quote

8^th Post

JAMMAN

Owns A Torsen

Joined: Mon Sep 18th, 2017

Location: Grove City, Ohio USA

Posts: 6436

Name: Jim ...

Occupation: 5 axis cnc programmer ...

Interests: RBV's ...

Status:

Offline

Reputation:

Reputation Points: 6436

Member's Gallery

It's a 3.0, if you have the cam synch out please just replace it. The gear can look great and it can still be bad and lock up.

____________________
00 XLT 4WD RCSB 3.GO! JalapeÃ±o
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.

Already liked -

Quote

Posted: Fri Mar 9th, 2018 06:26 pm

Quote

9^th Post

RCR4V3N
Member

Joined: Sun Jan 14th, 2018

Location: Montgomery, Alabama USA

Posts: 46

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 46

Member's Gallery

Yeah, its on the list. Getting nickle and dimed with all the extras beside the long block (and my desire to try an upgrade everything while I'm at it).

Already liked -

Quote

Posted: Sun Mar 11th, 2018 01:08 pm

Quote

10^th Post

RCR4V3N
Member

Joined: Sun Jan 14th, 2018

Location: Montgomery, Alabama USA

Posts: 46

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 46

Member's Gallery

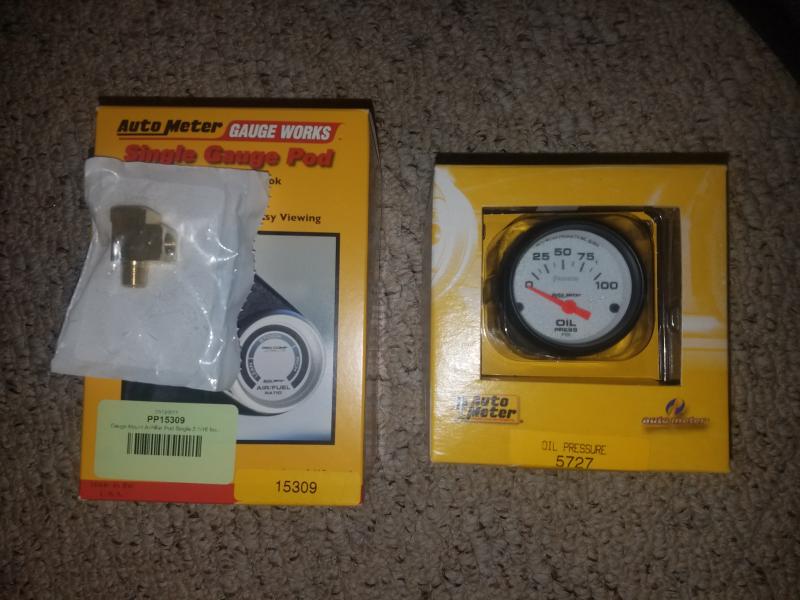

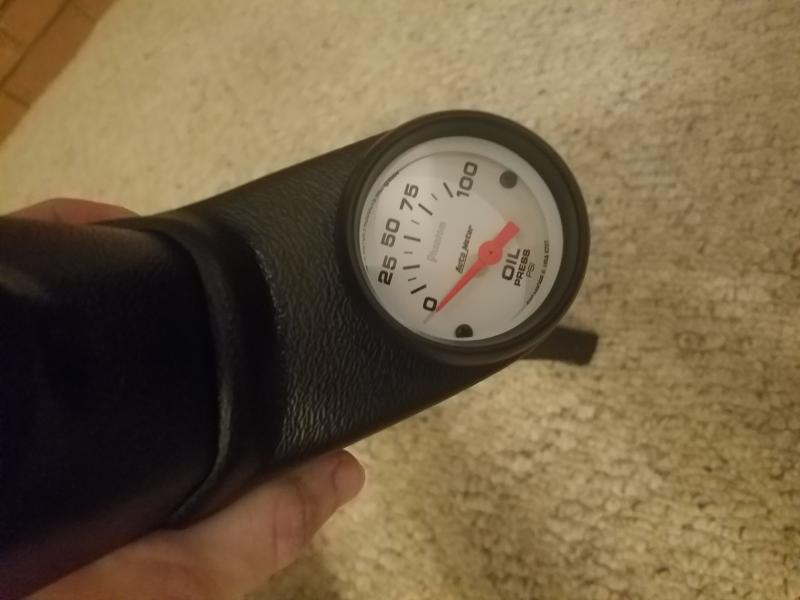

So first and most important, oil pressure gauge:

The 15309 gauge pod fits the 2004 trim:

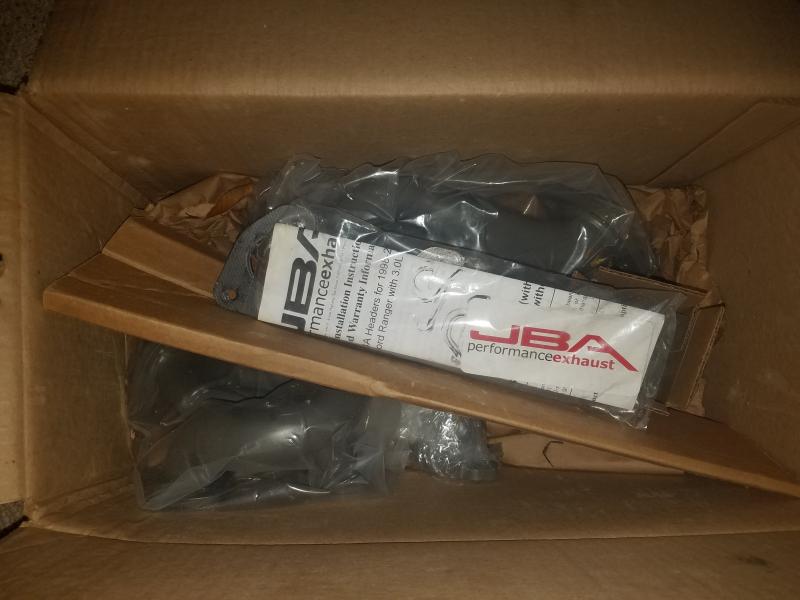

Got some JBA 1647S-1JT Titanium Ceramic headers for half:

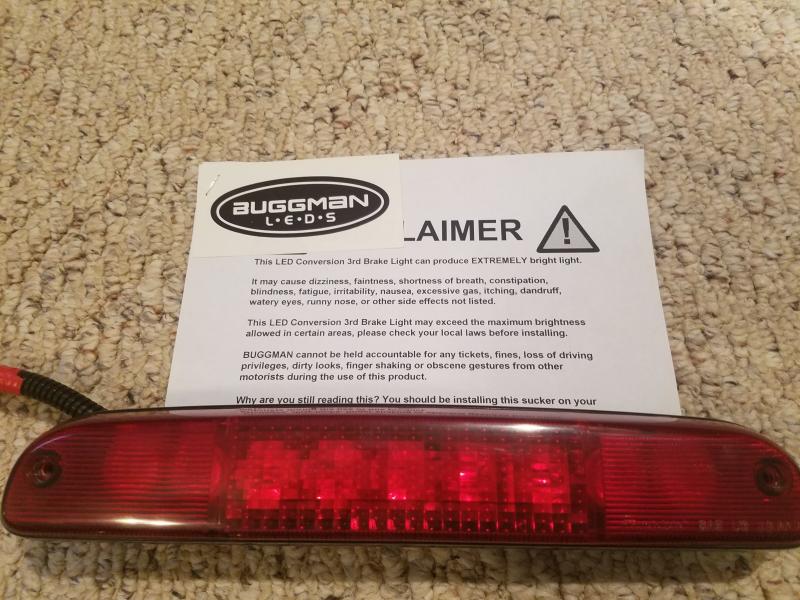

And Buggman was having a Holiday Sale:

Already liked - 1 like likes

MaDMaXX

Quote

Posted: Sun Mar 11th, 2018 01:11 pm

Quote

11^th Post

JAMMAN

Owns A Torsen

Joined: Mon Sep 18th, 2017

Location: Grove City, Ohio USA

Posts: 6436

Name: Jim ...

Occupation: 5 axis cnc programmer ...

Interests: RBV's ...

Status:

Offline

Reputation:

Reputation Points: 6436

Member's Gallery

LOL love the disclaimer he is a character eh?

I did a tutorial on installing that light with an end result video, if you have problems look in.

____________________
00 XLT 4WD RCSB 3.GO! JalapeÃ±o
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.

Already liked -

Quote

Posted: Mon Mar 12th, 2018 06:53 pm

Quote

12^th Post

RCR4V3N
Member

Joined: Sun Jan 14th, 2018

Location: Montgomery, Alabama USA

Posts: 46

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 46

Member's Gallery

Several years of sitting did their toll on the headlight and fog light lenses. The headlights are trashed. I restored the fog light lenses with the Sylvania Headlight Restoration Kit. They turned out really good, until they got exposed to something in the garage (WD-40, brake fluid, brake cleaner, paint, acetone, mineral spirits...?) :(

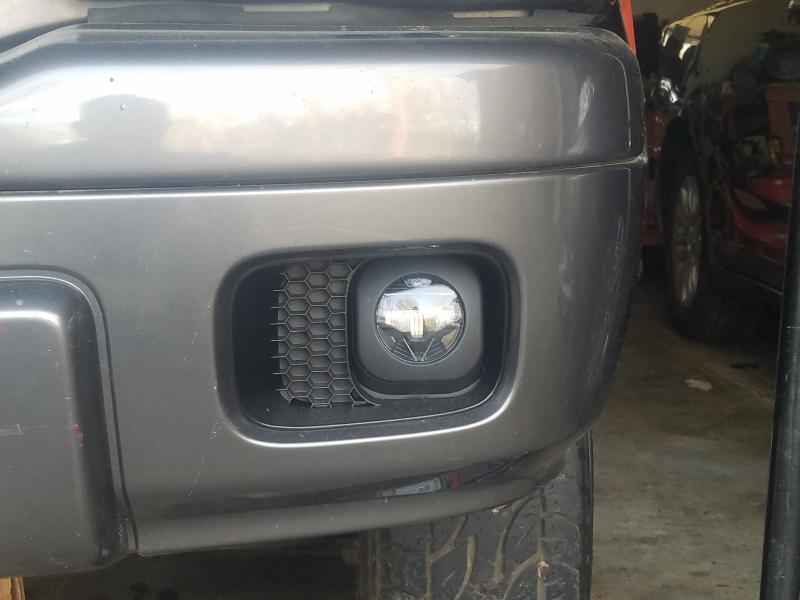

So I bought Morimoto XB LED Fog Light Projectors. Minor modification and some paint to match the fog surrounds:

Last edited on Tue Mar 13th, 2018 05:24 pm by RCR4V3N

Already liked -

Quote

Posted: Mon Mar 12th, 2018 09:54 pm

Quote

13^th Post

Tsquare
Member

Joined: Fri Nov 10th, 2017

Location: Suwanee, Georgia USA

Posts: 1540

Name:

Occupation: Controlled Insanity ...

Interests:

Status:

Offline

Reputation:

Reputation Points: 1540

Member's Gallery

I am seeing a lot of dead picture links.

____________________
Tony
NE ATL
'04 XLT regular cab 3.slo stepside
Semi retirement

Already liked -

Quote

Posted: Tue Mar 13th, 2018 04:23 am

Quote

14^th Post

chris

Wrench spinner

Joined: Thu Oct 5th, 2017

Location: Leigh On Sea

Posts: 642

Name: Chris ...

Occupation: Retired ...

Interests: Science, technology, horses ...

Status:

Online

Reputation:

Reputation Points: 642

Member's Gallery

Tsquare wrote:
I am seeing a lot of dead picture links.
It is Google! Links from their hosting are not image files - they don't have .jpg, .png etc suffixes.

I am looking into whether we can adapt to accept those links, but as always it is far better to upload images to our server via the gallery so the images are not subject to the vagaries of off site hosting.

____________________

MG power

Already liked -

Quote

Posted: Tue Mar 13th, 2018 06:09 am

Quote

15^th Post

JAMMAN

Owns A Torsen

Joined: Mon Sep 18th, 2017

Location: Grove City, Ohio USA

Posts: 6436

Name: Jim ...

Occupation: 5 axis cnc programmer ...

Interests: RBV's ...

Status:

Offline

Reputation:

Reputation Points: 6436

Member's Gallery

Chris wrote:
It is Google! Links from their hosting are not image files - they don't have .jpg, .png etc suffixes.

I am looking into whether we can adapt to accept those links, but as always it is far better to upload images to our server via the gallery so the images are not subject to the vagaries of off site hosting.

+26,972.4

____________________
00 XLT 4WD RCSB 3.GO! JalapeÃ±o
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.

Already liked -

Quote

Posted: Tue Mar 13th, 2018 07:16 am

Quote

16^th Post

chris

Wrench spinner

Joined: Thu Oct 5th, 2017

Location: Leigh On Sea

Posts: 642

Name: Chris ...

Occupation: Retired ...

Interests: Science, technology, horses ...

Status:

Online

Reputation:

Reputation Points: 642

Member's Gallery

Lol - thought that might get Jim wound up ! :cheers

____________________

MG power

Already liked -

Quote

Posted: Tue Mar 13th, 2018 05:30 pm

Quote

17^th Post

RCR4V3N
Member

Joined: Sun Jan 14th, 2018

Location: Montgomery, Alabama USA

Posts: 46

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 46

Member's Gallery

RCR4V3N wrote:
So first and most important, oil pressure gauge:

The 15309 gauge pod fits the 2004 trim:

Got some JBA 1647S-1JT Titanium Ceramic headers for half:

And Buggman was having a Holiday Sale:

FIX'D (Couldn't edit the original post.)

Already liked - 2 likes

MaDMaXX ,JAMMAN

Quote

Posted: Fri Apr 6th, 2018 06:33 pm

Quote

18^th Post

RCR4V3N
Member

Joined: Sun Jan 14th, 2018

Location: Montgomery, Alabama USA

Posts: 46

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 46

Member's Gallery

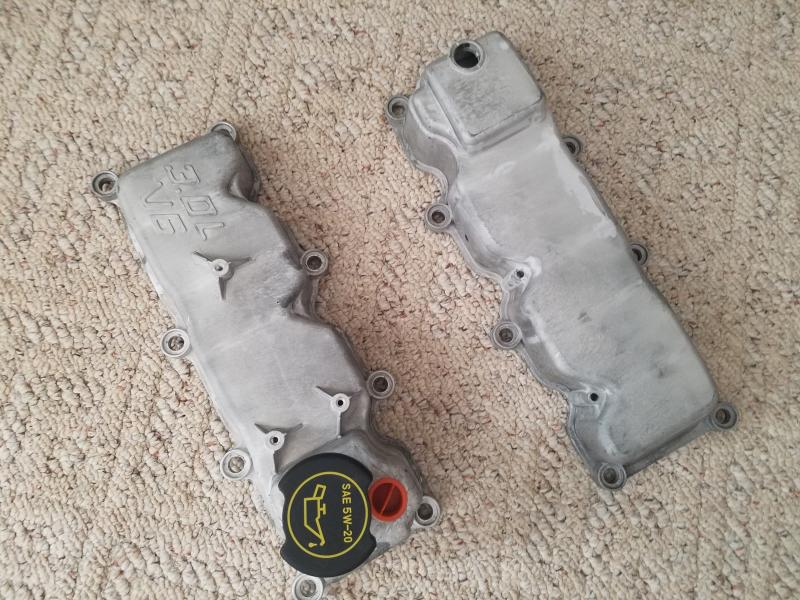

New valve covers came in today, with gaskets and hardware!

Already liked - 1 like likes

MaDMaXX

Quote

Posted: Fri May 11th, 2018 07:58 pm

Quote

19^th Post

RCR4V3N
Member

Joined: Sun Jan 14th, 2018

Location: Montgomery, Alabama USA

Posts: 46

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 46

Member's Gallery

I cleaned up the valve covers and attempted to paint them with PlastiKote Engine Enamel. It did not turn out well the first time. This stuff needs to oven cure before handling. I ended up doing the brackets and timing chain cover.

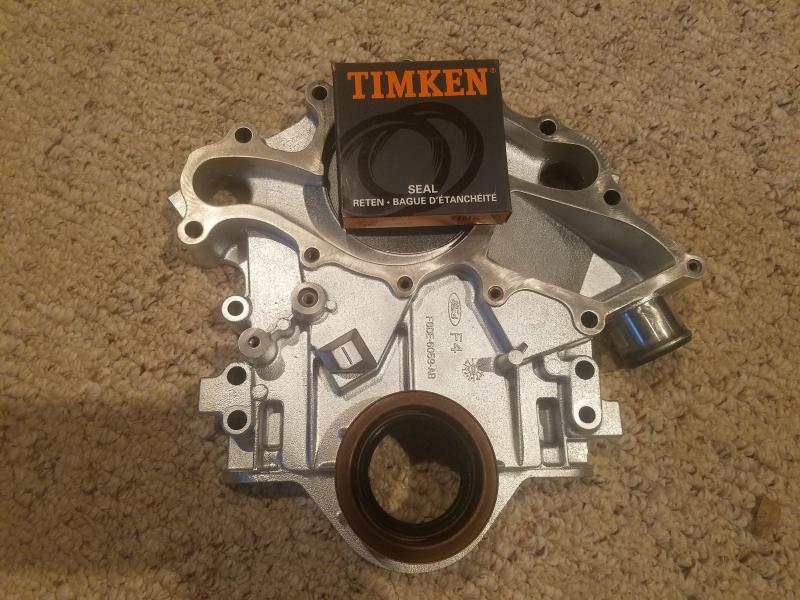

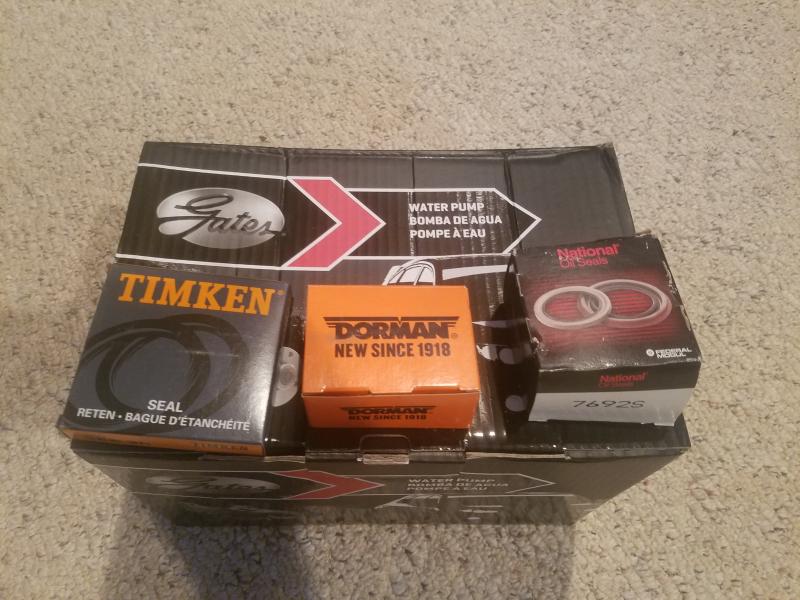

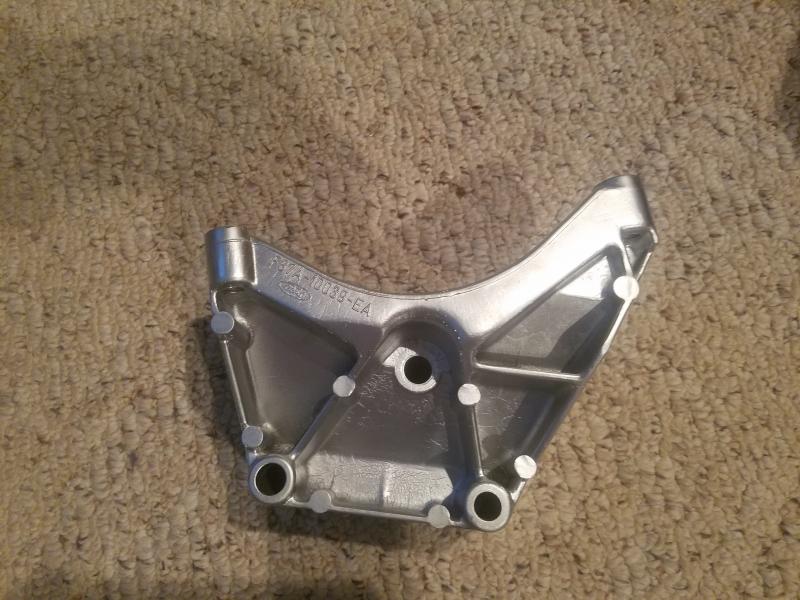

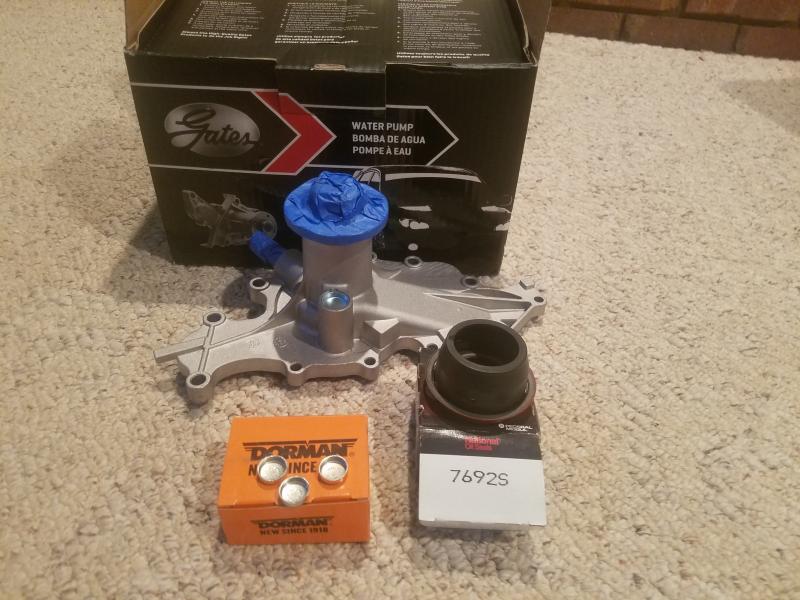

Ordered some new parts from RockAuto:

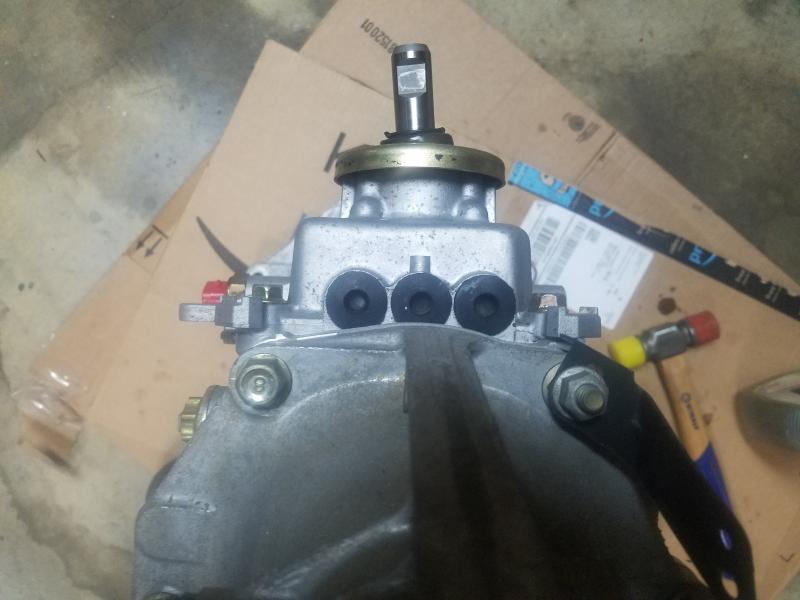

Replaced the problem rubber plugs in the M5ROD:

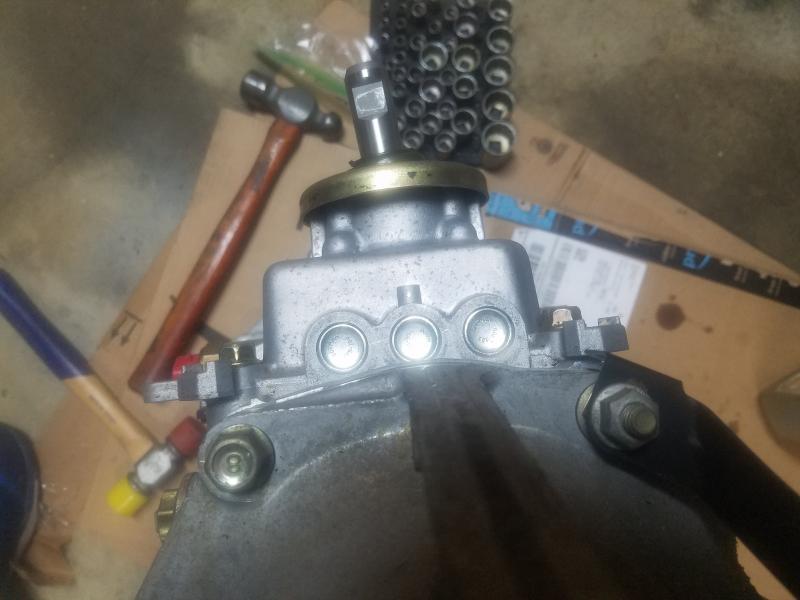

Doorman 555-108 3/8" steel expansion plugs. Hint: freeze them before installing.

Already liked - 1 like likes

JAMMAN

Quote

Posted: Sat May 12th, 2018 10:57 am

Quote

20^th Post

410customs

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

Member's Gallery

Nice work so far!!!

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked -

Quote

Posted: Sat May 12th, 2018 02:34 pm

Quote

21^st Post

Mike69

Mustang Nut

Joined: Sun Oct 22nd, 2017

Location: Horsepasture, USA

Posts: 1692

Name: Mike ...

Occupation: Semi-retired ...

Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...

Status:

Offline

Reputation:

Reputation Points: 1692

Member's Gallery

Looking good.

____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)

Already liked -

Quote

Current time is 08:47 am	Top
Ford-Rangers.com Ranger Forum > Tech Section > Member's Projects Showcase > Second Chance
Users viewing this topic

PHP Version: 8.2.28

Server version: 10.6.22-MariaDB
