Mike69's 69 Mustang project       #: 296
 Moderated by: NoPower, Mike69, MaDMaXX, Page:  First Page Previous Page  1  2  3  4  5  6  Next Page Last Page
New Topic Reply
 Rate Topic
 Posted: Mon Jan 22nd, 2018 05:32 pm
PM Quote Reply
51st Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery
 MaDMaXX wrote: This seems to be ticking along nicely, do you feel like you're making progress at least?

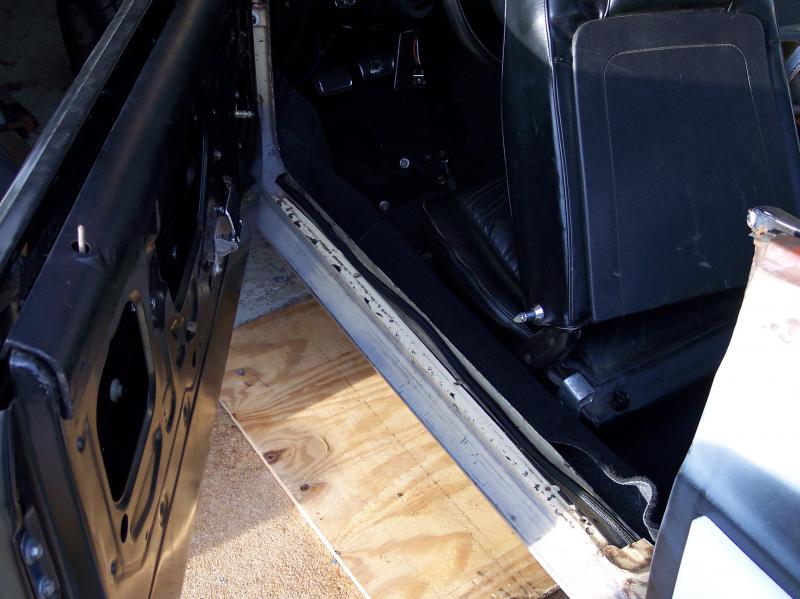

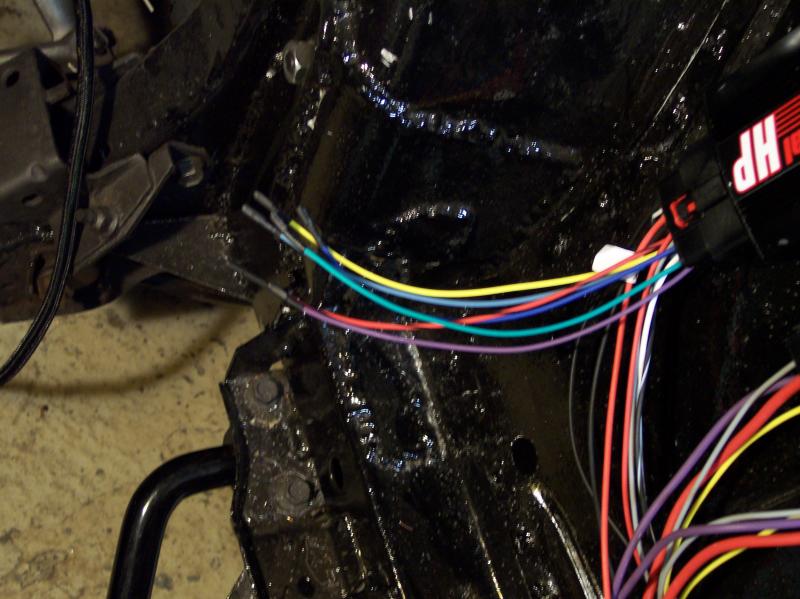

Yes I do. Today I hooked the rear body harness to the main harness wrapped it & ran it to the trunk along with the electric fuel pump power wire.



____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Mon Jan 22nd, 2018 06:29 pm
PM Quote Reply
52nd Post
mhoward
Hey look ~ they ~ bounce!


Joined: Sun Oct 22nd, 2017
Location: Evansville, USA
Posts: 2736
Name: Michael ...
Occupation: Technology Manager ...
Interests: Trucks / Guitars & Music / Things that go BANG ...
Status:
Offline
Reputation:
Reputation Points: 2736
Member's Gallery
 There is an old saying; "Just a little everyday". Projects like this progress slowly, but if you do just a little everyday, it is amazing what you get done. :)



____________________
-- Michael

2003 Ranger Edge / Extended Cab / Flareside / 3.0L FLEX / 5r44e Auto / 2WD / 8.8 LS 4:10 / Sonic Blue Pearl

So many mods... so little time...
Back To Top PM Quote Reply

 Posted: Sun Jan 28th, 2018 02:20 pm
PM Quote Reply
53rd Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery
 mhoward wrote: There is an old saying; "Just a little everyday". Projects like this progress slowly, but if you do just a little everyday, it is amazing what you get done. :)

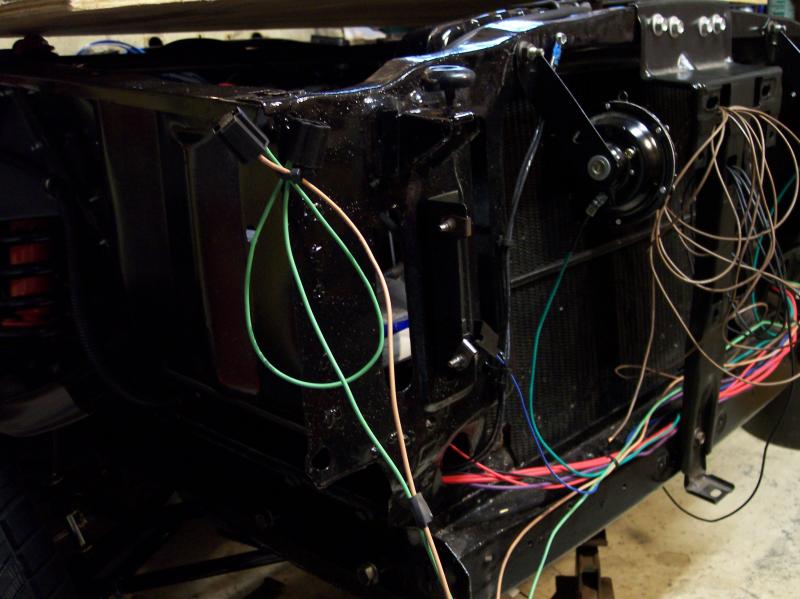

That is what I am doing a little each day. I was planning on the wiring taking the winter time. Yesterday & today I hooked the power wire to the washer pump, hooked the wire to the brake system warning switch, & hooked the wires to the horns, & hooked the power wire to the cooling fan relays.






____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Sun Jan 28th, 2018 07:11 pm
PM Quote Reply
54th Post
mhoward
Hey look ~ they ~ bounce!


Joined: Sun Oct 22nd, 2017
Location: Evansville, USA
Posts: 2736
Name: Michael ...
Occupation: Technology Manager ...
Interests: Trucks / Guitars & Music / Things that go BANG ...
Status:
Offline
Reputation:
Reputation Points: 2736
Member's Gallery
 It's coming right along!



____________________
-- Michael

2003 Ranger Edge / Extended Cab / Flareside / 3.0L FLEX / 5r44e Auto / 2WD / 8.8 LS 4:10 / Sonic Blue Pearl

So many mods... so little time...
Back To Top PM Quote Reply

 Posted: Thu Feb 1st, 2018 07:44 am
PM Quote Reply
55th Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery

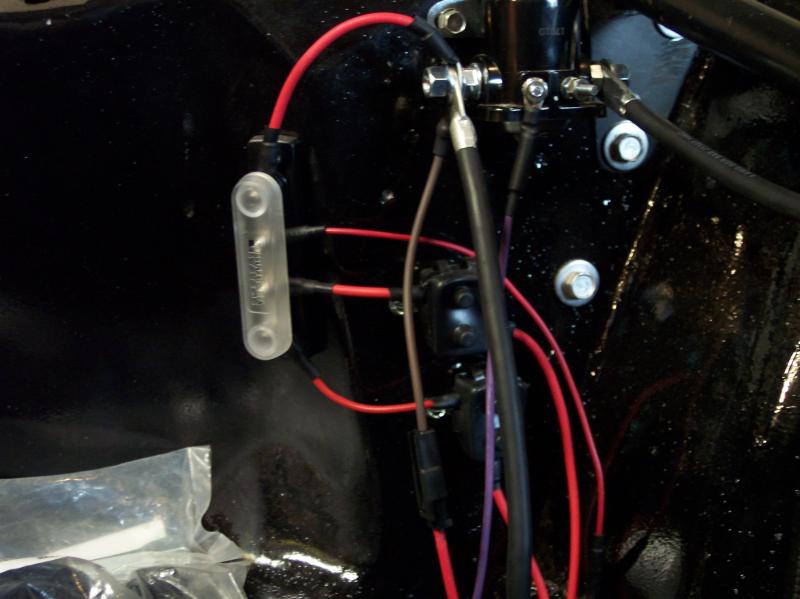

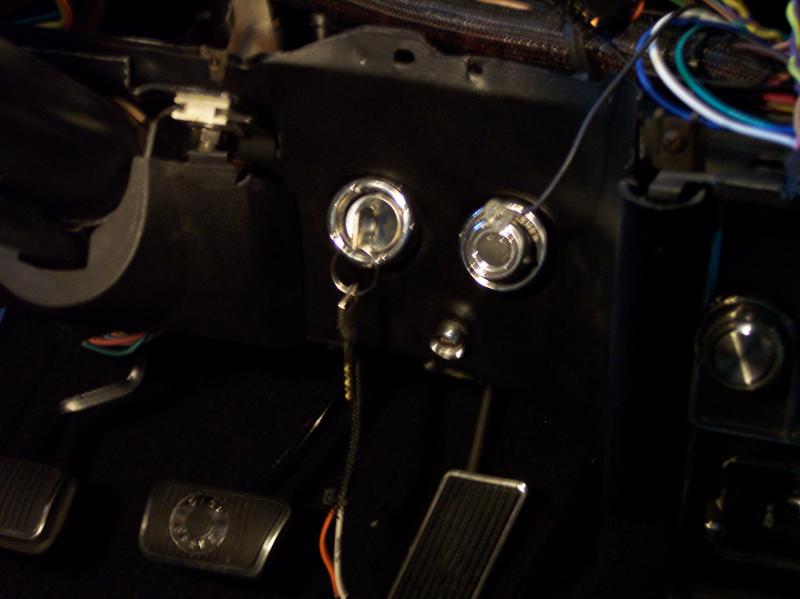

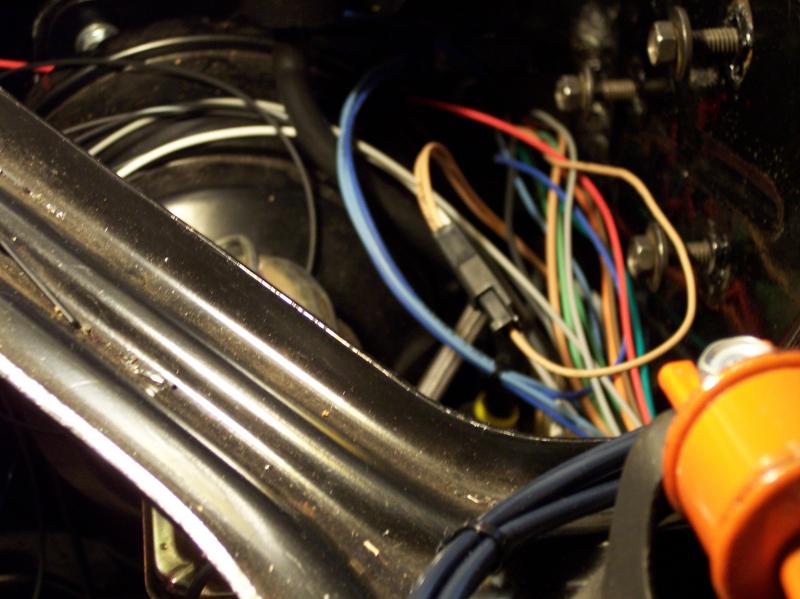

 Tuesday I spent a few hours in the garage & hooked up the power wires to the l/s & r/s hi & low beam head lights, & the r/s & l/s turn signals.



____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Sat Feb 3rd, 2018 08:54 pm
PM Quote Reply
56th Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery

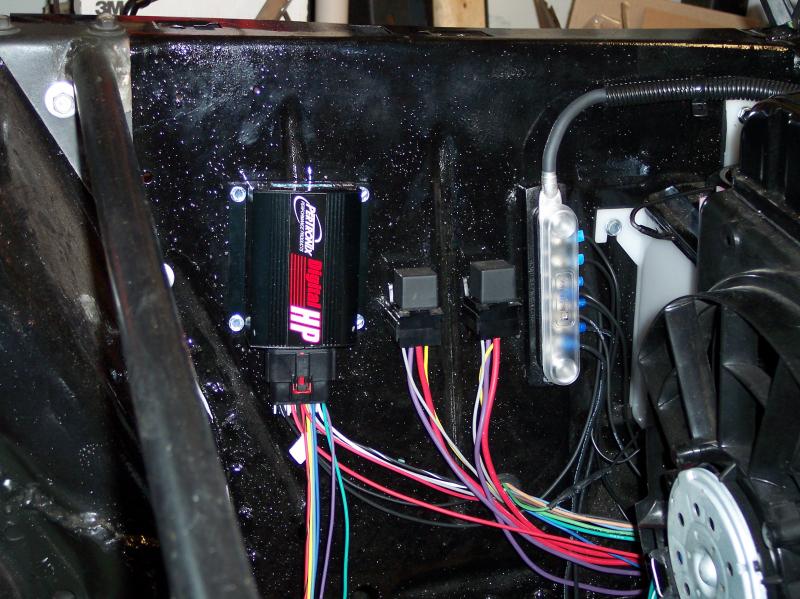

 Yesterday & today I finished the F/E wiring & installed the grounding block & ran all the ground wires.





____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Sun Feb 4th, 2018 08:35 pm
PM Quote Reply
57th Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery

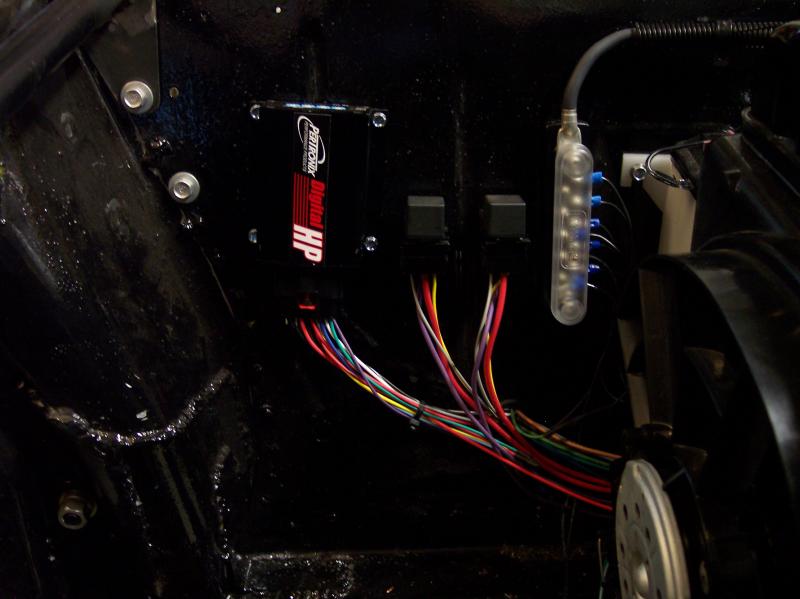

 Today I cut & capped all the unused wires from the ignition box & tied them to the harness.





____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Fri Feb 9th, 2018 08:12 pm
PM Quote Reply
58th Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery

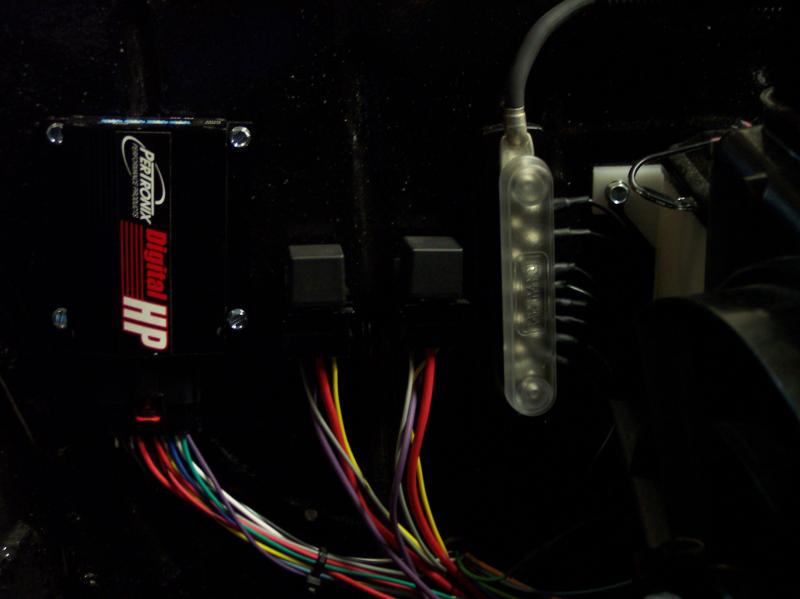

 This past week, I covered the connections on the grounding block, & the power distribution block in heat shrink tubing.




____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Sun Feb 11th, 2018 02:05 pm
PM Quote Reply
59th Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery
 This past Friday I dropped off the engine at the re-builder. Today I installed the ignition cylinder, & the wiper switch.



____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Sun Feb 11th, 2018 07:11 pm
PM Quote Reply
60th Post
Tsquare
Member


Joined: Fri Nov 10th, 2017
Location: Suwanee, Georgia USA
Posts: 1540
Name:
Occupation: Controlled Insanity ...
Interests:
Status:
Offline
Reputation:
Reputation Points: 1540
Member's Gallery
 Is that the standard 2 speed wiper or did you go for one of the intermittent models that are now available?



____________________
Tony
NE ATL
'04 XLT regular cab 3.slo stepside
Semi retirement
Back To Top PM Quote Reply

 Posted: Mon Feb 12th, 2018 02:37 am
PM Quote Reply
61st Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery
 Tsquare wrote: Is that the standard 2 speed wiper or did you go for one of the intermittent models that are now available?

It is a intermittent switch & module out of a 1985 full size Ford truck. The harness plug in the Mustang harness fits the switch without any mods.



____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Sat Feb 17th, 2018 09:15 pm
PM Quote Reply
62nd Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery

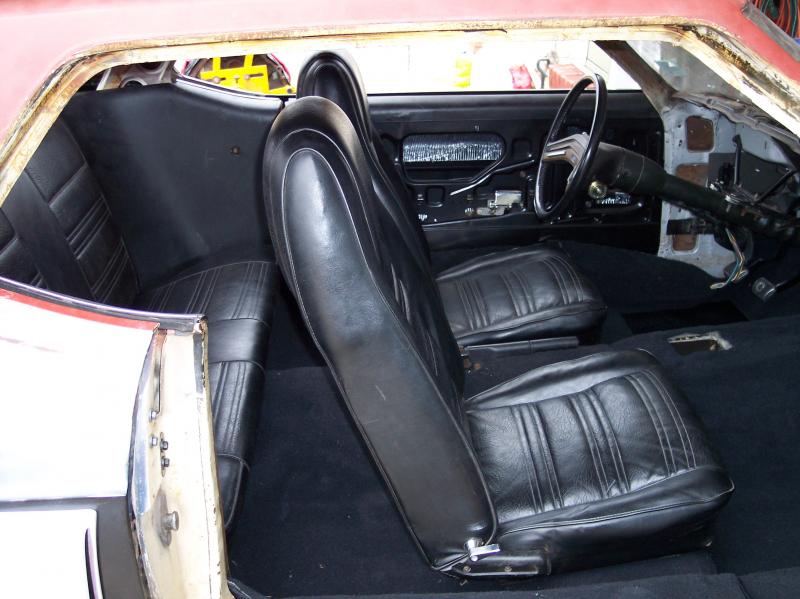

 I have been sick with the flu all week & only started feeling better today so I spent a little time in the garage finishing up the "custom" r/s Mach-1 dash panel for the Coupe.

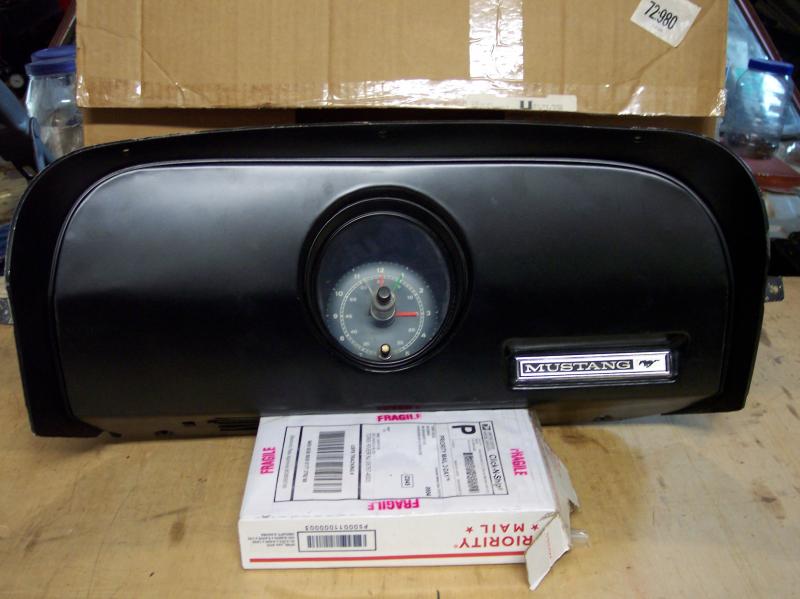

When I got the dash panel the wood grain applique was peeling so I decided to completely remove it & paint it satin black to match the l/s dash panel.



____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Wed Feb 28th, 2018 04:00 pm
PM Quote Reply
63rd Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery

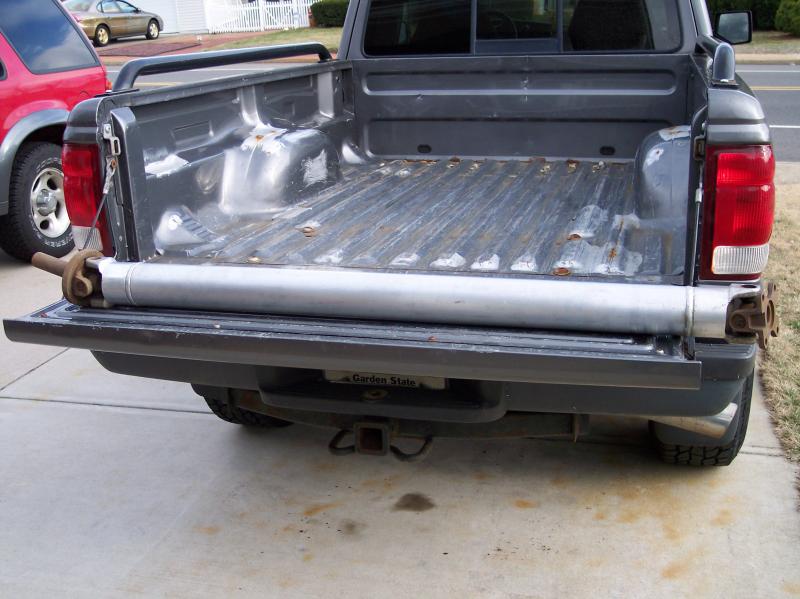

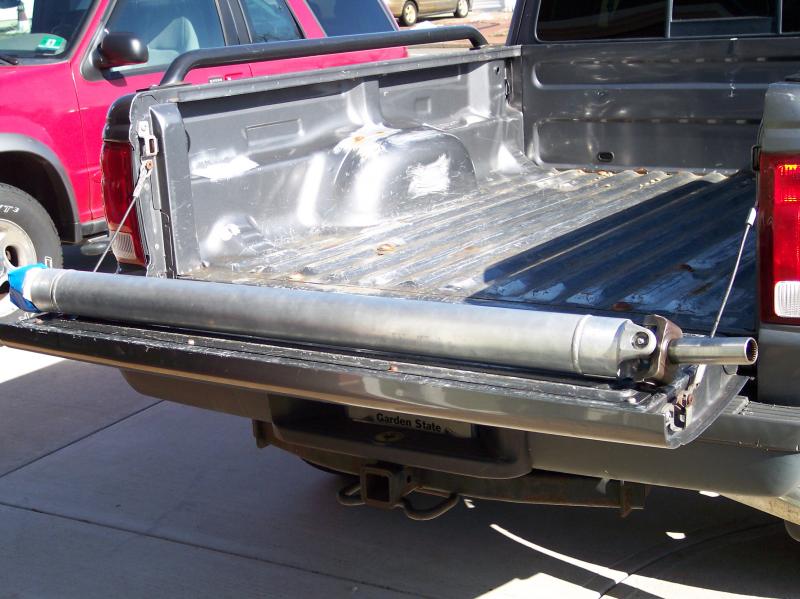

 I acquired a aluminum driveshaft for the Mustang out of a 2000 Explorer 2WD 4 door 4.0 V-6 which is the same length as the stock Mustang driveshaft. Now I just need to replace the u joints & install the yoke for the T-5 trans.





____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Mon Mar 26th, 2018 04:48 pm
PM Quote Reply
64th Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery

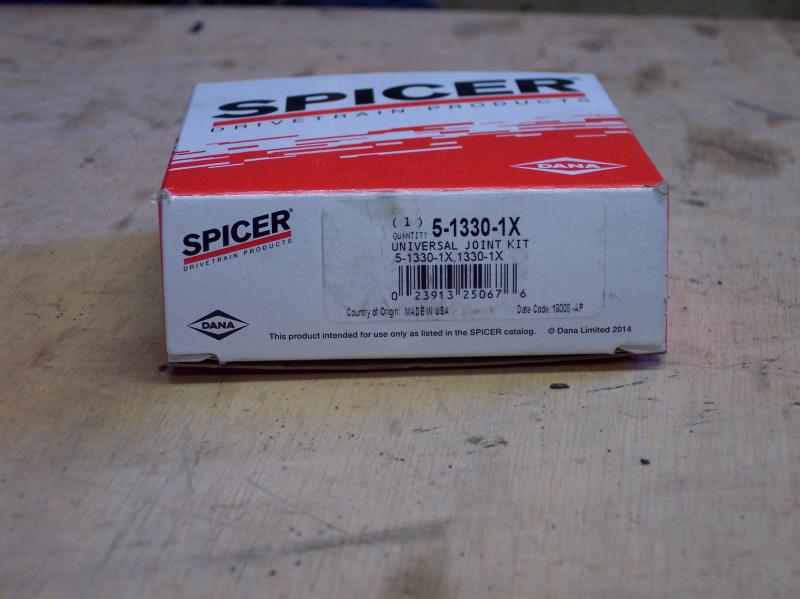

 I replaced the front & rear u joints in the aluminum driveshaft & installed the yoke for the T-5 trans.





____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Mon Mar 26th, 2018 08:29 pm
PM Quote Reply
65th Post
MaDMaXX

Hails from the land of rust!


Joined: Sat Oct 21st, 2017
Location: Oregon USA
Posts: 1368
Name:
Occupation:
Interests: Motorsport/Firearms/IT ...
Status:
Offline
Reputation:
Reputation Points: 1368
Member's Gallery
 You just reminded me, i have to check and likely replace my UJ's on the truck, i'm reasonably convinced they're gone.



____________________
2002 - 3.0 - 4x2 - Edge

Upgrades/Maintenance log
Back To Top PM Quote Reply

 Posted: Mon Mar 26th, 2018 10:28 pm
PM Quote Reply
66th Post
Tsquare
Member


Joined: Fri Nov 10th, 2017
Location: Suwanee, Georgia USA
Posts: 1540
Name:
Occupation: Controlled Insanity ...
Interests:
Status:
Offline
Reputation:
Reputation Points: 1540
Member's Gallery
 I would be compelled to paint it Ford blue with a white screw stripe.



____________________
Tony
NE ATL
'04 XLT regular cab 3.slo stepside
Semi retirement
Back To Top PM Quote Reply

 Posted: Sat Apr 21st, 2018 07:57 pm
PM Quote Reply
67th Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery
 Today it was beautiful weather (70°) so I rolled the Mustang out of the garage & finished running the rear brake lines on the rear differential to the wheel cylinders.



____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Sun Apr 22nd, 2018 06:02 pm
PM Quote Reply
68th Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery
 Today was another beautiful day so I put the back of the Mustang up on jack stands to start working on the Lokar parking brake cable install to hook up the center mount parking brake.



____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Sun Apr 22nd, 2018 06:04 pm
PM Quote Reply
69th Post
Dusten
Member


Joined: Sat Jan 13th, 2018
Location: Lake Goodwin, Washington USA
Posts: 614
Name:
Occupation:
Interests: cars, trucks, running ...
Status:
Offline
Reputation:
Reputation Points: 614
Member's Gallery
 no room to work on it inside, or just prefer moving it outside?



____________________
2001 Ford Lightning - Built Motor - Built Trans - 2.9 Whipple - E85 - Custom Interior - 537/632 - 11.40 @ 119.6(old setup)
1968 Ford Mustang "Gold Nugget Special"
2018 Ford Mustang GT PP1
1999 Ranger
https://www.youtube.com/user/lightningdusten
Back To Top PM Quote Reply

 Posted: Sun Apr 22nd, 2018 06:14 pm
PM Quote Reply
70th Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery
 Dusten wrote:
no room to work on it inside, or just prefer moving it outside?
Very limited room inside. I only have a 1 car garage that has the Mustang in it, a work bench, my tool box, air compressor, welder, table saw, band saw, small floor shelf unit, freezer, washer, & dryer. Mostly all the work is done in our 2 car wide driveway. The garage is so cramped I have to hang the front fenders from the ceiling. The pic below was from when I was rebuilding the rear & replacing the rear leaf springs during last winter.



____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Sat Apr 28th, 2018 07:34 pm
PM Quote Reply
71st Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery
 Finished the install of the r/s rear parking brake cable.



____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Sun Apr 29th, 2018 01:52 pm
PM Quote Reply
72nd Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery
 Finished installing the Lokar parking brake cables from the rear drum brakes to the center mount parking brake handle assembly.
Here is where the cables from the rear wheels hook to the cable going to the handle assembly.

Here is the routing to the rear wheels.



____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Wed May 9th, 2018 03:02 pm
PM Quote Reply
73rd Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery
 Today I started removing the front windshield. It looks like at some previous time someone loaded it up with sealer to stop a leak. I can not cut through it with my windshield removal tool so I have to heat the sealer with a brazing torch & then start working the windshield loose with a putty knife. So far I got loose up the passengers side "A" pillar & part way across the roof.



____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Thu May 10th, 2018 07:32 pm
PM Quote Reply
74th Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery
 Today after work I was able to get the windshield loose on the l/s "A" pillar & the rest of the way across the roof. I am hoping to have it out tomorrow afternoon.



____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Sat May 12th, 2018 02:37 pm
PM Quote Reply
75th Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1692
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1692
Member's Gallery
 Today I finished removing the front windshield. I was also able to remove most of the old sealer & found 2 rust holes that I will need to repair in the l/s "A" pillar.

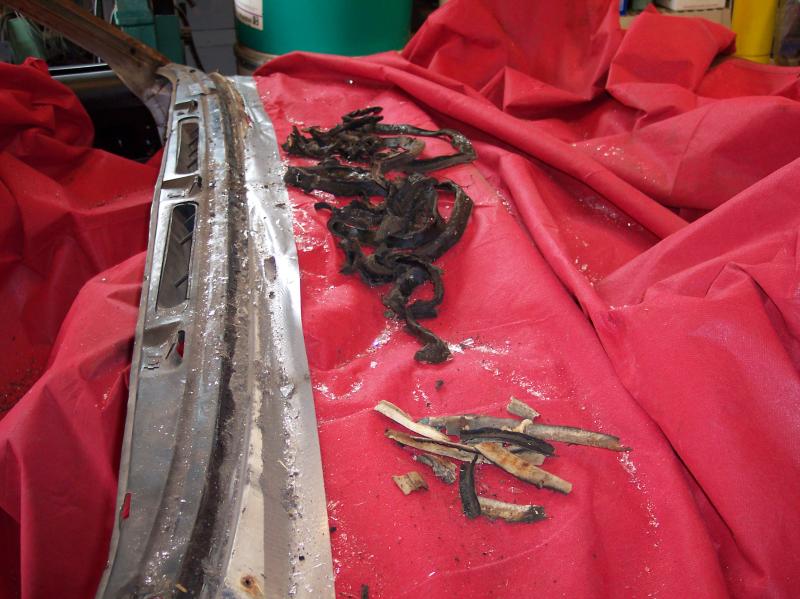

Here is all the old sealer that I have scraped off so far, & some pieces of the old factory vinyl top that was under the old sealer.



____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

Current time is 05:00 pm Top Page:  First Page Previous Page  1  2  3  4  5  6  Next Page Last Page

Ford-Rangers.com Ranger Forum > Tech Section > Member's OTHER Projects Showcase > Mike69's 69 Mustang project

Users viewing this topic



PHP Version: 8.2.28
Server version: 10.6.22-MariaDB
UltraBB 2.01.01 Copyright © 2008-2025 Jim & Chris
Page processed in 0.0917 seconds (37% database + 63% PHP). 110 queries executed.
