Lower intake on permently

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked - 1 like likes

Eddie Money

Posted: Sat Oct 10th, 2020 10:12 am

177^th Post

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

thread sealant on the front two bolts? They enter the water jacket
Ford calls for thread sealant which is basically liquid teflon tape
Also for the coil pack tripod the pass side bolt should have the longer stud........ hard to see in the pic, but feel free to ask me how I know

(okay I mounted my coil pack yesterday and guess what....that bolt MIA it snapped upon disassembly so my coil pack tripod it more of a two hold down nut wonder)

I love that crinkle paint.. plus TRICK FLOW HEADS!!!!!!!!!!!!!!!!!! WOOOOOOHOOOOOOOOOOOOOOOOOOOOOOOOO

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked -

Posted: Sat Oct 10th, 2020 02:54 pm

178^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

I did not use anything on them front two bolts other than antiseize for the aluminum head threads.. Think I should pull them back out real quick?

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Sat Oct 10th, 2020 09:31 pm

179^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Ok.. now I have some small issues..
I took this all apart 2 years ago..
And totally lost now on reassemble..

Anyone have pics of the pvc routing?

The Evap routing...?

Vacuum routing..?

Throttle bracket ?

Looks like I need to go to thw yard and do some.serious picture taking

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Sun Oct 11th, 2020 09:23 am

180^th Post

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

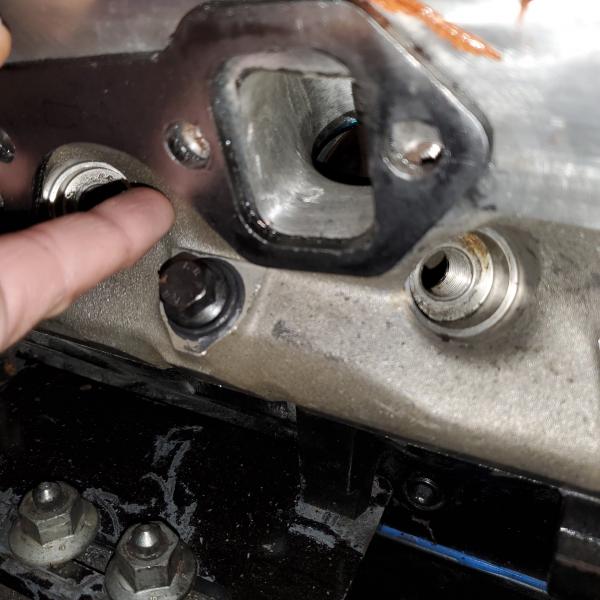

YES you should remove those two bolts and add thread sealant!!!!!!!!!!!!!! You do NOT want one to break off in there the nest time you go to remove the lower intake......trust me

Something about a 2 month battle vs a broken stud in my 96's lower intake....then I broke a drill bit in there...then I spent $100 buying better and better drill bits to try and get through it....it would have been faster to pull the engine and take it to a machine shop then to go through what I did

The 4 bolts that go through the water pump and timing cover and into the front of the engine also reach the water jacket, those also need thread sealant.
Anti seize MIGHT do it, but Ford calls for thread sealant, so that is what I use.

Remember this was a 289 back in 1963 and I guess back then they thought it was a good idea to drill these studs all the way into the water jacket. Steel bolt through aluminum into iron block with coolant on the tip = rusty bolt in short order = broken in engine, unless you protect it.

PCV routing.......I can get
EVAP routing............ explorer 302 to ranger, is toooo easy I can get
Vacuum routing, again super easy, I can get
Throttle bracket!?!?! YOUR KILLING ME HOLMES!!!! laughing my ass off here....... I remember those days, "where the hell does this go?" HAHAHAHAHA

I have complete 302 engines here I can get some pics, I also have complete trucks I can get pics, and I have two 302 projects in the shop, I can get pics for you

There are an A%^load of pics in my personal build threads..... lets go back a ways, you should go through my Bronco II 5.0 conversion and my 96 explorer build up....I bet those questions get answered before I can even get pics

Bronco II 5.0 swap:
https://www.explorerforum.com/forums/threads/410-fortune-5-0l-efi-4r70w-drivertrain-conversion.124626/

Explorer 5.0 build, making one good truck from two:
https://www.explorerforum.com/forums/threads/410fortune-96-5-0l-xlt-refurbish-making-1-great-ex-from-2.142851/

I'm alot smarter now so be kind :) Or am I? maybe I should read them too!!!

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked - 2 likes

Junglejoe, Eddie Money

Posted: Sun Oct 11th, 2020 10:28 am

181^st Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Lmao.. I should have taken better notes and organized stuff a little better... but I was like..lets tear this sucker apart! So..I did..lol

I'll read back through your builds J and see if I can figure out some things

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Sun Oct 11th, 2020 07:27 pm

182^nd Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Mocking up the wireing...
QUESTION, again...lol

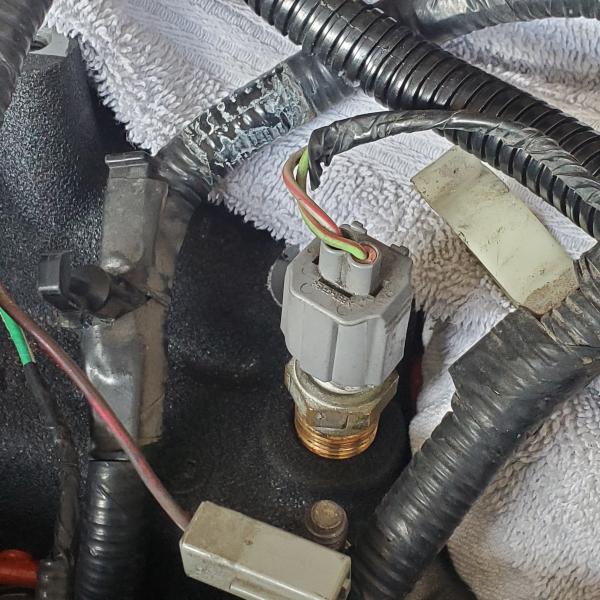

So does the two wire or one wire go on the intake temp sensor on the intake, the other goes to thw metal heater piping

EDIT: I believe I have them backwards

Last edited on Sun Oct 11th, 2020 07:30 pm by Junglejoe

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Mon Oct 12th, 2020 09:33 am

183^rd Post

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

yep backwards
I cant believe the brown plug reached over there........it should not if the wire loom is placed properly

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked -

Posted: Mon Oct 12th, 2020 09:29 pm

184^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Nothing g was hooked up J.. just mocking it all up and getting an idea. The Injectors showed up today.. tomorrow its all going together..I hope!

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked - 2 likes

410customs, Eddie Money

Posted: Tue Oct 13th, 2020 02:30 pm

185^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

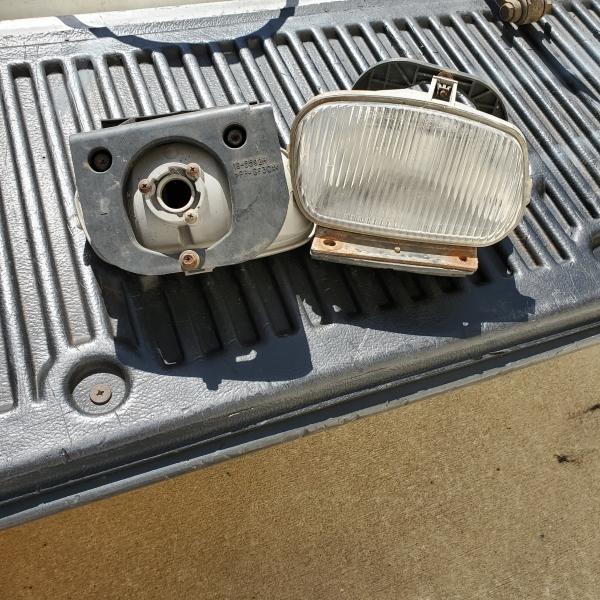

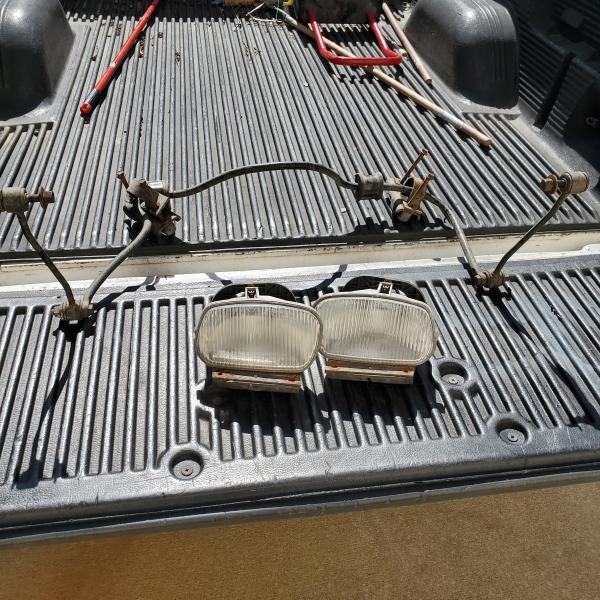

Went to the yard today . Got pics and my missing bolts and studs so I can get the upper intake,vacum hoses,pvc, and other miscellaneous stuff assembled...
It took longer than expected..
Ended up finding factory REAR sway bar and factory fog light buckets off of a 2000 sport . Had an 8.8 but it was open differential

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked - 1 like likes

Eddie Money

Posted: Wed Oct 14th, 2020 03:29 pm

186^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Ok... does another temp sensor or what go here? Driver side lower intake.. between first and second injector..

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Thu Oct 15th, 2020 09:52 am

187^th Post

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

I got some pics for you of the vacuum routing and such....give me some time to post up super busy couple of days here

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked - 1 like likes

Junglejoe

Posted: Thu Oct 15th, 2020 10:25 am

188^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

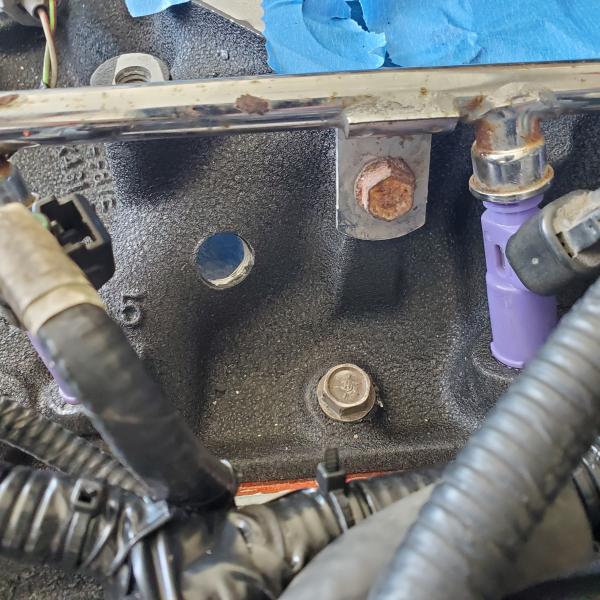

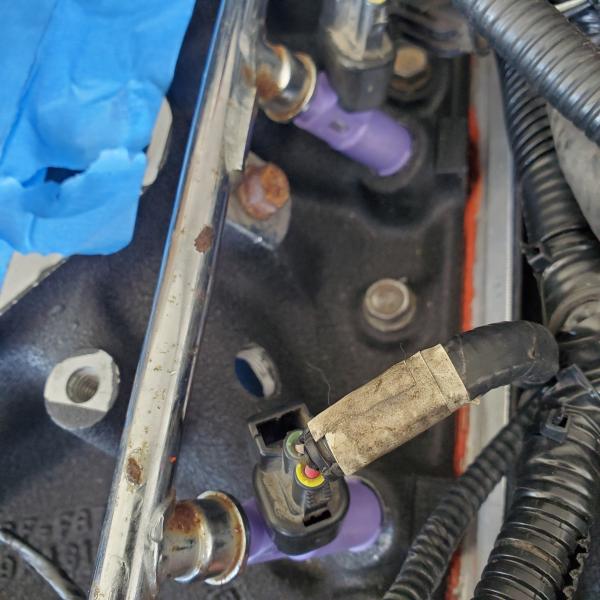

Thanks J!!! No rush.. have to pull the driver side header back off and cut the 3rd tube. Bought them used and apparently someone modified them for who know qhat reason..but the steering shaft won't clear.
My injector clips are broke..ordered new pigtails

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Fri Oct 16th, 2020 06:32 am

189^th Post

JAMMAN

Owns A Torsen

Joined: Mon Sep 18th, 2017

Location: Grove City, Ohio USA

Posts: 6436

Name: Jim ...

Occupation: 5 axis cnc programmer ...

Interests: RBV's ...

Status:

Offline

Reputation:

Reputation Points: 6436

Every time I unclip injectors a couple of the latches break. I have never had one come off. If the rubber falls out I shove one back in there but have never had one pop off. I have been using dielectric grease on every connector I touch for years now, keeps moisture out which will corrode and destroy the crimps and terminals.

I agree with replacing the connectors but don't let it keep you from firing it up.

I hate getting old, after you originally posted the missing fitting on your intake I walked out to mine, opened the hood, was going to take a pic. Noticed a socket in the battery tray I had borrowed and thought I lost, grabbed the socket, closed the hood and went back in to work.

____________________
00 XLT 4WD RCSB 3.GO! JalapeÃ±o
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.

Already liked - 1 like likes

Junglejoe

Posted: Fri Oct 16th, 2020 07:20 am

190^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

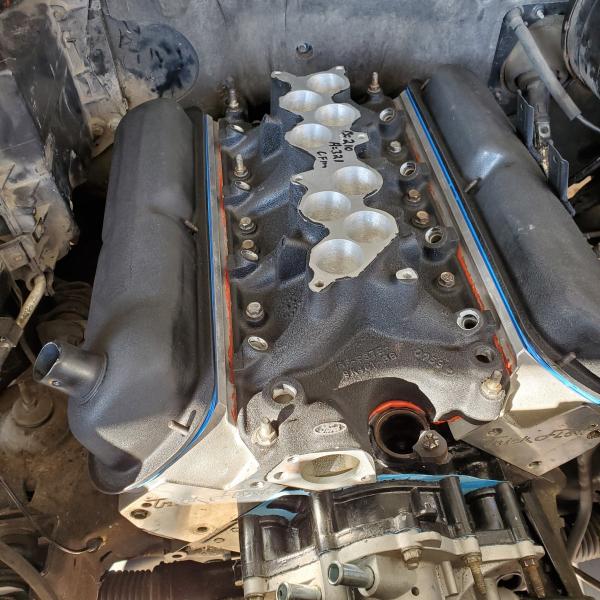

Well I.have to put the upper intake on , then pull it back off for the injector connectors.. I think?

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Fri Oct 16th, 2020 09:26 am

191^st Post

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

you can get the injector plugs off without breaking them
Pull real hard and then just lightly lift up on one of the clips they will slide off. I have a small pick I use for this, or tiny flathead...
You cannot get the drivers side injectors with the intake in place...no

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked - 1 like likes

Junglejoe

Posted: Fri Oct 16th, 2020 07:13 pm

192^nd Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

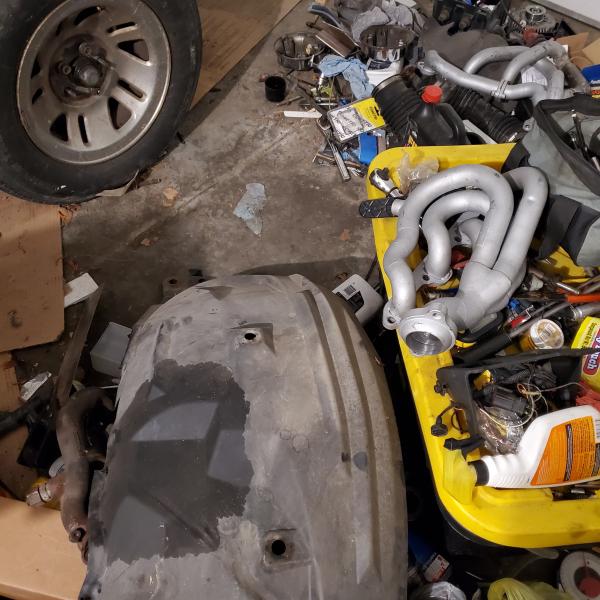

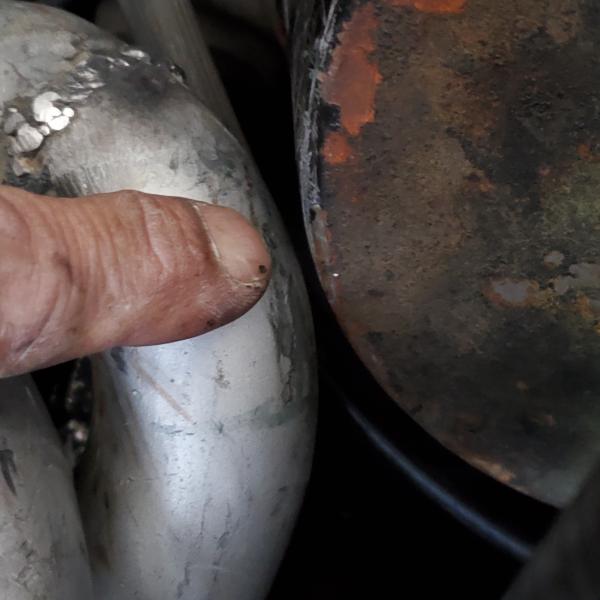

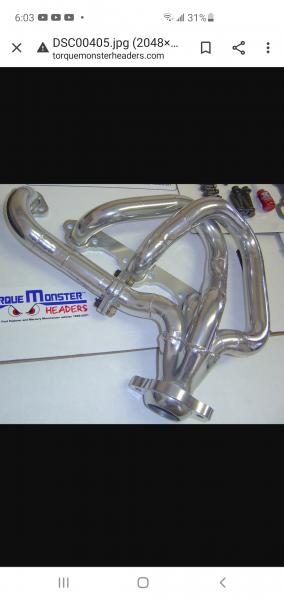

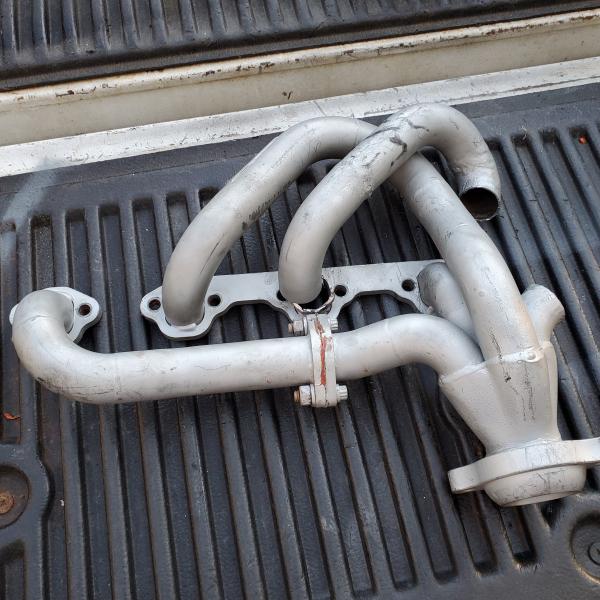

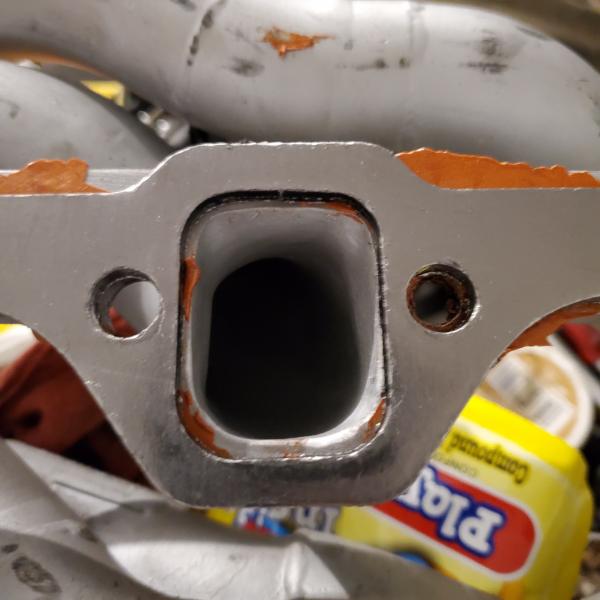

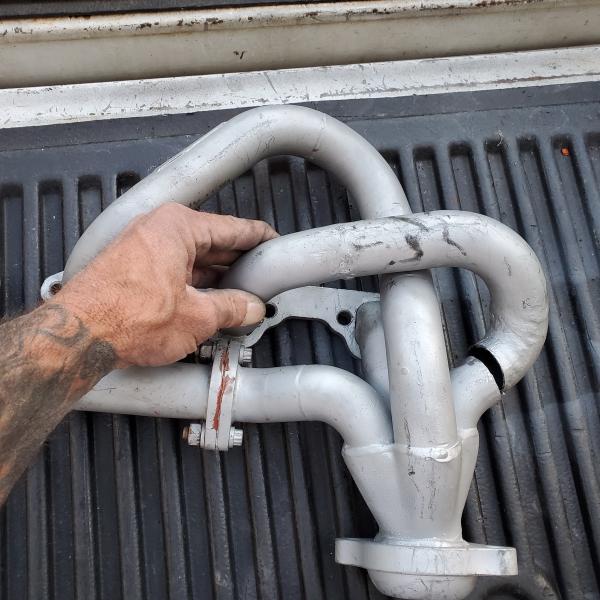

So what I thought was a good deal on the used torque monster headers, turns out not so good after all! Got these for $400 a while back.. dude said one tube was modified for some unknown reason.. well I bolted them on the heads and went to put the steering shaft on, no go! Thank God I didn't send them off to be ceramic coated! Would have been $250 wasted.Not sure why someone cut up a $1000 set of headers, but they did. Now, I've got to try and salvage them. Cut the tube off that was hacked up and off to my welder it goes...
Last picture is how they were previously "modified".. IMAGINE THAT!

Last edited on Fri Oct 16th, 2020 07:15 pm by Junglejoe

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Sat Oct 17th, 2020 03:00 pm

193^rd Post

Tsquare
Member

Joined: Fri Nov 10th, 2017

Location: Suwanee, Georgia USA

Posts: 1540

Name:

Occupation: Controlled Insanity ...

Interests:

Status:

Offline

Reputation:

Reputation Points: 1540

I good welder can fix that.

I can f' it up worse with my welder. :whatever:

____________________
Tony
NE ATL
'04 XLT regular cab 3.slo stepside
Semi retirement

Already liked - 1 like likes

Junglejoe

Posted: Sat Oct 17th, 2020 03:27 pm

194^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Tsquare wrote:
I good welder can fix that.

I can f' it up worse with my welder. :whatever:

Lmao.. Im the same way..cant weld

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Sat Oct 17th, 2020 11:33 pm

195^th Post

Tsquare
Member

Joined: Fri Nov 10th, 2017

Location: Suwanee, Georgia USA

Posts: 1540

Name:

Occupation: Controlled Insanity ...

Interests:

Status:

Offline

Reputation:

Reputation Points: 1540

I can weld the easy stuff. I know that with a high end gas Mig welder I might be able to get an air tight weld but there would be a lot of grinding and re-welding. It would not be pretty. My 78 year old uncle could knock it out with a text-book perfect weld. But that was what he did for 35+ years at the rail road.

____________________
Tony
NE ATL
'04 XLT regular cab 3.slo stepside
Semi retirement

Already liked - 1 like likes

Junglejoe

Posted: Sun Oct 18th, 2020 02:16 pm

196^th Post

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

looks like they tried to stick them in a ttb truck and had to cut that tube!!
Looks like it can be fixed!!

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked - 1 like likes

Junglejoe

Posted: Mon Oct 19th, 2020 08:17 am

197^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Well temporary fixed it. Ill order a brand new set if I like the truck and what it does and sell these.

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Mon Oct 19th, 2020 09:43 am

198^th Post

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

well done
Mine as well order a set cuz your gonna love this truck

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked - 1 like likes

Junglejoe

Posted: Mon Oct 19th, 2020 10:25 am

199^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

I sure hope so J. Its been a 2 year long project.. plans changed from a stock daily driver to what should be a 350 hp to the tire daily with ac. " My" idea on if I like it is if it rides and feels stock until you hit the loud pedddle..â˜•

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked - 2 likes

Eddie Money, 410customs

Posted: Thu Oct 22nd, 2020 12:41 pm

200^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Took these headers off for the last time I hope..

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked - 1 like likes

Eddie Money
