If you have a 1995-2003 with factory power locks then you should be able to enable/add this feature.

The 1995-2000 RAPS (Remote Anti Theft Module) and the 2001-2003 CSM (Central Security Module) are used in other vehicles Explorers and Sport Tracs and have a feature called Auto Lock. When you put your truck into drive and release the brake it automatically locks the vehicle.

Since your truck uses the same module, why can't you? Well it's not enabled from factory and you have to add two wires (one for brake signal and one for reverse signal). The logic is that the brake signal has to be active (12V) and the reverse signal has to go from open circuit to 12V (reverse) and then back to open circuit. Once the brake is released (grounds out the brake signal) the vehicle will lock.

To test to see if your RAPS/CSM can enable this feature follow the steps below:

Put the key in the ignition and turn it to on.
Press the Unlock button three times.
Turn the ignition off.
Press the Unlock button three more times.
Turn the ignition back to on.
The horn should beep once. This tells you that you're now in programming mode.
Press the Unlock button, then press Lock again. The horn will beep once to tell you that Auto Lock was deactivated. It will beep twice if you're reactivating the system.
Turn the ignition back to off and listen for the horn to beep one time confirming that the programming was accepted.

If this works out your next step is obtain two terminals from a junkyard RAPS/CSM pigtail. You need to get them from the 26 pin connector (larger one).

Next locate the RAPS/CSM in your truck:

Here is what it looks like:

1995-1999: rear of cab behind trim panels near floor
2000: RH kick panel
2001-2003: Behind passenger airbag.

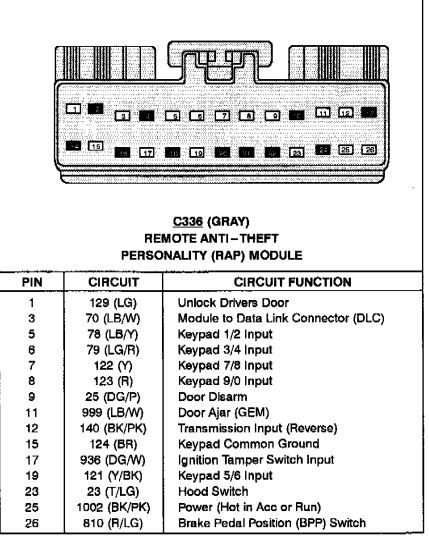

Next remove the 26 pin (larger connector) and add terminals/wires to pins 12 (reverse signal) and pin 26 (brake pedal switch).

Pin 12 needs to connect to your reverse signal. Reverse is switched the neutral safety switch and goes through the engine harness, engine bay harness, dash harness, cab harness, bed harness. You can grab this signal anywhere along this path.

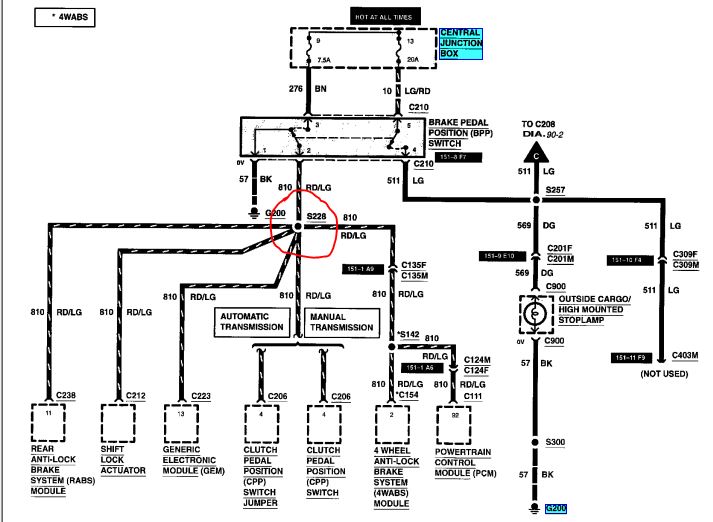

Pin 26 needs to go to the brake pedal position switch SIGNAL side. Only the signal side generates the ground signal when not depressed. See the picture below. The other output of the brake switch is for the brake lights only.

Note: this dual switch brake pedal switch was introduced in 1998. In 1995-1997 they just had a simple 2 wire switch (no ground when brake not depressed). I don't know if this will work on a 1995-1997 without adding a double pole relay where when energized gives a positive output and when de-energized gives a ground signal.

____________________
2000 XLT 2.5L A/T 2WD
Mods:
Power Windows/Locks Mirrors using OEM harness and parts
Explorer Sportrac White Face Cluster
Explorer OHC and Auto-dim Mirror
Auto Door Locks
Full HID Projector Retrofit

Already liked -

Quote

Posted: Tue Nov 28th, 2017 12:00 pm

Quote

2^nd Post

mhoward
Hey look ~ they ~ bounce!

Joined: Sun Oct 22nd, 2017

Location: Evansville, USA

Posts: 2736

Name: Michael ...

Occupation: Technology Manager ...

Interests: Trucks / Guitars & Music / Things that go BANG ...

Status:

Offline

Reputation:

Reputation Points: 2736

Member's Gallery

Ah! Nice to see this posted on the forum! Thanks Anthony!

____________________
-- Michael

2003 Ranger Edge / Extended Cab / Flareside / 3.0L FLEX / 5r44e Auto / 2WD / 8.8 LS 4:10 / Sonic Blue Pearl

So many mods... so little time...

Already liked -

Quote

Posted: Tue Nov 28th, 2017 01:55 pm

Quote

3^rd Post

Mike69

Mustang Nut

Joined: Sun Oct 22nd, 2017

Location: Horsepasture, USA

Posts: 1692

Name: Mike ...

Occupation: Semi-retired ...

Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...

Status:

Offline

Reputation:

Reputation Points: 1692

Member's Gallery

I have to make a trip to the pick-n-pull to get the pigtail so I can do this mod.

____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)

Already liked -

Quote

Posted: Fri Dec 1st, 2017 04:56 pm

Quote

4^th Post

Mike69

Mustang Nut

Joined: Sun Oct 22nd, 2017

Location: Horsepasture, USA

Posts: 1692

Name: Mike ...

Occupation: Semi-retired ...

Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...

Status:

Offline

Reputation:

Reputation Points: 1692

Member's Gallery

Anthony, I am going to add this mod to my Ranger & looking in the wire diagram I have it states the reverse signal comes out of the DTR on the bk/pk wire through a connector l/h side of engine comp, through a plug connector l/h side of safety wall, through plug connector by the trans, through plug connector rear of truck & then back to the reverse light sockets. I can get the reverse signal anywhere along that line? I also have a bk/pk wire from the central junction box (cjb) to the gem & to the rap module, are they the same wire as the feed for the reverse lights?.I hope that is not to confusing.

____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)

Already liked -

Quote

Posted: Fri Dec 1st, 2017 06:04 pm

Quote

5^th Post

sheltonfilms
Electronicals / Forscan Expert

Joined: Fri Nov 24th, 2017

Location: Hoover, Alabama USA

Posts: 125

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 125

Member's Gallery

That black and pink wire from the central junction box is a power wire so that's no good.

On my 2000, if you pull the carpet back a little from where the carpet goes over the transmission tunnel and the drivers side near the cupholders you will see the big branch of wires the comes from the back center of the dash down into the floor pan area. The black and pink wire is in that bundle, but be careful as there is more than one black/pink wire in it. You have to pierce the wire and test it with a test light/multimeter and make sure it only has power in reverse.

Already liked -

Quote

Posted: Fri Dec 1st, 2017 08:24 pm

Quote

6^th Post

Kealel
Certified Ranger Nutjob

Joined: Sat Oct 21st, 2017

Location: Kalamazoo County, Michigan USA

Posts: 174

Name: Keegan ...

Occupation: Engineer ...

Interests: Rangers. Duh. Also Robots. ...

Status:

Offline

Reputation:

Reputation Points: 174

Member's Gallery

Do you know at all if you can enable this on a manual trans? The explorer and sport track both came with manual transmissions So in theory it seems like there should be a way.

____________________
Past:
Baby Girl: 2006 XL 3.0 ~RIP~ 1/26/2015

Current:
Penguin: 2002 XLT 3.SLOW 4x2

River/Kaitlyn: 2003 EDGE 3.GO! 4x2... For now?
~Aspiring Mini Level 2~

The Duck: 2003 Ford Ranger FX4 Level 2 - TWIN STICKS!

Already liked -

Quote

Posted: Fri Dec 1st, 2017 08:30 pm

Quote

7^th Post

sheltonfilms
Electronicals / Forscan Expert

Joined: Fri Nov 24th, 2017

Location: Hoover, Alabama USA

Posts: 125

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 125

Member's Gallery

Should work fine except it won't lock when just going forward, unless you throw the gear shifter into reverse first then forward.

Backing out of parking spots or garages it would work fine.

Already liked -

Quote

Posted: Fri Dec 1st, 2017 09:12 pm

Quote

8^th Post

Mike69

Mustang Nut

Joined: Sun Oct 22nd, 2017

Location: Horsepasture, USA

Posts: 1692

Name: Mike ...

Occupation: Semi-retired ...

Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...

Status:

Offline

Reputation:

Reputation Points: 1692

Member's Gallery

sheltonfilms wrote: That black and pink wire from the central junction box is a power wire so that's no good.

On my 2000, if you pull the carpet back a little from where the carpet goes over the transmission tunnel and the drivers side near the cupholders you will see the big branch of wires the comes from the back center of the dash down into the floor pan area. The black and pink wire is in that bundle, but be careful as there is more than one black/pink wire in it. You have to pierce the wire and test it with a test light/multimeter and make sure it only has power in reverse.

Thanks for the info. Looks like I have to make a run to the JY.
