 Driving to work yesterday and getting on the on ramp to the interstate. Tried to gun it to merge and truck started revving and slowing down. Turned off OD and it went back into gear. Fine the rest of the way to work.

Left work and about a mile from work, I was pulling out from a stop and acted like neutral again. No reverse or drive, only went forward in manual mode or with OD off.

I think my OD sprag broke (didn't replace when I did my rebuild at 200k). Odds are if the sprag flipped and broke the cage the OD planetary is bad also (inner race is part of OD planetary). So have to get one of those too.

I hate dropping the transmission but man do I hate paying transmission shop prices.

Rebuilt at 200k, TC went out at 235 and replaced it and changed all fluid and filter, now it's at 255k. Time for a fluid change anyway.



____________________
2000 XLT 2.5L A/T 2WD
Mods:
Power Windows/Locks Mirrors using OEM harness and parts
Explorer Sportrac White Face Cluster
Explorer OHC and Auto-dim Mirror
Auto Door Locks
Full HID Projector Retrofit
Back To Top PM Quote Reply

 Posted: Sat Jul 7th, 2018 10:48 am
PM Quote Reply
2nd Post
410customs

Idahome


Joined: Wed May 2nd, 2018
Location: Panhandle, Idaho USA
Posts: 2165
Name: Jamie ...
Occupation: Elevator Design Worlds Tallest Buildings ...
Interests: Ranger Based Vehicles and OFFROAD ...
Status:
Offline
Reputation:
Reputation Points: 2165
Member's Gallery
 Ah fun!!
the joys of rebuilding your own unit.
You are a smart man, DIY
If you can refurbish a 5r55e you can do just about any auto trans out there!!!



____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks
Back To Top PM Quote Reply

 Posted: Sat Jul 21st, 2018 08:26 pm
PM Quote Reply
3rd Post
sheltonfilms
Electronicals / Forscan Expert


Joined: Fri Nov 24th, 2017
Location: Hoover, Alabama USA
Posts: 125
Name:
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 125
Member's Gallery

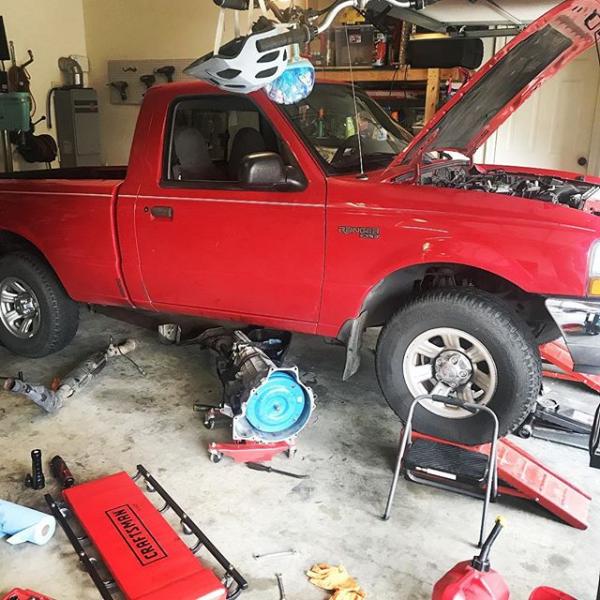

 Well took the transmission out for the 3rd time of it's life today. 4 hours mostly due to it being like 92 with 100% humidity here in Alabama. Lots of water breaks. That and the transcooler lines seem to take forever as there isn't a good amount of room to use a flare wrench and get good swings from it.

Definitely a smoother process than the first 2 times. Will open it up tomorrow to see the damage.

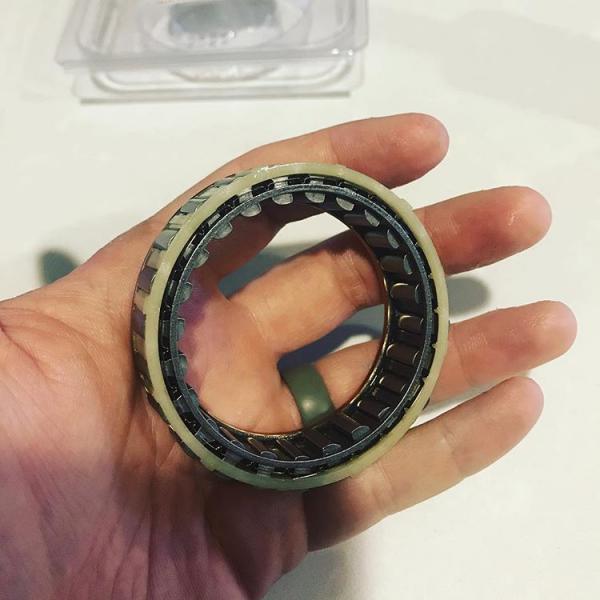

Got a Borg Warner overdrive/input sprag in this week. May have to get another OD planetary after I open the trans up and inspect it.

Last edited on Sat Jul 21st, 2018 08:28 pm by sheltonfilms



____________________
2000 XLT 2.5L A/T 2WD
Mods:
Power Windows/Locks Mirrors using OEM harness and parts
Explorer Sportrac White Face Cluster
Explorer OHC and Auto-dim Mirror
Auto Door Locks
Full HID Projector Retrofit
Back To Top PM Quote Reply

 Posted: Sat Jul 21st, 2018 09:10 pm
PM Quote Reply
4th Post
JAMMAN

Owns A Torsen


Joined: Mon Sep 18th, 2017
Location: Grove City, Ohio USA
Posts: 6436
Name: Jim ...
Occupation: 5 axis cnc programmer ...
Interests: RBV's ...
Status:
Offline
Reputation:
Reputation Points: 6436
Member's Gallery
 Sprags are cool, I used to have to deal with them in sticker and seal spout applicators as quick and accurate stock advancing. I had no idea they were in transmissions also but it makes perfect sense.



____________________
00 XLT 4WD RCSB 3.GO! Jalapeño
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.
Back To Top PM Quote Reply

 Posted: Sun Jul 22nd, 2018 02:16 am
PM Quote Reply
5th Post
sheltonfilms
Electronicals / Forscan Expert


Joined: Fri Nov 24th, 2017
Location: Hoover, Alabama USA
Posts: 125
Name:
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 125
Member's Gallery
 Yeah I should have replaced it when I did the rebuild. I'm gonna see if I can measure the teeth height between old and new and see what the wear is over 255k miles. I've always been told the height of the teeth get worn down and cause them to flip and break the cage. We'll see.



____________________
2000 XLT 2.5L A/T 2WD
Mods:
Power Windows/Locks Mirrors using OEM harness and parts
Explorer Sportrac White Face Cluster
Explorer OHC and Auto-dim Mirror
Auto Door Locks
Full HID Projector Retrofit
Back To Top PM Quote Reply

 Posted: Mon Jul 23rd, 2018 09:53 pm
PM Quote Reply
6th Post
sheltonfilms
Electronicals / Forscan Expert


Joined: Fri Nov 24th, 2017
Location: Hoover, Alabama USA
Posts: 125
Name:
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 125
Member's Gallery

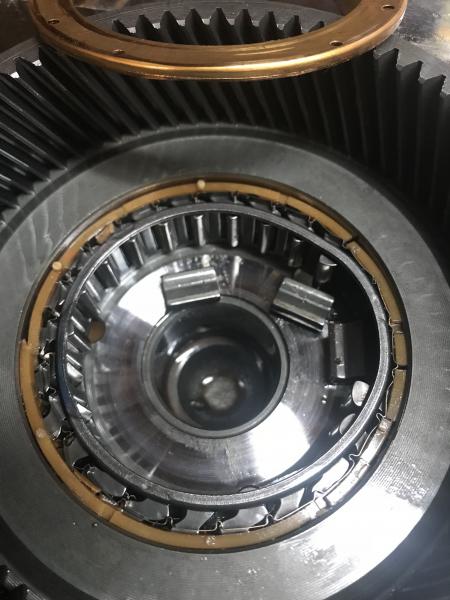

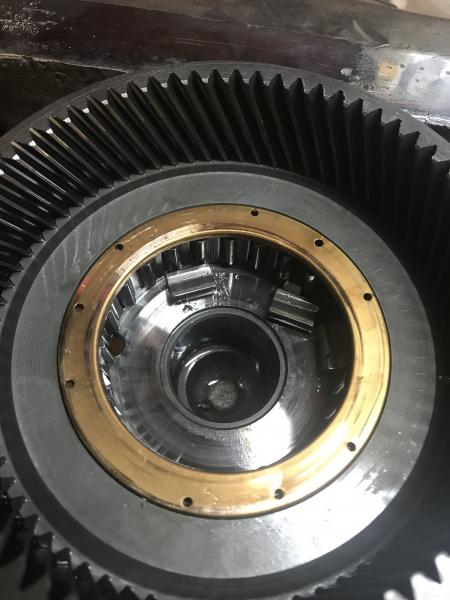

 Well here is the damage. The center shaft was stuck to the OD planetary and it wouldn't turn at all.  Looks like it scuffed up the OD Planetary race pretty good, also some sharp marks where the edge of the sprag teeth grabbed when it flipped. I bet the center shaft outer race is bad too. Took a part the coast clutch and I've got hot spots on the steels. So gonna rebuild that clutch pack.
