Weird spark plug #: 2090

Moderated by: Mike69, MaDMaXX,

New Topic

Rate Topic

Posted: Tue Apr 14th, 2020 05:39 pm

Quote

1^st Post

VelociRanger
Iâ€™ll probably do it tomorrow

Joined: Mon Jun 25th, 2018

Location: Dallas, Texas USA

Posts: 721

Name: Justin ...

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 721

Member's Gallery

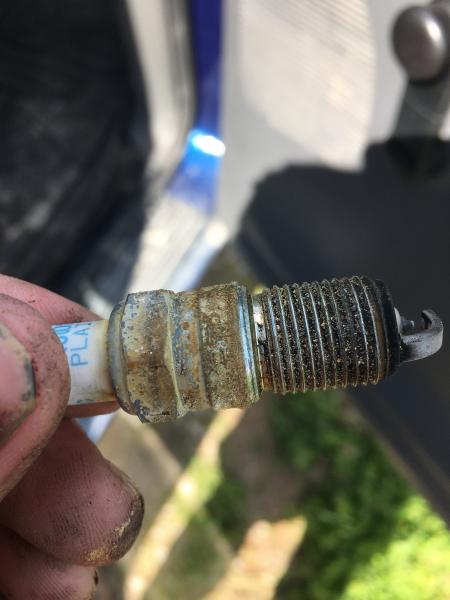

Is this just dirt? Coolant? Could it be because I use fuel injector cleaner between about 2 or 3 tanks? I only checked one spark plug (cylinder number 2) because the boots are pretty much stuck on, so before I rip a boot I got the only one off that I safely could. This is weird. There's no coolant in the oil, the coolant has never gotten low. The reason I was checking to begin with is my oil smells like fuel so I was checking to see if the plugs are wet from excess fuel, only to find this....

____________________
knowing when to quit is wisdom, being able to quit is courage.

1983 Ranger, reluctantly taking apart. Donor/project vehicle.

1997 Ranger Ex Cab Manual 4.0 2wd, dead on arrival. Hopefully reviving for a daily driver.

1984 Ranger, currently in â‰ˆ861 pieces. Sheâ€™s donating whatâ€™s salvageable.

Already liked -

Quote

Posted: Tue Apr 14th, 2020 10:55 pm

Quote

2^nd Post

JAMMAN

Owns A Torsen

Joined: Mon Sep 18th, 2017

Location: Grove City, Ohio USA

Posts: 6436

Name: Jim ...

Occupation: 5 axis cnc programmer ...

Interests: RBV's ...

Status:

Offline

Reputation:

Reputation Points: 6436

Member's Gallery

I don't quite understand, are you referring to the dirt in the threads? If so that happened on the way out, if there was that much dirt in the threads it would have been very difficult to remove. I usually blow around the spark plug before loosening it (compressed air). Since it is a valley all kinds of crud gets in there and if you don't clean it first it ends up in the cylinder.

Other than that, the plug looks good.

____________________
00 XLT 4WD RCSB 3.GO! JalapeÃ±o
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.

Already liked -

Quote

Posted: Tue Apr 14th, 2020 11:03 pm

Quote

3^rd Post

Scrambler82
Old Bastard !

Joined: Fri Dec 22nd, 2017

Location: California USA

Posts: 2108

Name: Grev B ...

Occupation: Quality Assurance Engineer ...

Interests: Rangers, Photography, Metal Bending ...

Status:

Offline

Reputation:

Reputation Points: 2108

Member's Gallery

VelociRanger,
To me, the center of the Plug Body, looks OK, it looks like a little rust in there, funny.
What gets me the most is the Threads, did you use a thread sealant or anti seize on the threads ?
Also, when you put the boots on the plugs, was there a sealant/protectant added ?

I would like to see the other plugs !

Before you RIP the Boots off the Plugs... get a Boot Puller, it get under the boot and uses the bottom of the boot to lift and break the seal of the boot to the plug. They look like Pliers with a flat end at 90 degrees.

Last edited on Tue Apr 14th, 2020 11:04 pm by Scrambler82

____________________
Ltr,
2003 EDGE, Std Cab, Steppie, E4 Red, 5sp, 4x
5" SuperLift, 33" x 12.50 x 15"
Hurst Shifter
Mod'd Backrack to fit Steppie
Front and Rear Bumpers by Custom 4x4 Fabrication, OK; now Mike's Welding and Fabrication.
Working on more Mods, just need more time, longer days would work !

Already liked -

Quote

Posted: Tue Apr 14th, 2020 11:29 pm

Quote

4^th Post

VelociRanger
Iâ€™ll probably do it tomorrow

Joined: Mon Jun 25th, 2018

Location: Dallas, Texas USA

Posts: 721

Name: Justin ...

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 721

Member's Gallery

@JAMMAN- yes sorry the threads and the actual socket part, and that's what I thought initially, but the ceramic also has the same color on it at the very bottom as well.

@Scrambler82- I'm not sure, my dad did it for me a few years ago when he was borrowing the truck. I don't believe he used a thread sealant or anti seize or dielectric grease, either. Also, good call on the pliers, I've seen those before but never knew that exactly they were for....I was gonna rip them out and get new plugs and wires lol :fp

Edit: anyone know of an engine cleaner that doesn't mess up aluminum? I forgot the block is aluminum...I need to clean the engine bay, one day I forgot where I put my funnel and while I was doing an oil change I eyeballed the oil fill hole and got oil everywhere and never cleaned it up...the sight of the engine bay kills me

Last edited on Wed Apr 15th, 2020 12:07 am by VelociRanger

Already liked -

Quote

Posted: Wed Apr 15th, 2020 12:13 am

Quote

5^th Post

Scrambler82
Old Bastard !

Joined: Fri Dec 22nd, 2017

Location: California USA

Posts: 2108

Name: Grev B ...

Occupation: Quality Assurance Engineer ...

Interests: Rangers, Photography, Metal Bending ...

Status:

Offline

Reputation:

Reputation Points: 2108

Member's Gallery

The dirt in the threads is deep in the threads... not usually from dirt in the plug hole, which would usually loosen up enough when the socket gets in there... it wouldn't force it in the threads... UNLESS it was a wipe off.

VelociRanger, have you pulled the there plug... how do they look ?

Then we need to ask... If Jamman is correct, and the dirt was in the Plug Hole, did it go in the cylinder ?

To me, get it figures out, do as Jamman stated blow out the holes before taking the others out !

I think the plug is just old but the dirt in the threads bothers me !

Last edited on Wed Apr 15th, 2020 11:40 am by Scrambler82

Already liked -

Quote

Posted: Wed Apr 15th, 2020 07:01 am

Quote

6^th Post

Tsquare
Member

Joined: Fri Nov 10th, 2017

Location: Suwanee, Georgia USA

Posts: 1540

Name:

Occupation: Controlled Insanity ...

Interests:

Status:

Offline

Reputation:

Reputation Points: 1540

Member's Gallery

With the rust/crud above the threads it looks like there was moisture in there at one time. As other have said the crud on the threads was probably loosened when you removed the plug and it stuck to the threads. That platinum tip plug looks good at the tip. How many miles are on them?

____________________
Tony
NE ATL
'04 XLT regular cab 3.slo stepside
Semi retirement

Already liked - 1 like likes

Scrambler82

Quote

Posted: Wed Apr 15th, 2020 02:23 pm

Quote

7^th Post

VelociRanger
Iâ€™ll probably do it tomorrow

Joined: Mon Jun 25th, 2018

Location: Dallas, Texas USA

Posts: 721

Name: Justin ...

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 721

Member's Gallery

Not sure on the spark plugs, maybe 15-20k? They were put in about 2 years ago by my dad and I haven't driven a whole lot since then. I also think the number 4 spark plug is stripped, I've checked them once before and that one doesn't seem to go in as far as the others do

Already liked -

Quote

Posted: Wed Apr 15th, 2020 08:47 pm

Quote

8^th Post

Tsquare
Member

Joined: Fri Nov 10th, 2017

Location: Suwanee, Georgia USA

Posts: 1540

Name:

Occupation: Controlled Insanity ...

Interests:

Status:

Offline

Reputation:

Reputation Points: 1540

Member's Gallery

Copper plugs last 25-30k miles. Platinum last twice as long. Iridium can last as long as 100k.

I would clean up the threads, confirm the gap, and put it back in. As far as #4 not going all the way in I would postpone that until I could get a bore scope to take a look at the threads and the interior of the combustion chamber. It might be a simple obstruction, threads that need to be cleaned up (lots of grease on a tap and multiple trips in going a little further each time and cleaning/re-lubing between each pass), or to getting it to TDC and pulling the head for repair.

____________________
Tony
NE ATL
'04 XLT regular cab 3.slo stepside
Semi retirement

Already liked -

Quote

Posted: Wed Apr 15th, 2020 11:06 pm

Quote

9^th Post

VelociRanger
Iâ€™ll probably do it tomorrow

Joined: Mon Jun 25th, 2018

Location: Dallas, Texas USA

Posts: 721

Name: Justin ...

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 721

Member's Gallery

They're Motorcraft Double platinum I believe, not 100% sure. I actually need new wires anyways, I guess when my dad did it he tore the top of one of the boots and you can't pull it off because there's nothing to grab on to. The only borescopes I could find were on amazon and they're not currently shipping for non essential items, and Walmart has them but only for android phones. I'll continue to look, I hope I just need to clean the threads and not have to re-thread them.

Already liked -

Quote

Posted: Thu Apr 16th, 2020 09:21 am

Quote

10^th Post

410customs

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

Member's Gallery

harbor freight sells a wicked good boroscope for the $$$ I love mine, use it all the time
Cheap wires do not last on these trucks
I like packard wire, you can find sets on Rockauto for very good prices

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked -
