Sprung a leak #: 1107

Moderated by: Mike69, MaDMaXX,

New Topic

Rate Topic

Posted: Sat Aug 4th, 2018 09:25 pm

Quote

1^st Post

JAMMAN

Owns A Torsen

Joined: Mon Sep 18th, 2017

Location: Grove City, Ohio USA

Posts: 6436

Name: Jim ...

Occupation: 5 axis cnc programmer ...

Interests: RBV's ...

Status:

Offline

Reputation:

Reputation Points: 6436

Member's Gallery

Took redrum for a long drive today, went to work and back. Had to stop after I was almost home at a wendys. While I was waiting in line steam started coming up out of the hood. As if the truck doesn't already scream "look at me". It didn't get hot so I continued through and got the chicken nuggets and fries for my son that won't eat much else and went home.

It looks like it was coming from the front where the top hose and heater hose go in to that whatever it is they all tie in to. Looks to be plastic. Is this something that happens a lot? I couldn't identify the exact location so I'll bring a pressure tester home from work and trick it in to spewing. It is a new problem, no evidence of it from before.

Didn't get hot but did loose some coolant.

____________________
00 XLT 4WD RCSB 3.GO! JalapeÃ±o
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.

Already liked -

Quote

Posted: Sat Aug 4th, 2018 09:42 pm

Quote

2^nd Post

JAMMAN

Owns A Torsen

Joined: Mon Sep 18th, 2017

Location: Grove City, Ohio USA

Posts: 6436

Name: Jim ...

Occupation: 5 axis cnc programmer ...

Interests: RBV's ...

Status:

Offline

Reputation:

Reputation Points: 6436

Member's Gallery

Just went out and looked, either the thermostat housing is cracked or someone left it loose when they replaced a thermostat I can move it around like it is not connected.

I was in there too and could have had it out in a couple minutes LOL my luck.

____________________
00 XLT 4WD RCSB 3.GO! JalapeÃ±o
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.

Already liked -

Quote

Posted: Sun Aug 5th, 2018 09:24 pm

Quote

3^rd Post

JAMMAN

Owns A Torsen

Joined: Mon Sep 18th, 2017

Location: Grove City, Ohio USA

Posts: 6436

Name: Jim ...

Occupation: 5 axis cnc programmer ...

Interests: RBV's ...

Status:

Offline

Reputation:

Reputation Points: 6436

Member's Gallery

Hi me, how am I? Fine and how about me? Doing well LOL

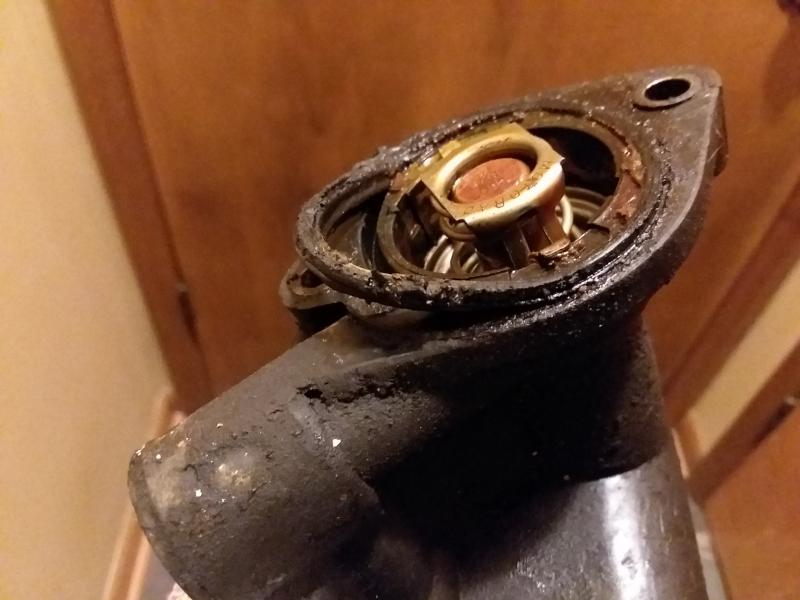

Anyhow I took it off and the problem was there was no bolt on the left. So it eventually wiggled loose and popped. I bet the guy before me replaced the thermostat and didn't tighten the bolt. No telling how long it had been out the hole was filled with crud and rusted. I'll run a tap in it after blowing it out.

I'll put a couple socket heads and hardened washers in there but that is more than an o-ring it is some sort of a weird rectangular thing molded into a circle.

The way I took this off is so much easier than any tutorial I saw might have to write one.It was literally 10 minutes.

____________________
00 XLT 4WD RCSB 3.GO! JalapeÃ±o
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.

Already liked - 1 like likes

MaDMaXX

Quote

Posted: Mon Aug 6th, 2018 10:00 am

Quote

4^th Post

410customs

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

Member's Gallery

look at that themo housing!! they just got crappier and crappier over the years didnt they? Sorry I dont see alot of 4 bangers in the shop unless they are going to the crusher in favor of a big 6 or the 8

I miss metal
That plastic dude looks neglected
My 9 year old is a "super taster" he will not anything that is not bland...its a huge struggle to feed this kid anything healthy!!

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked -

Quote

Posted: Mon Aug 6th, 2018 10:27 am

Quote

5^th Post

NoPower

Don

Joined: Fri Oct 20th, 2017

Location: Grove City, Ohio USA

Posts: 590

Name: Don ...

Occupation: Retired ...

Interests: Grand Kids,Car Shows,DYI projects ...

Status:

Offline

Reputation:

Reputation Points: 590

Member's Gallery

That gasket fits on the edge of the thermostat. You can tell by the grove in the gasket.

Last edited on Mon Aug 6th, 2018 10:28 am by NoPower

____________________
1984 ElCamino (Show Car)
2000 Mustang (Show Car)
1995 Chrysler Concord belong to Earl
2014 Ford Escape SE 1.6 Turbo
1958 Wife (Arm Candy)
15 Grand Children

Already liked -

Quote

Posted: Mon Aug 6th, 2018 03:35 pm

Quote

6^th Post

chris

Wrench spinner

Joined: Thu Oct 5th, 2017

Location: Leigh On Sea

Posts: 642

Name: Chris ...

Occupation: Retired ...

Interests: Science, technology, horses ...

Status:

Offline

Reputation:

Reputation Points: 642

Member's Gallery

Lol leaky O rings are the bane of my life today - shower pump spewing water, push on hose connector O ring on the hot side hardened & perished - new hose £20 - 2 new O rings £3 so now I have a dry cupboard and a spare O ring for when it goes again.....

____________________

MG power

Already liked -

Quote

Posted: Mon Aug 6th, 2018 10:24 pm

Quote

7^th Post

JAMMAN

Owns A Torsen

Joined: Mon Sep 18th, 2017

Location: Grove City, Ohio USA

Posts: 6436

Name: Jim ...

Occupation: 5 axis cnc programmer ...

Interests: RBV's ...

Status:

Offline

Reputation:

Reputation Points: 6436

Member's Gallery

The gasket was just plain weird I have never seen anything like it.
I cleaned things up, put a new gasket on, ran a tap in the holes (M6 X 1.0), cleaned up the surface with a scraper and some emery, put it back on with 2 socket head screws and hardened washers.

Drove it around for a while, everything seemed OK so I'm taking it to work tomorrow.

____________________
00 XLT 4WD RCSB 3.GO! JalapeÃ±o
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.

Already liked -

Quote

Posted: Tue Aug 7th, 2018 08:10 pm

Quote

8^th Post

JAMMAN

Owns A Torsen

Joined: Mon Sep 18th, 2017

Location: Grove City, Ohio USA

Posts: 6436

Name: Jim ...

Occupation: 5 axis cnc programmer ...

Interests: RBV's ...

Status:

Offline

Reputation:

Reputation Points: 6436

Member's Gallery

It didn't leak a drop, but the temp didn't go past 1/4. I guess I should have replaced the thermostat while I was in there?

____________________
00 XLT 4WD RCSB 3.GO! JalapeÃ±o
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.

Already liked -

Quote

Posted: Tue Aug 7th, 2018 08:28 pm

Quote

9^th Post

1qaz
Member

Joined: Sun Feb 25th, 2018

Location: USA

Posts: 198

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 198

Member's Gallery

Well, since you were in there...

Already liked -

Quote

Posted: Tue Aug 7th, 2018 08:29 pm

Quote

10^th Post

MaDMaXX

Hails from the land of rust!

Joined: Sat Oct 21st, 2017

Location: Oregon USA

Posts: 1368

Name:

Occupation:

Interests: Motorsport/Firearms/IT ...

Status:

Offline

Reputation:

Reputation Points: 1368

Member's Gallery

i'm assuming it's not fully closing then.

____________________
2002 - 3.0 - 4x2 - Edge

Upgrades/Maintenance log

Already liked -

Quote

Posted: Tue Aug 7th, 2018 09:46 pm

Quote

11^th Post

JAMMAN

Owns A Torsen

Joined: Mon Sep 18th, 2017

Location: Grove City, Ohio USA

Posts: 6436

Name: Jim ...

Occupation: 5 axis cnc programmer ...

Interests: RBV's ...

Status:

Offline

Reputation:

Reputation Points: 6436

Member's Gallery

That would be my assumption. That or I screwed up a sensor cleaning the housing with solvent.

There are 2 sensors, one for the computer and one for the gauge which doesn't make sense but whatever. Maybe it was cheaper.

I guess I should forscan it to see what the temp really is that's a great idea. The switch to the blend doors is busted too so I can't tell if there is heat or not. The PO indicated it cooled better than it heated so I have some work ahead of me. I just want it to be drivable for the next owner.

The tensioner started squeaking after it got douched with hot coolant too. Not a belt squeak a bearing squeak.

This thing isn't a money pit so far but it is a work pit.

____________________
00 XLT 4WD RCSB 3.GO! JalapeÃ±o
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.

Already liked -

Quote
