I have never seen an intake like this       #: 2633
 Moderated by: Mike69, MaDMaXX,
New Topic Reply
 Rate Topic
 Posted: Sat Mar 11th, 2023 02:18 pm
PM Quote Reply
1st Post
JAMMAN

Owns A Torsen


Joined: Mon Sep 18th, 2017
Location: Grove City, Ohio USA
Posts: 6429
Name: Jim ...
Occupation: 5 axis cnc programmer ...
Interests: RBV's ...
Status:
Offline
Reputation:
Reputation Points: 6429
Member's Gallery

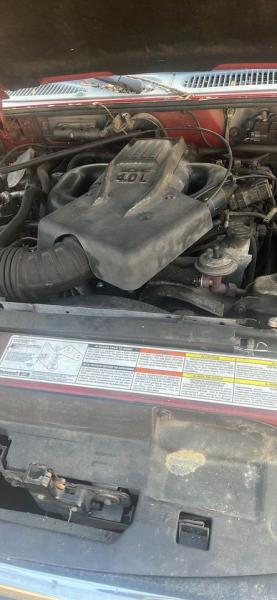

 OK maybe I missed a few pages of ford history, this is a SOHC in a 2000 expo what is the setup? Looks painfully stock.




____________________
00 XLT 4WD RCSB 3.GO! Jalapeño
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.
Back To Top PM Quote Reply

 Posted: Sat Mar 11th, 2023 10:57 pm
PM Quote Reply
2nd Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1690
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1690
Member's Gallery
 It is, looks just like the intake on our 99 Sport 4.0 SOHC.



____________________
21 Bronco Sport Big Bend (Wife's DD)
05 F150 XLT Reg Cab, 2WD, 5.4L, Auto (My DD)
00 Ranger Extd Cab 4x4 4.0 OHV, Auto
99 Explorer Sport 4x4 4.0 SOHC, Auto
69 Mustang Coupe 5.0, 5 spd 9" rear(Project)
14 Kawasaki Vulcan (Wife's Toy)
Back To Top PM Quote Reply

 Posted: Sun Mar 12th, 2023 03:11 pm
PM Quote Reply
3rd Post
410customs

Idahome


Joined: Wed May 2nd, 2018
Location: Panhandle, Idaho USA
Posts: 2165
Name: Jamie ...
Occupation: Elevator Design Worlds Tallest Buildings ...
Interests: Ranger Based Vehicles and OFFROAD ...
Status:
Offline
Reputation:
Reputation Points: 2165
Member's Gallery
 that is the 97-03 SOHC intake manifold after you remove the SOHC plastic engine cover
Fun fact the sohc intake actually has a power flap that changes the length of the intake runners for more torque

I hate the early 97-01 engines the intake must come off to change the timing tensioner, the intake plenum is two pieces and upper and a lower and all the O rings fail due to Ethenol........also it makes a wonderful home for rodents!!

All 97-02 explorer sohc engines, 01-04 ranger, and others look like this so yes you musta missed something, but don't fret, I don't want to own one of these either!!



____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks
Back To Top PM Quote Reply

 Posted: Sun Mar 12th, 2023 06:39 pm
PM Quote Reply
4th Post
JAMMAN

Owns A Torsen


Joined: Mon Sep 18th, 2017
Location: Grove City, Ohio USA
Posts: 6429
Name: Jim ...
Occupation: 5 axis cnc programmer ...
Interests: RBV's ...
Status:
Offline
Reputation:
Reputation Points: 6429
Member's Gallery
 The only 4.0 SOHC's I have seen look like this:




____________________
00 XLT 4WD RCSB 3.GO! Jalapeño
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.
Back To Top PM Quote Reply

 Posted: Mon Mar 13th, 2023 09:07 am
PM Quote Reply
5th Post
DILLARD000
Member


Joined: Wed Nov 25th, 2020
Location:
Posts: 12
Name: .
Occupation: .
Interests:
Status:
Offline
Reputation:
Reputation Points: 12
Member's Gallery

Early 1996~2000 V6~4.0L~SOHC Engin has a 'VariableVolume" IntakeManifold, looks like a "Pretzel".


Factory MidYear 2001 & Later V6~4.0L~SOHC Engin has a redesigned simpler IntakeManifold.
Yep, you don't want to own an early 4.0L~SOHC Engin; way too many design+production problems.

Early 1996~2000 IntakeManifold, the "Pretzel"

Attachment: 2001.Ford_Engi.AirN_Mani.VLIM_2000.0101~2000.0623.JPG (Downloaded 15 times)

Last edited on Mon Mar 13th, 2023 09:27 am by DILLARD000



____________________
DILLARD000 has a 2001 SportTracJob2, V6~4.0L~SOHC Engin, 5r55e Trans, 1354 4WDTC, LS4.10+OS4.10 Diffs
Details & maintenance links at http://2001fordexplorersporttrac.fandom.com
Back To Top PM Quote Reply

 Posted: Mon Mar 13th, 2023 09:24 am
PM Quote Reply
6th Post
DILLARD000
Member


Joined: Wed Nov 25th, 2020
Location:
Posts: 12
Name: .
Occupation: .
Interests:
Status:
Offline
Reputation:
Reputation Points: 12
Member's Gallery
Later 2001+Later IntakeManifold

Attachment: s-l1604.JPG (Downloaded 15 times)

Last edited on Mon Mar 13th, 2023 09:28 am by DILLARD000



____________________
DILLARD000 has a 2001 SportTracJob2, V6~4.0L~SOHC Engin, 5r55e Trans, 1354 4WDTC, LS4.10+OS4.10 Diffs
Details & maintenance links at http://2001fordexplorersporttrac.fandom.com
Back To Top PM Quote Reply

 Posted: Sat Mar 18th, 2023 01:33 am
PM Quote Reply
7th Post
JAMMAN

Owns A Torsen


Joined: Mon Sep 18th, 2017
Location: Grove City, Ohio USA
Posts: 6429
Name: Jim ...
Occupation: 5 axis cnc programmer ...
Interests: RBV's ...
Status:
Offline
Reputation:
Reputation Points: 6429
Member's Gallery
 Found another one. Ad claims it is a 99 and if it is, they must have put whatever 4.0 they had laying around in crates into production vehicles BECAUSE I bought a 99 for the 4.0 one time... it was a "OHV". I'm sure it was a 99 and I'm sure it was a OHV because Adam helped me dismantle it to put in a white 98 ranger.




____________________
00 XLT 4WD RCSB 3.GO! Jalapeño
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.
Back To Top PM Quote Reply

 Posted: Sat Mar 18th, 2023 11:18 am
PM Quote Reply
8th Post
Mike69

Mustang Nut


Joined: Sun Oct 22nd, 2017
Location: Horsepasture, USA
Posts: 1690
Name: Mike ...
Occupation: Semi-retired ...
Interests: Vintage Mustangs, RBV's, car shows, & woodworking ...
Status:
Offline
Reputation:
Reputation Points: 1690
Member's Gallery
 The 4.0 OHV & the SOHC engines were both available in 99 IIRC. I remember when we were looking for our current 99 Explorer we saw some that had the OHV engine in them.
