I loaned my truck to my neighbors 25 year old daughter so she could get a love seat for her apartment about 3 weeks ago. She spilled a coke or some other sugary drink on the door and it found its way into the power door lock switch. I sprayed it down with alcohol and put a fan on it to dry it out. It works unlocking and about a third of the time locking.

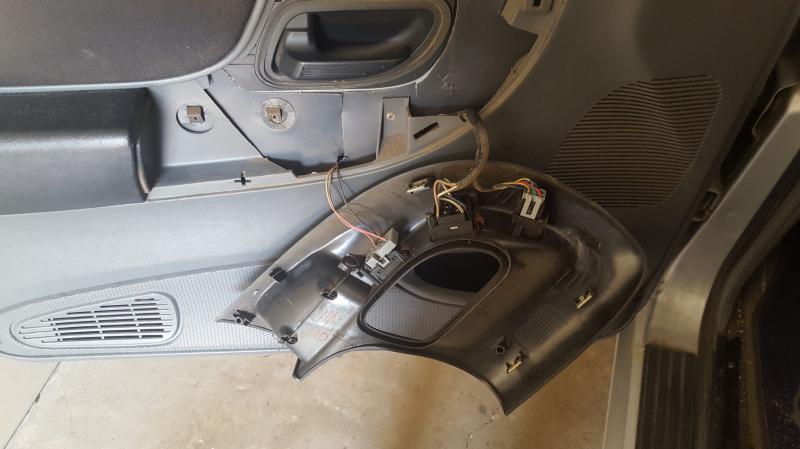

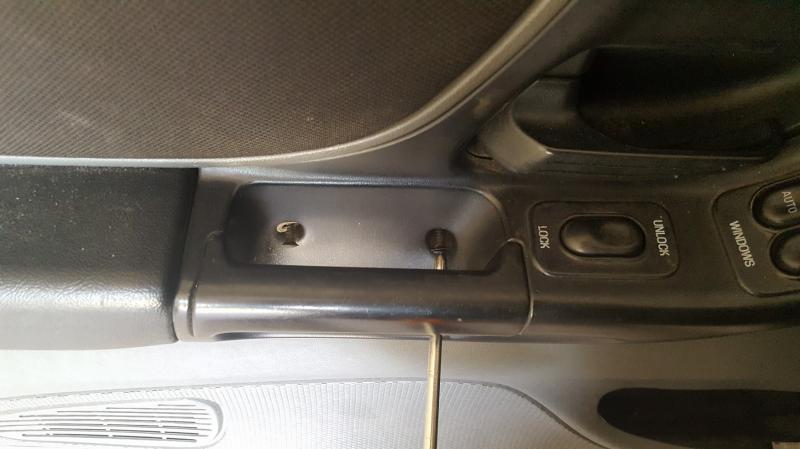

I took out the two screws and then popped off the panel.

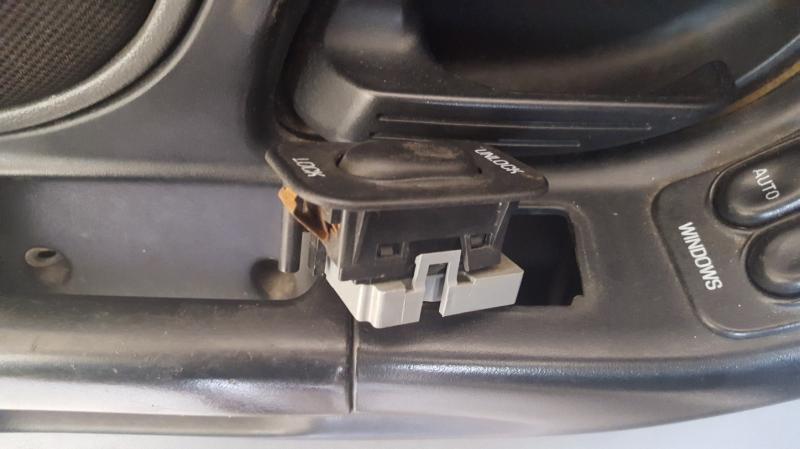

I then popped the switch housing up through the hole in the panel.

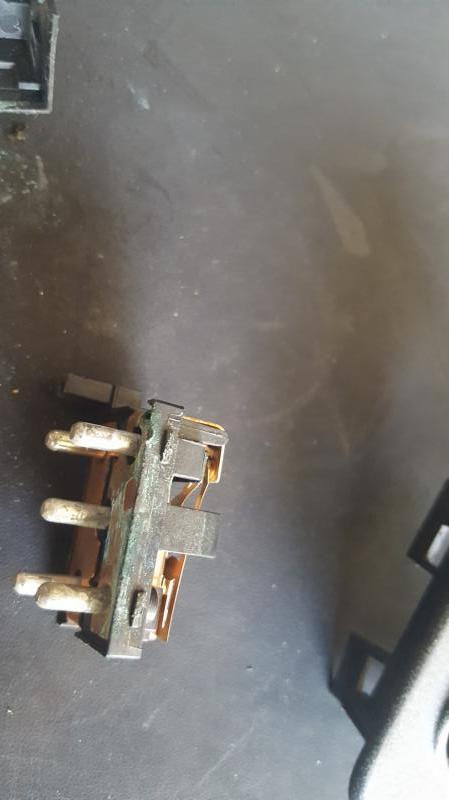

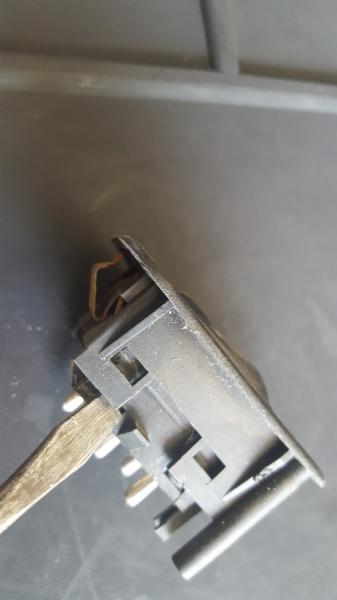

Once I had the switch separated from the housing it became obvious why it was working intermittently.

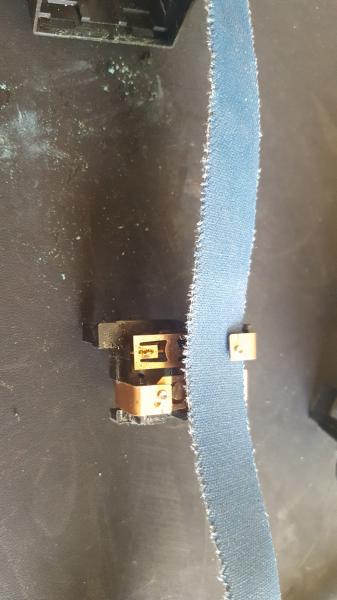

I used emery cloth on the contacts. Then ran a small strip through the female plug side (sorry no picture).

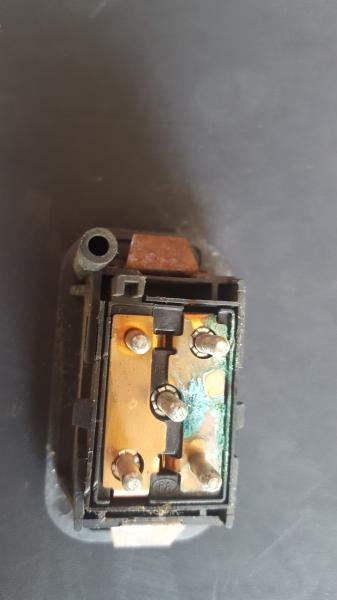

I used a toothbrush and some Flitz metal polish to scrub down the metal male plug to get rid of the corrosion then cleaned it up with alcohol. Once I was satisfied the corrosion was gone I coated with a light coating of dielectric grease and popped everything back together after I tested it.

Looking at the way the switch pops into the arm rest the panel probably did not need to come off. A flat tool could probably pop the switch housing up through the hole but there is the chance of damaging it.

It took longer to up load the pictures and write this up than it did to fix the problem. Also in true fashion I locked my keys inside the truck once I was through.

Last edited on Wed Jun 19th, 2019 02:36 pm by Tsquare

____________________
Tony
NE ATL
'04 XLT regular cab 3.slo stepside
Semi retirement

Already liked -

Quote

Posted: Wed Jun 19th, 2019 03:57 pm

Quote

2^nd Post

mhoward
Hey look ~ they ~ bounce!

Joined: Sun Oct 22nd, 2017

Location: Evansville, USA

Posts: 2736

Name: Michael ...

Occupation: Technology Manager ...

Interests: Trucks / Guitars & Music / Things that go BANG ...

Status:

Offline

Reputation:

Reputation Points: 2736

Member's Gallery

Nice write up Tony! Sorry about the locking keys inside thingy! Glad it worked for ya!

____________________
-- Michael

2003 Ranger Edge / Extended Cab / Flareside / 3.0L FLEX / 5r44e Auto / 2WD / 8.8 LS 4:10 / Sonic Blue Pearl

So many mods... so little time...

Already liked -

Quote

Posted: Wed Mar 11th, 2020 09:59 pm

Quote

3^rd Post

Scrambler82
Old Bastard !

Joined: Fri Dec 22nd, 2017

Location: California USA

Posts: 2108

Name: Grev B ...

Occupation: Quality Assurance Engineer ...

Interests: Rangers, Photography, Metal Bending ...

Status:

Offline

Reputation:

Reputation Points: 2108

Member's Gallery

Tony,
You do know the secret of unlocking the Ranger Doors without a key.

Answer: "A Screwdriver" !

____________________
Ltr,
2003 EDGE, Std Cab, Steppie, E4 Red, 5sp, 4x
5" SuperLift, 33" x 12.50 x 15"
Hurst Shifter
Mod'd Backrack to fit Steppie
Front and Rear Bumpers by Custom 4x4 Fabrication, OK; now Mike's Welding and Fabrication.
Working on more Mods, just need more time, longer days would work !

Already liked -

Quote

Posted: Thu Mar 12th, 2020 08:18 pm

Quote

4^th Post

Tsquare
Member

Joined: Fri Nov 10th, 2017

Location: Suwanee, Georgia USA

Posts: 1540

Name:

Occupation: Controlled Insanity ...

Interests:

Status:

Offline

Reputation:

Reputation Points: 1540

Member's Gallery

I have a hidden key box with a non-pats key on the truck. I have two fobs and I leave the key in it most of the time taking a fob with me. Both fobs were in the cup holders and the key was in the ignition.

I had a buddy slide the tip of his knife under the door handle and push the locking rod with the back of the blade to pop the lock.
