Posted: Mon Apr 11th, 2022 01:32 pm

Quote

176^th Post

Eddie Money
Member

Joined: Mon Nov 13th, 2017

Location: Pacific North West

Posts: 1587

Name:

Occupation:

Interests: Burt gummer life ...

Status:

Offline

Reputation:

Reputation Points: 1587

Member's Gallery

"Added by eddie, posted by 410custom "

Engine bay is next up! With her on the lift I can get under the truck or I can put her way down and get over the engine
I need to install the starter, starter wiring harness, along with trans wiring and plumbing
After that I will be putting the engine and exhaust together complete with the Holley computer, efi, wiring and a single wide band 02 sensor
The truck has a refreshed 302 we pulled from a 104k 98 limited. The engine was dressed with all new gaskets and a comp xr cam and springs. The torque monster headers were installed and the long block was dropped into the bay along with the 104k transmission
Then later I removed that trans and used it in a different ranger . Because we got a fresh built 4r70w with some mild upgrades for this truck from @Brett aka high plains performance transmission.

Recap over back to present day

Teaser pic till I get some pc time

____________________

I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger

Already liked -

Quote

Posted: Mon Apr 11th, 2022 01:36 pm

Quote

177^th Post

Eddie Money
Member

Joined: Mon Nov 13th, 2017

Location: Pacific North West

Posts: 1587

Name:

Occupation:

Interests: Burt gummer life ...

Status:

Offline

Reputation:

Reputation Points: 1587

Member's Gallery

"Added by eddie, posted by 410custom "

Okay one more
It's a shame to take the tires back off and put on the lift I could stare at her all day
Two years in bay two
You can for sure tell she's like a Kardashian
You can tell she's â€œhad some work doneâ€

____________________

I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger

Already liked -

Quote

Posted: Mon Apr 11th, 2022 01:40 pm

Quote

178^th Post

Eddie Money
Member

Joined: Mon Nov 13th, 2017

Location: Pacific North West

Posts: 1587

Name:

Occupation:

Interests: Burt gummer life ...

Status:

Offline

Reputation:

Reputation Points: 1587

Member's Gallery

"Added by eddie, posted by 410custom "

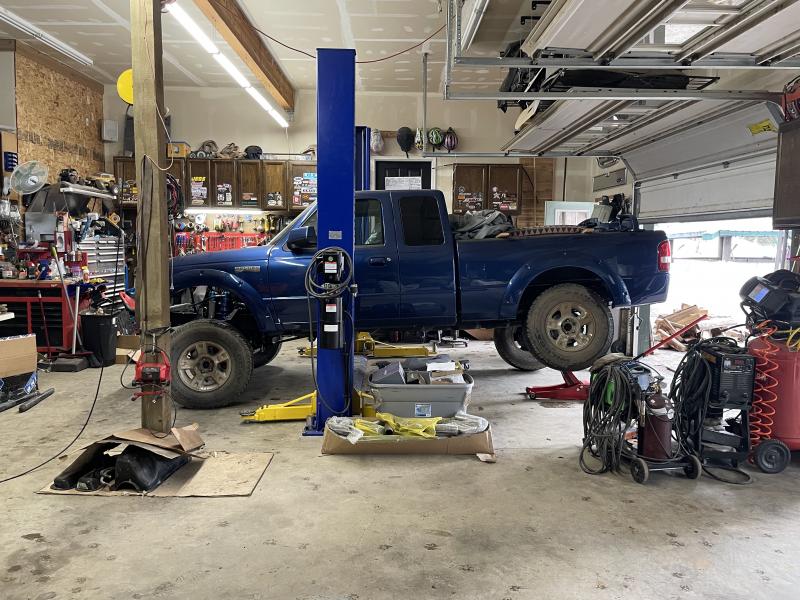

Back at it! truck is now on the lift where much work has been taking place

Had some fun with the floor jack before going up on the lift

Sorry for the messy shop! I was able to clean this up later

First up once she was lifted was to finish the rear axle install.
I had to bend up a new brake hard line for it using a 53" piece of coated 3/8" brake line from Napa
I think it was 53?
Anywho we measured in the store compared the old rusty part to the new lines

Last edited on Mon Apr 11th, 2022 01:40 pm by Eddie Money

____________________

I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger

Already liked -

Quote

Posted: Mon Apr 11th, 2022 02:15 pm

Quote

179^th Post

Eddie Money
Member

Joined: Mon Nov 13th, 2017

Location: Pacific North West

Posts: 1587

Name:

Occupation:

Interests: Burt gummer life ...

Status:

Offline

Reputation:

Reputation Points: 1587

Member's Gallery

This is major milestone of the build. The suspension fab work has been tacked, welded, primed, painted, and installed!!

If you look at the front suspension while the truck is lifted on the lift you'll notice gobbs of droop or travel.

410custom has done an awesome job of marrying the superlift, TTD kit, King shocks, and fordpickupman plasma cut brackets, modified torsen bar brace and his fabrication. I couldnt be happier!!! The red calipers are icing on the cake!!!
These pictures and in depth explanations take the build to a whole nother level.

Sincere thanks 410custom!!

Stick around, more updates coming!!!

Last edited on Mon Apr 11th, 2022 02:20 pm by Eddie Money

____________________

I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger

Already liked -

Quote

Posted: Tue Apr 12th, 2022 10:16 pm

Quote

180^th Post

Eddie Money
Member

Joined: Mon Nov 13th, 2017

Location: Pacific North West

Posts: 1587

Name:

Occupation:

Interests: Burt gummer life ...

Status:

Offline

Reputation:

Reputation Points: 1587

Member's Gallery

"Added by eddie, posted by 410custom"

Ok, installed the B&M differential cover. 3 coats of red 3 coats of clear....came out sick!

hangtime

new brake line, and rear brake lines installed
Speed sensor wired up, begin install of new E brake cables

diff cover installed with gasket and thin coat of permatex on both sides
Diff and cover were thoroughly cleaned first, of course

rear brakes plumbed and ready to be bled

____________________

I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger

Already liked -

Quote

Posted: Tue Apr 12th, 2022 10:26 pm

Quote

181^st Post

Eddie Money
Member

Joined: Mon Nov 13th, 2017

Location: Pacific North West

Posts: 1587

Name:

Occupation:

Interests: Burt gummer life ...

Status:

Offline

Reputation:

Reputation Points: 1587

Member's Gallery

"Added by eddie, posted by 410custom"

more of the rear axle

new hardline hand bent to shape, I have done this many times it is never easy to get it right (or at least close!)

brake lines mounted with all factory clips / hardware
new E brake cables visible

ooooh la la

Time to switch up focus to the drivetrain
Next parts to be installed are transmission cooler lines, starter, starter wiring harness, transmission wiring harness (customized) converter cover plate and of course we will need some exhaust down pipes.

I setup a bench for doing exhaust, I have this milwaukee band saw just for this, fits nicely in the vise

layout all the pieces and start fabricating
To start I used a few inches of the factory pipes, they give me the bends needed to clear the front diff and get the exhaust routed properly

start cutting the pieces I need, each piece was de burred, chamfered, and sanded smooth for a good fit and good weld prep

many hours later

right where I want the pipes!
Dual 2.5" all the way out
I might incorporate an x pipe to help equalize the banks
Also found perfect spot for the wideband 02 sensor

custom downpipes

all cleaned up

Last edited on Tue Apr 12th, 2022 10:27 pm by Eddie Money

____________________

I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger

Already liked -

Quote

Posted: Tue Apr 12th, 2022 10:35 pm

Quote

182^nd Post

Eddie Money
Member

Joined: Mon Nov 13th, 2017

Location: Pacific North West

Posts: 1587

Name:

Occupation:

Interests: Burt gummer life ...

Status:

Offline

Reputation:

Reputation Points: 1587

Member's Gallery

"Added by eddie, posted by 410custom"

I am using a 220v mig with c02 / argon it's a harbor freight multiprocess unit. But I have not taken the time to learn how to use the tig yet. It is also powered by a generac pos rattle trap of a portable generator. We are off grid so anytime you see me run a 220 welder, plasma, lift, etc it is all run of a portable generac pos rattle trap of a gasoline genset. No need to burden our main battery bank with those heavy loads plus battery banks and welders have been known to not get along

After being off grid for almost 5'years now you learn a lot about generators, generac is not very good lol next time I will get a Honda

This is the first time I have built down pipes from scratch . I am now addicted to fabricating exhaust! So many years paying shop to cobble things together now I can finally Re do my own exhaust the way I want it

We will need to order up two mufflers for this beast. I am a big fan of borla exhaust, but I also love the sound of flowmaster and some others, plus I have had good luck with no name mufflers. I have heard good things about spintech and always wanted to try their design. This is the stage of the muffler selection as of now. We need something slightly compact so I can stuff two of them under here, also I want straight through flow no chambers if I can help it

Last edited on Tue Apr 12th, 2022 10:35 pm by Eddie Money

____________________

I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger

Already liked -

Quote

Posted: Tue Apr 12th, 2022 10:51 pm

Quote

183^rd Post

Eddie Money
Member

Joined: Mon Nov 13th, 2017

Location: Pacific North West

Posts: 1587

Name:

Occupation:

Interests: Burt gummer life ...

Status:

Offline

Reputation:

Reputation Points: 1587

Member's Gallery

"Added by eddie, posted by 410custom"

I am learning much from this
My welds will improve, for these pipes the tack welds are done in the truck upside down.... have to hold parts, weld, not get burned, etc
Then the final welds were done on a utv tailgate and it had been a long day.....I know I can do better as I get more practice
Sorry Eddie your truck is the Guinea pig! although if these ever fall apart it will give us a good reason to have a visit

I do plan to wrap the downpipes, I like to use exhaust wrap to push the heat further downstream past the transmission and passenger floorboards

Now that the downpipes are located and mostly sorted out I was able to get back to installing the trans cooler lines, torque converter cover, starter, starter wiring harness and trans wiring harness
Lower trans shield installed! Every little bit counts (sometimes I search for a while just to find the bolts!!)

trans cooler lines, cleaned inside and out, slightly bent to conform to my design
Worked out nicely! I like to use the factory metal lines as opposed to cutting them and running hoses simply because the metal lines do such a good job of dissipating heat, reduce the number of hose clamps, and they are tough

two straight pipes in place to ensure I get the downpipes positioned properly
I am building a few exhaust mounts into the system, first one will be at the trans mount similar to a stock 5.0
you can see cooler lines installed
cooler lines, starter wiring harness installed, do not forget to mount the supports! Hardcore 5.0 dudes will notice for my purpose here I haver moved the trans support bracket to the same bolt as the wiring harness support bracket

That is the underside of the pass engine mount plate
cooler lines in place!

104K starter and starter wiring cleaned and installed. All terminals cleaned and treated with anti corrosion spray

can see the lower trans shield from before is also in, over to the right is our red urethane front diff bushing

another shot of the wiring and cooler line supports, proper routing

the starter / charging harness is mounted to the front of the 5.0 here with these two brackets

transmission cooler lines are wrapped with some heat shield material when in proximity to the exhaust. Remember exhaust downpipes will be wrapped also

____________________

I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger

Already liked -

Quote

Posted: Sun Apr 17th, 2022 12:27 pm

Quote

184^th Post

Eddie Money
Member

Joined: Mon Nov 13th, 2017

Location: Pacific North West

Posts: 1587

Name:

Occupation:

Interests: Burt gummer life ...

Status:

Offline

Reputation:

Reputation Points: 1587

Member's Gallery

"Added by eddie, posted by 410custom"

Now time to start the wiring for this rig
It all begins at the starter, alternator, ac and low oil level harness from the 98 5.0 104K donor
harness is cleaned and repaired before install

I can use this harness as it is, no mods needed

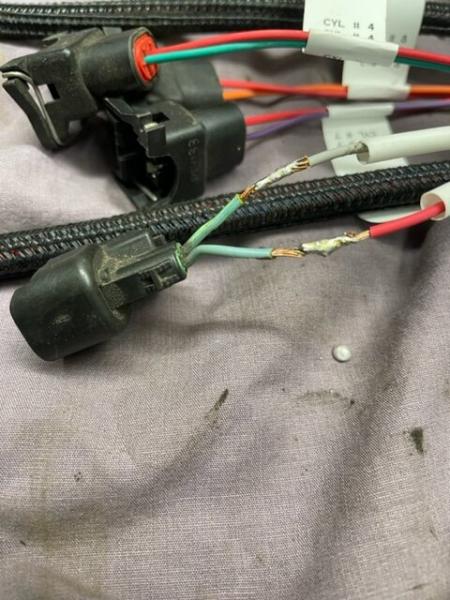

typical repair of the factory wrap

transmission / 02 sensor harness is getting cleaned up, this dude will need some mods for our build

FYI the wiring harness are the dirtiest part of a build! much time is spent wiping them down so I can work with them

So when Brett built our 4r70w we make sure to use the 98-01 style bulk head wiring connector along with its corresponding internal hard wiring harness and 98-01 style solenoids
Half way through 97 the 4r70w changed from 9 wires to 7. I needed to make sure I had the correct harness/bulkhead fitting before plugging it in

7 wires we have the correct harness, no mods needed
I keep this chart (along with many others) pinned to the wall in the shop because I am often making changes to these transmissions

Now inside the 5.0 transmission harness is also 3 of the 02 sensors. This truck will be using a single wideband 02 sensor with the Holley drivetrain computer....so I removed two of the 02 sensors and their wiring. I will route the bosch 02 sensor to the holley computer using the factory wires and blue plug

time to unpin the removed wires, harness is cut down and 2ea 02 sensors go bye bye

Harness will be re wrapped and installed along with the transmission case vent

____________________

I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger

Already liked -

Quote

Posted: Sun Apr 17th, 2022 12:29 pm

Quote

185^th Post

Eddie Money
Member

Joined: Mon Nov 13th, 2017

Location: Pacific North West

Posts: 1587

Name:

Occupation:

Interests: Burt gummer life ...

Status:

Offline

Reputation:

Reputation Points: 1587

Member's Gallery

"Added by eddie, posted by 410custom"

Guess what
The Holley system INCLUDES the transmission plugs as well as wiring to the 02 sensor no splicing into the factory harness.
I am reading the instructions..
Again

So no need to mod the factory trans harness
Forget all that stuff I posted this am about that
Whoops stupid human brain fart (goes to remove factory trans harness from truck)
Battle on

Last edited on Sun Apr 17th, 2022 12:30 pm by Eddie Money

____________________

I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger

Already liked -

Quote

Posted: Sun Apr 17th, 2022 12:33 pm

Quote

186^th Post

Eddie Money
Member

Joined: Mon Nov 13th, 2017

Location: Pacific North West

Posts: 1587

Name:

Occupation:

Interests: Burt gummer life ...

Status:

Offline

Reputation:

Reputation Points: 1587

Member's Gallery

" Added by eddie, posted by 410custom "

Phew okay

Sorry for the trans harness debacle I got on a roll.. I always dig out and stage the next set of parts to be installed the trans harness was just begging to be cut up and Re wrapped. Now I basically destroyed a perfectly good 98 5.0 trans harness lol lol

We spent much time yesterday researching mufflers enough to make my head spin. I learned hooker exhaust is actually Holley very interesting, they have a very nice active exhaust system which is way out of our budget. Also been looking at vertex mufflers which are tunable electronically sweet but $350 each plus $350 for the controller plus plus plus stuff is wicked cool but can get expensive and complex real quick! I researched crossovers and cutouts as well

I ended up ordering a 2.5â€ x pipe we will be incorporating instead of an h pipe like I had planned. X pipe is for sure the way to go and a crossover is a very good idea in a system like this it improves power and torque and it lowers the decibels a bit.
I am still researching mufflers but again I am leaning towards to basic Borla single in single out units. Once the truck is running and in service and proves itself (like a good 5.0 ranger) then we can come back and do electronic cutouts or electronic mufflers etx right now that $$$ and time is needed for shocks, wheels, tires, fuel system, etc etx

I read and Re read the. Entire Holley terminator manual. Way too easy! Seriously. I am holding my tongue right now but that Holley system makes it way easy to get this 5.0 and 4r70w up and running

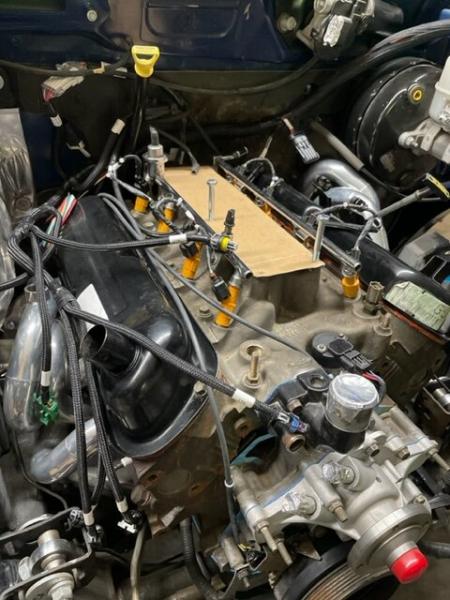

Wire in the factory mas, tps, crank sensor, cam synchronizer, injectors, and a few other things really very straight forward. I have the coil pack drivers needed to run the stock 5.0 dis for now that is the way we are headed. Running 8ea ls coils and converting to a cop engine sounds fun too, but i have this system here so that's what this truck is getting.

I have already attached the Holley transmission wiring harness and routed it up the spine of the trans. I need to order a line pressure sensor from Holley this will allow us to monitor trans line pressure, a nice option from Holley wiring is included

I also built the Downpipes exhaudt support from the factory 5.0 bits. Once I finish this work up today I am lowering the truck down so o can put the engine together. I have some hurdles to overcome like fuel system plumbing / regulation otherwise I see no reason I can't have the engine together, wired, the Holley pcm mounted and ready to begin the programming process very very soon

Yes I am using the factory 98 5.0 starter/alternator/ac harness it includes all battery power wires, engine and chassis ground, alternator charging circuit, ac compressor clutch wires and low oil level pan sensor wires. No mods made to that harness.
Yes it is totally possible to
Build your own starter harness, battery cables, alternator harness from scratch, I have done that many times too
98 explorer has two starter relays one is in the power junction box and the other is of course built into the starter itself.

Last edited on Sun Apr 17th, 2022 12:34 pm by Eddie Money

____________________

I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger

Already liked -

Quote

Posted: Sun Apr 17th, 2022 12:40 pm

Quote

187^th Post

Eddie Money
Member

Joined: Mon Nov 13th, 2017

Location: Pacific North West

Posts: 1587

Name:

Occupation:

Interests: Burt gummer life ...

Status:

Offline

Reputation:

Reputation Points: 1587

Member's Gallery

"Added by eddie, posted by 410custom"

Exhaust downpipe supports built to sit in the factory 5.0 hanger

Parts removed and ready for final welding
Holley provided 02 sensor wiy bung also in place, requires drilling a 7/8â€ hole

Holley provided bung

5.0 exhaust hanger in place
You can also see the Holley transmission wiring harness has been installed

Here is the harness as shipped

There are several loose wires included with the holley, reverse trigger, od on off, and others
You can also see the included harness for the optimal transmission line pressure transducer which I plan to add to our 4r70w

I thought it was interesting that all 10 pins are populated in the 4r70w connector, this is the 98-01 4r70w harness

Interesting, during setup we will be telling the new computer what trans we have so I assume this works with both 92-97 versions of the 4r as well as our 98-01
Style solenoids
Hard to wrap your head around when you are the guy always moving these pins around and deleting power feeds? How can the Holley computer move battery power from one wire to a different one and replace it with the solenoid trigger wire?? It maybe that the wiring changes for our 98-01 specific model happen upstream and they just leave all 10 pins in place.
Yes I have a tendency to over think things.

More on the â€œloose wiresâ€ in the 4r70w Holley harness

Compared to the wiring I normally have to do for a v6 to v8 conversion this is a breath of fresh air. Getting the 07 truck can bus system to be happy with it is another story since the 07 sohc pcm was part of the system. More on that later as we get deeper into this
This Holley system would be perfect for say a 1988 bronco ii that was going 5.0 lol lol 20 years later!!

The Holley harness includes connectors for both types of 4r70w oss sensors just fyi

Holley wiring harness is very high quality

____________________

I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger

Already liked -

Quote

Posted: Sun Apr 17th, 2022 12:43 pm

Quote

188^th Post

Eddie Money
Member

Joined: Mon Nov 13th, 2017

Location: Pacific North West

Posts: 1587

Name:

Occupation:

Interests: Burt gummer life ...

Status:

Offline

Reputation:

Reputation Points: 1587

Member's Gallery

"Added by eddie, posted by 410custom"

Now more on the exhaust pipes and how they fit a ranger I have them tucked up higher then the frame rails and there is a ton of room in here compared to a stock 5.0 system, very good for keeping the trans cool!

02 sensor mounting info from holley
Basically within 10-12â€ of the header collector on one bank and mount it so no moisture can hit the tip

I picked a nice spot where the wires can reach easily, plenty of room for 02 sensor socket, and it's tucked up where it won't get sprayed by road grime or hit by rocks, also does not impede your access to other fasteners

Whew a lot goes into these simple things when you type it out

I left these bends in place in case the superlift is ever removed it should still clear the front pinion. Why would you ever? Who knows, these trucks can be on the road for 20-30 years you never know what will happen.

More pics of starter area

Lots of space for a larger/taller setup on pass side

Here is where the dual 2.25â€ pipes are headed on the ranger i take one over and one in the factory spot of the crossmember

____________________

I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger

Already liked -

Quote

Posted: Sun Apr 17th, 2022 12:56 pm

Quote

189^th Post

Eddie Money
Member

Joined: Mon Nov 13th, 2017

Location: Pacific North West

Posts: 1587

Name:

Occupation:

Interests: Burt gummer life ...

Status:

Offline

Reputation:

Reputation Points: 1587

Member's Gallery

"Added by eddie, posted by 410custom"

The terminator x also has a built in map sensor you can use if you don't want to source a 3 bar one

I just lowered the truck down on the lift = the exhaust is done for now

Next I can assemble the engine bay
The Holley will be going in now

Read the quick start guide it is very helpful

Exhaust pipes were removed one more time for final welding

cleaned up and re installed, x pipe will go in when it gets here

first the passenger side pipe, slides into the 5.0 factory hanger assembly

followed by the drivers side, slides into the lower spot of the same hanger, from the other side

The drivers pipe support also includes the first clamp, which will allow this exhaust to come out in 3 sections

The little heat guard on the side of the 4r70w that protects wiring harness was slightly bent to clear new support

tons of airspace between trans and new downpipes!

time to install the Bosch wideband

pipes tucked up nice and tight

pretty

some final shots before I lower the truck

4406e clearance in a ranger using my crossmember/mount

and she's down!

Next up lets complete the 5.0

Last edited on Sun Apr 17th, 2022 01:04 pm by Eddie Money

____________________

I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger

Already liked -

Quote

Posted: Tue Apr 19th, 2022 06:40 pm

Quote

190^th Post

Eddie Money
Member

Joined: Mon Nov 13th, 2017

Location: Pacific North West

Posts: 1587

Name:

Occupation:

Interests: Burt gummer life ...

Status:

Offline

Reputation:

Reputation Points: 1587

Member's Gallery

"Added by eddie, posted by 410custom "

Lying on a creeper checking it all out

The exhaust pipes were in and out of the truck about 15 times while fabricating

I have an special 19mm swivel socket on 3/8â€ drive extensions with Milwaukee 12v powered ratchet that makes short work of getting them in and out, but Patience is needed for this sort of work to get everything placed where it won't bang around, won't melt anything, won't heat up the floorboards or boil the atf. A good mechanic has much much patience and working over your head all day on your feet. Well you could say I sleep good at night during the spring time!

Now I will be cleaning, detailing, modifying and installing 302 parts for a while time to get out the soldering iron!

____________________

I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger

Already liked -

Quote

Posted: Tue Apr 19th, 2022 06:42 pm

Quote

191^st Post

Eddie Money
Member

Joined: Mon Nov 13th, 2017

Location: Pacific North West

Posts: 1587

Name:

Occupation:

Interests: Burt gummer life ...

Status:

Offline

Reputation:

Reputation Points: 1587

Member's Gallery

"Added by eddie, posted by 410custom "

You ready for an update? Lets do this. Few pictures to get through
Some of this maybe boring........... unless you are installing, thinking of installing, or even just wondering how you install, a Holley Terminator in your RBV,

In that case this will be very interesting, just like it was to me!

First up, the magnaflow 2.25" X pipe arrived, what a neat piece this is, perfect spread for our twin 5.0 pipes

Yes those are new Beltech Chevy rear 1" lift shackles, these will actually give the rear of this truck a .5" lift at the axle.....this truck needs them...........more on that later

after much deliberation and checking the perfect location for the crossover pipe was chosen

slipped right in place just after the transmission crossmember

Now I was able to measure and mock up a set of imaginary mufflers
Which lead me to actually ordering two mufflers....I settled with Spintec 3000 series 2.25" low inlet and 2.5" centered outlets.....
This thing is going to sound sooooooo good

They are nice and compact (4x8x13.5), I love the spintec design, I have heard good things........I have wanted to try one of these mufflers behind a 5.0 for some time and now we are going to try two

I know Eddie Money will approve...cammed 302 tuned and run through this exhaust? I can't wait!

____________________

I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger

Already liked -

Quote

Posted: Tue Apr 26th, 2022 08:44 pm

Quote

192^nd Post

Eddie Money
Member

Joined: Mon Nov 13th, 2017

Location: Pacific North West

Posts: 1587

Name:

Occupation:

Interests: Burt gummer life ...

Status:

Offline

Reputation:

Reputation Points: 1587

Member's Gallery

"Added by eddie, posted by 410custom "

Now for the Holley install, this thing is so sweet, once you see what is possible with this Holley system for these conversions it is easy to justify the $$$ spent. The wiring is simplified BIG TIME if you want to convert a v6 truck to the Ford gt40/4r70w setup
That does not mean there is not some wiring, because there is.
And there is a complex installation happening here, but the end result is going to be oh so sweet. I am now saving my pennies so I can put one of these in my daily driven Bronco, and one in my upcoming Sport Trac project too.....

The Holley EFI terminator PCM and harness kit we got for this truck starts right here

This is the main harness (558-104).
This connects our drivetrain/truck to the Holley PCM
There are also sub harness that connect the truck and more drivetrain to the Holley main harness and thus PCM
These include:
Power harness
Injector harness
Transmission harness (4r70w)
Input and output harness (for controlling e fans, ac, more)
Ignition input harness (558-304) (in our case this has leads for a CPS camshaft position sensor and CSS crankshaft position sensor)

Ignition output harness and then there are several various ignition harness' available from Holley.
This is where the majority of the wiring will take place depending on which ignition system you decide to control. We are going to stick with the factory Explorer EDIS waste spark ignition and the Ford coil packs.
To do this with the Holley you will need an ignition harness to connect the Holley PCM and some coil drivers to handle the two coil packs.
Our ignition is waste spark, which means it actually fires two cylinders at a time, one spark is simply wasted on a cylinder that is on exhaust stroke, wasted.

Holley does not make a plug and play ford EDIS coil pack ignition harness, instead we have to build it ourselves. This is true for many of the ignitions the Holley is capable of controlling. To run a coil near plug ignition is also very possible with the Holley.
When our kit was purchased many of the options they have now did not exist, but that is okay.. we are not afraid to do some wiring here.

For the ignition I am using a universal coil on plug harness (558-307) from Holley that plugs the terminator PCM into our 4 channel coil drivers (554-123) and then will be wired into the stock coil packs. This took a little bit to sort out, but has been done now, I even made a map in Autocad.

This is the PCM side of the main harness, you can also see the main power harness (coiled up) and I am holding the small plug where the Holley handheld 3.5" controller plugs in.

This is the ignition adapter harness for HEI ignitions, (ignition signals in) it includes connections for a 3 wire CPS and crank sensor. I had ordered a motorcraft 2 wire cam synchro (98-01 5.0) but during my research I would learn that other Holley efi users have a difficult time getting a reliable signal from the 2 wire. As a result I ended up ordering a 3 wire cam synchronizer and sensor(96-97.5 5.0)

Here is the inputs and outputs accessory harness

main harness connections for various engine sensors listed below, on top n the pic the WB02 lead

I will cut these ends off and solder in the factory ford connectors

Here are the 4 channel coil drivers needed to run the ford coil packs

Again I will be removing many of these plugs and simply soldering the wires, making a tailored to fit streamlined drivetrain harness.

The Holley main harness (558-104) in addition to the sub harness above, will have connections to:
CTS (coolant temp sensor, PCM)
WB02 (bosch wideband 02 sensor)
Fuel Pressure Monitor (I ordered a transducer for this to add to our fuel rail)
Oil pressure monitor (ordered transducer to add to 5.0)
MAT (manifold air temp, for us Ford dudes this is the IAT intake air temp sensor)
Knock sensor (optional, we are not going to add one)
MAP (the terminator PCM has an internal MAP sensor that will work for non boosted setups) We may or may not add a separate map sensor depending on plumbing to the PCM
TPS (throttle position sensor, stock 98 explorer)
IAC (idle air control valve, stock 98 explorer)

Stock Explorer 5.0 systems that we will be deleting:
MAS, no more mass air flow sensor to plumb in
EGR, no more EGR system, a simple block off will be fabricated at the intake and passenger header
Canister purge and canister vent solenoids (I am working on adding separate holley module that can control a simple canister purge solenoid. I like to retain the stock charcoal canister and use a purge valve to burn off EVAP emissions into the intake just like the stock systems do)

Loose wires
Included in the main harness are several inputs and outputs, like for controlling AC WOT relay, electric cooling fans.
There are also two CAN BUS wires, I am not sure what these are capable of talking to or from just yet. aside from communicating with the Holley handheld or Smartdash (yes please!)
The transmission harness has wires for OverDrive on and off controls, NSS Neutral safety output (good for E shift t cases), and reverse light trigger.
Other loose wires are for power connections, fuel pump control, and some ignition stuff we do not need.

On my PC now are many Holley wiring diagrams and instruction pages. I have spent much time researching, plugging in and stretching, identifying and getting myself familiar with every single wire, until I was ready to finally begin the actual installation of the equipment.

I have been putting together Autocad drawn diagrams/Maps of the Holley wiring that will be going into this truck, once they are confirmed they will be posted.

____________________

I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger

Already liked -

Quote

Posted: Tue Apr 26th, 2022 08:49 pm

Quote

193^rd Post

Eddie Money
Member

Joined: Mon Nov 13th, 2017

Location: Pacific North West

Posts: 1587

Name:

Occupation:

Interests: Burt gummer life ...

Status:

Offline

Reputation:

Reputation Points: 1587

Member's Gallery

"Added by eddie, posted by 410custom "

Some delays! Holley ignition harness came in
So did the Spintech mufflers

Wiring is happening now

These mufflers are built very stout! Compared to most this size, these are way beefy!!
Here is a look inside the inlet, you can see the path the exhaust takes into the "spin" chambers

And from the outlet, how the exhaust exits the chambers

unfortunately, I had to wait for the Holley ignition harness to get here
I am using coil on plug universal harness

This harness plugs into the coil drivers the other side comes with pins on the wires, and this will get pinned into the existing PCM connector

So now I was able to lay out the entire Holley system! Please note the transmission harness and wideband 02 sensor were already in the truck, so not pictured.

you can see bottom right, this is one of the two transducers I purchased on Amazon, one is for transmission line pressure and the other is for fuel pressure. Both will get plumbed into the truck and give us info on the Holley 3.5" screen interface.
The black "PCM" will get mounted in the center console (or under pass seat), the main wiring will run through the floor plate and up the spine of the transmission

The new ignition harness is pictured plugged into the coil drivers, ignition wires for our Ford coil pack setup will get pinned into the pcm
up close

ignition side of things

fuel injection harness, connectors are for 96-97 style injectors, I changed these over to EV46 connectors for our 98-01 "returnless style" 19# 5.0 injectors

the rest of the drivetrain connections

on the right is our GM HEI ignition input harness, this hooks to the stock 5.0 THREE WIRE (3) CAM POS SENSOR (do not use the 2 wire) and the stock 5.0 crank sensor

Above it are connections for oil pressure, IAT (intake air temp), MAP (3 bar map sensor, unless you use the one built into the PCM), IAC (idle air control), TPS, knock sensor (not using), fuel pressure, and coolant temp sensor (CTS, for the computer)

I hit up the junk yard to get factory pigtails, this way I did not have to hack up one of my harness since some connectors are 96-97 and some are 98-01. I nabbed several connectors off of a v6, no difference
'
This system is now going in the truck, stay tuned.

____________________

I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger

Already liked -

Quote

Posted: Tue Apr 26th, 2022 08:57 pm

Quote

194^th Post

Eddie Money
Member

Joined: Mon Nov 13th, 2017

Location: Pacific North West

Posts: 1587

Name:

Occupation:

Interests: Burt gummer life ...

Status:

Offline

Reputation:

Reputation Points: 1587

Member's Gallery

"Added by eddie, posted by 410custom "

Oh yeah.... I almost forgot........ the most important part

This is the chart I built in AutoCAD showing the Holley Terminator X to Ford DIS coil pack ignition

I took pictures directly from each Holley component installation manual as well as my trusty Ford wiring book and inserted them directly into the cad file. Then I drew a simple chart so we can make sure to have a perfect understanding of each circuit and each wire.

THIS HAS NOT BEEN TESTED YET
I take no responsibility for you wiring up your project
I am simply sharing with you guys my build and how this all plays out.

With that said, the wiring shown is very straight forward (no guesswork involved) thus I expect this to be how the truck gets wired final

____________________

I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger

Already liked -

Quote

Posted: Sun May 1st, 2022 12:57 am

Quote

195^th Post

12Â° North Industries
SITE SPONSOR

Joined: Thu Nov 23rd, 2017

Location: Las Vegas, Nevada USA

Posts: 389

Name:

Occupation: Vehicle Upfitter ...

Interests: The great outdoors, nature, back to basics ...

Status:

Offline

Reputation:

Reputation Points: 389

Member's Gallery

With all that wiring, which many probably just stare at the situation at hand. We waiting for the next post where the hands are thrown in the air and you tell everyone due to current laws and "climate change" social pressures, the Tesla swap is now on the way.. lol

jk

____________________
North Industries
Las Vegas, Nevada 89118
Web http://www.12degnorth.com

Already liked - 1 like likes

Eddie Money

Quote

Posted: Sun May 1st, 2022 11:21 am

Quote

196^th Post

Eddie Money
Member

Joined: Mon Nov 13th, 2017

Location: Pacific North West

Posts: 1587

Name:

Occupation:

Interests: Burt gummer life ...

Status:

Offline

Reputation:

Reputation Points: 1587

Member's Gallery

My tow rig is a Prius to offset my carbon foot print...

Lol. Joking...

____________________

I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger

Already liked - 1 like likes

12Â° North Industries

Quote

Posted: Sun May 1st, 2022 10:14 pm

Quote

197^th Post

12Â° North Industries
SITE SPONSOR

Joined: Thu Nov 23rd, 2017

Location: Las Vegas, Nevada USA

Posts: 389

Name:

Occupation: Vehicle Upfitter ...

Interests: The great outdoors, nature, back to basics ...

Status:

Offline

Reputation:

Reputation Points: 389

Member's Gallery

Seems Legit.. I've seen crazier

____________________
North Industries
Las Vegas, Nevada 89118
Web http://www.12degnorth.com

Already liked - 1 like likes

Eddie Money

Quote

Posted: Tue Jul 19th, 2022 08:45 pm

Quote

198^th Post

Eddie Money
Member

Joined: Mon Nov 13th, 2017

Location: Pacific North West

Posts: 1587

Name:

Occupation:

Interests: Burt gummer life ...

Status:

Offline

Reputation:

Reputation Points: 1587

Member's Gallery

"Added by eddie, posted by 410custom"

Holley wiring is mostly installed!!

We have an active warranty claim with RCV I am to send in the defective half shaft for repair!!
Thanks to Eddie Money following up with RCV this time around, we finally have light at the end of the tunnel. We have been after a replacement CV axle since 10/2020

All engine parts are clean and being prepped for final install... we should be ready to program the Holley pcm!
I have lots of pictures to get through here so I figured I better get an update posted!!

First up the comp cams pushrods and factory rockers needed to be installed, so I could do the final install of the valve covers and fuel rail......then finally the Holley wiring could be fit to the truck, engine and transmission

What a view! Shop has been spring cleaned and organized, truck was cleaned by hand (again), ready for the next round of parts!!

comp cams 6.3 magnum pushrods
Each one dipped in oil and installed into the lifter valley
Factory rockers and pedestal mounts cleaned, dipped in oil and installed. Engine turned over by hand several times (15/16" socket on crank damper)
Each rocker I bring to zero lash by hand then torque down. With the pushrod on the base circle of the camshaft (valves closed) It should take less then a half rotation/turn to achieve torque value
Valvetrain torque checked several times....28 ft lbs and done
Valve covers final installed with Felpro cork gaskets/permatex

Don't worry that light surface rust / gasket surfaces will be cleaned up, of course

Mmmmmmm yummy Mobil one 0-40W European car formula!!

both banks done, surfaces cleaned and prepped, time for valve covers

New 19#/hr (remanufactured, flow tested and matched set) 98-01 style injectors and O rings

Next up camshaft and crank sensors, the last step before the Holley wiring can go in

Last edited on Tue Jul 19th, 2022 08:47 pm by Eddie Money

____________________

I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger

Already liked -

Quote

Posted: Tue Jul 19th, 2022 08:52 pm

Quote

199^th Post

Eddie Money
Member

Joined: Mon Nov 13th, 2017

Location: Pacific North West

Posts: 1587

Name:

Occupation:

Interests: Burt gummer life ...

Status:

Offline

Reputation:

Reputation Points: 1587

Member's Gallery

"Added by eddie, posted by 410custom"

fuel rail cleaned and installed with its hold down bolts. Injector O rings are coated in some vaseline, never install O ring dry

Time for new camshaft synchronizer

#1 spark plug removed. Finger is wetted, stuck in the #1 hole. engine turned over until air rushes past y finger = compression stroke.
Then I use a flashlight and watch the piston travel to its top, then as soon as it begins to drop. stop. Cylinder #1 at TDC compression stroke.
Verify the position by bringing crank damper exactly to the "0"
Now cam sensor can be dropped in

brand new Motorcraft synchronizer, 3 wire, 96-97.5 5.0 explorer
3 wire sensor snagged from 104K donor truck
wiring pigtails from junk yard to be wired directly to Holley harness

alignment tool installed, cam sensor dipped in oil, installed with hold down bolt

next round of parts

97 style crank sensor and guard cleaned up and installed

Finally time for the drivetrain wiring!!

Last edited on Tue Jul 19th, 2022 09:09 pm by Eddie Money

____________________

I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger

Already liked -

Quote

Posted: Tue Jul 19th, 2022 09:19 pm

Quote

200^th Post

Eddie Money
Member

Joined: Mon Nov 13th, 2017

Location: Pacific North West

Posts: 1587

Name:

Occupation:

Interests: Burt gummer life ...

Status:

Offline

Reputation:

Reputation Points: 1587

Member's Gallery

"Added by eddie, posted by 410custom"

okay so first up I need to convert the Holley injector harness to use the 98+ style connectors.
Every wire will be soldered on this harness
harness will be tailored to fit the engine bay
holley connectors are removed and factory 5.0 connectors are installed

Holley main harness test fit / installed up the spine of the transmission and into the cab of the truck
Fuel injection harness final wrapped and installed
Crankshaft and Camshaft sensor harness also installed

These are 98-01 style 5.0 injectors, 19# along with the returnless style fuel rail. This will work well with our 07 Ranger style fuel system

crank and cam 5.0 sensors along with their appropriate pigtails.
Wired per Holley chart (and my notes like these)

Now it is time to wire in the Ignition (coil pack) wires. They get integrated into the Holley main harness

per the chart from earlier

These wires get pinned into the Holley PCM connector P1B here

Pull out the white plastic spacers, and add the wires to designated pin locations per chart.
Also you must release the white lock, this will allow pins to slide in and out of connector

press here

unlocked

Ignition coil driver wires going in pins 15-17 and 21-24
Pin 14 is ground distribution from PCM, three wires get combined here

All wires added now, grounds combined
Coil pack wiring integrated!

Now main harness can be installed back into the truck for final time. It slides right in on the passenger side above the header and behind the trans dipstick

wiring laid out over engine, time to clean a bunch of 5.0 parts

Next line of parts being prepped

meanwhile I need to sort out the power steering line and fuel lines

EGR is being deleted, however I still need a vacuum feed for the fuel damper. Modified factory parts work perfectly here

Here is where the injector and cam/crank sensor harness plugs

Test fitting the intake plenum and spacer

more details from the cam and crank sensor wiring harness from earlier

Very nice when it's all clean and routed OEM style

07 Ranger is returnless fuel so I am using 98-01 style injectors and rail

The Holley can run a COP ignition, the cost difference is marginal on the Holley side of things. I am actually using the COP ignition harness modified to use the Ford coil packs, by way of the coil drivers

When I build my truck with a similar system I will likely use the LS style coils with COP ignition

The Holley PCM can be mounted under the hood, there are some precautions to take
It should not be exposed to the elements directly, I was tempted to mount it in the stock 07 location which is in the firewall and exposed to the elements! It can get wet but they want you to angle it down so the connectors drop water off.. this would not work for me I wanted to put it under the hood in the stock location but mount it so you could see the lights wiring this would be very difficult
later I decided the center console or under the dash is its natural home, the 2007 Ranger has way different holes in the firewall, not like the 95-04 trucks I am used to........

I have spent much time with the Holley system trying different routing.
I have left the map and knock sensor plugs in place in an effort to leave things stock(ish)
It could be further streamlined by removing un used connectors
Who knows what kind of mods may come in the future.

I still have more to cover working through these pictures
The fuel line has been sorted out, and I believe I have a power steering line that will work , again the 07 is different then the earlier Rangers/Tracs
The IAC, TPS, CTS, and IAT sensors will be wired when the intake is installed.
I have a plug for the Torque Monster EGR bung on the way. It is a 22mm 1.25 pitch stainless drain plug
The hole in the intake plenum will get a simple block off plate.

All parts are cleaned, some are being painted. I have everything I need to complete the engine
Working through small things like oil pressure, fuel pressure and trans line pressure port locations is also happening.
Once the engine bay is complete the real wiring will begin, the truck side of things.
I have many electronics to install, enough to warrant the addition of a fuse/relay box of some sort

accessory brackets going in, needed to test fit PS pump to sort out the high pressure line

You can see the Holley coil drivers we will be using to emulate the stock DIS, waste spark, coil pack ignition
These may very well end up being mounted on the underside of the coil tower tripod

Heater bypass hose installed, these are "cut to fit" these days, here is how I do it for a perfect fit

trace the factory hose, makes perfect replica, trim in correct spots.
I use vaseline inside the hose on both ends, put it half way on thermostat housing, half way on water pump and then press.... can even be done in the truck this way on the side of the highway, covered in coolant..... don't ask! Any long time 5.0 owner knows what I mean

Last edited on Tue Jul 19th, 2022 09:42 pm by Eddie Money

____________________

I know my crazy! Do you?
2007 Sport 4door 4x4 4.0L SOHC V6 Ranger

Already liked -

Quote

Current time is 10:37 pm	Top	Page: ... 3 4 5 6 7 8 9 10 11 12 13 ...
Ford-Rangers.com Ranger Forum > Tech Section > Member's Projects Showcase > 410Custom's builds a 2007 Ranger V8 - cu
Users viewing this topic

PHP Version: 8.2.28

Server version: 10.6.22-MariaDB
