Did the 1st gen 2wd trucks have sway bar mounted behind the axle, then moved to in front of axle for 90 model year?

Thanks
Mark.

Back To Top PM Quote Reply

 Posted: Sun Mar 8th, 2020 08:48 pm
PM Quote Reply
2nd Post
410customs

Idahome


Joined: Wed May 2nd, 2018
Location: Panhandle, Idaho USA
Posts: 2165
Name: Jamie ...
Occupation: Elevator Design Worlds Tallest Buildings ...
Interests: Ranger Based Vehicles and OFFROAD ...
Status:
Offline
Reputation:
Reputation Points: 2165

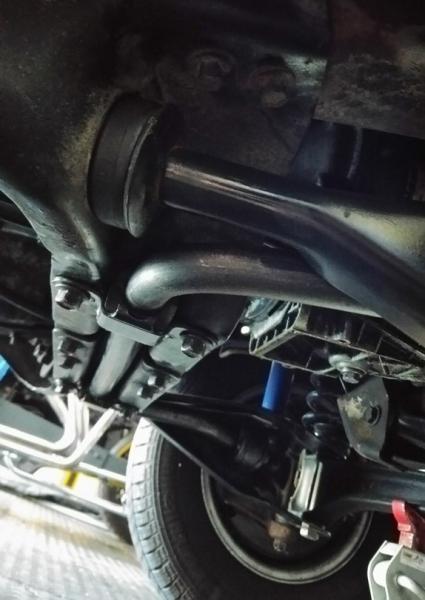

as far as I know the 83-89 Ranger REAR sway bar is mounted in front of the axle

Like this



This is very similar to how the factory sway bar was on my 88 Bronco II



____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks
Back To Top PM Quote Reply

 Posted: Mon Mar 9th, 2020 08:25 am
PM Quote Reply
3rd Post
mark40
Member


Joined: Sun Feb 9th, 2020
Location:
Posts: 14
Name:
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 14
Thanks for the picture. I was however referring to the front bar and neglected to put it in my original post. Duh, sorry.

Back To Top PM Quote Reply

 Posted: Mon Mar 9th, 2020 09:32 am
PM Quote Reply
4th Post
410customs

Idahome


Joined: Wed May 2nd, 2018
Location: Panhandle, Idaho USA
Posts: 2165
Name: Jamie ...
Occupation: Elevator Design Worlds Tallest Buildings ...
Interests: Ranger Based Vehicles and OFFROAD ...
Status:
Offline
Reputation:
Reputation Points: 2165
1983 Rangers had the sway bar behind the axle, mounted in the radius arm crossmember
Some 84-88 extended cabs were this way also


Everyone else was in front of the beams



____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks
Back To Top PM Quote Reply

 Posted: Mon Mar 9th, 2020 10:18 am
PM Quote Reply
5th Post
mark40
Member


Joined: Sun Feb 9th, 2020
Location:
Posts: 14
Name:
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 14
That is what I thought. So I should be able to adapt a 90 + front bar to my 88? I just need some brackets to attach the links to the beams? Maybe 90 + brackets?

Thanks.

Back To Top PM Quote Reply

 Posted: Mon Mar 9th, 2020 11:43 am
PM Quote Reply
6th Post
410customs

Idahome


Joined: Wed May 2nd, 2018
Location: Panhandle, Idaho USA
Posts: 2165
Name: Jamie ...
Occupation: Elevator Design Worlds Tallest Buildings ...
Interests: Ranger Based Vehicles and OFFROAD ...
Status:
Offline
Reputation:
Reputation Points: 2165
yes absolutely
In fact my 88 BII was running 93 explorer sway bars until I removed them



____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks
Back To Top PM Quote Reply

 Posted: Mon Mar 9th, 2020 12:07 pm
PM Quote Reply
7th Post
Scrambler82
Old Bastard !


Joined: Fri Dec 22nd, 2017
Location: California USA
Posts: 2108
Name: Grev B ...
Occupation: Quality Assurance Engineer ...
Interests: Rangers, Photography, Metal Bending ...
Status:
Offline
Reputation:
Reputation Points: 2108
Find out the original OD of the bar and either match it for can OEM ride factor or find one larger, which I assume the explorer front bar is larger than the Ranger, to give a more stable but less flexible ride.
its all up to what and how you want the ride to be, less roll or more roll.

My '88 STX, high boy, had front and rear swap bars, it cornered flat, felt good gong in a corner.
When I did the 5.5" lift I lost the rear swap bar but the springs made up for it in cornering, I was suppose to get more flex without it, I didn't really notice.
then of course there're Sway Bar Disconnects, which allow you to do what it says, disconnect the Sway Bar, allowing for more flex off roading.

But you did ask for a 2X answer, I would think thicker will give you a firmer ride and better cornering !

Ltr



____________________
Ltr,
2003 EDGE, Std Cab, Steppie, E4 Red, 5sp, 4x
5" SuperLift, 33" x 12.50 x 15"
Hurst Shifter
Mod'd Backrack to fit Steppie
Front and Rear Bumpers by Custom 4x4 Fabrication, OK; now Mike's Welding and Fabrication.
Working on more Mods, just need more time, longer days would work !
Back To Top PM Quote Reply

 Posted: Mon Mar 9th, 2020 09:20 pm
PM Quote Reply
8th Post
1qaz
Member


Joined: Sun Feb 25th, 2018
Location: USA
Posts: 198
Name:
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 198

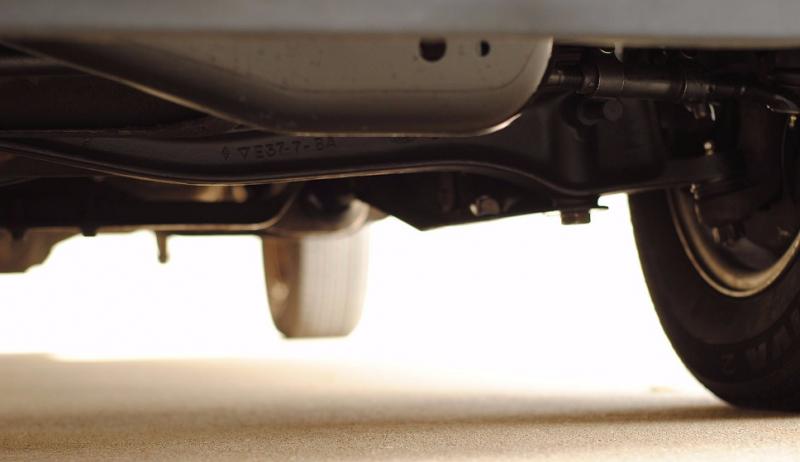

Mark,  The front axles on the first and second gens are different.  The first gen has an appendage on the front of it.  On the second gen, that appendage is gone and replaced with a tapped hole where the sway bar connects.  In the pic below notice the piece sticking out on the front of the driver's side axle immediately below the tie rod...that's a first gen...I do not know what purpose (if any) it serves.

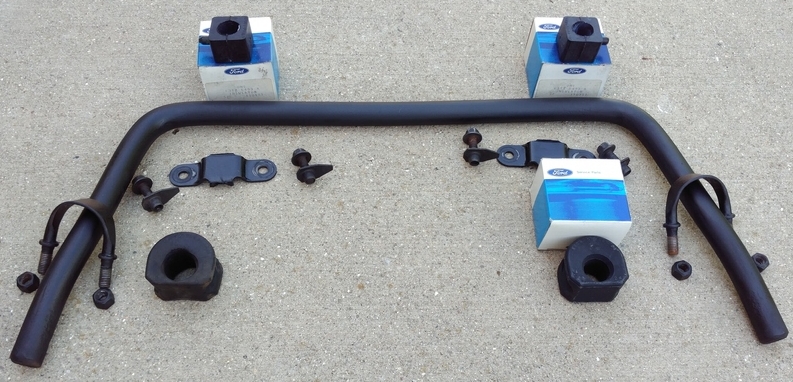

That piece is absent on the gen 2 axles and the sway bar bracket attaches there.  For the first gens, the sway bar attaches to the radius arms and mounts in the front cross member as 410 displayed above.  The pics below are one of all the parts you need and a view from the passenger side once it's installed.

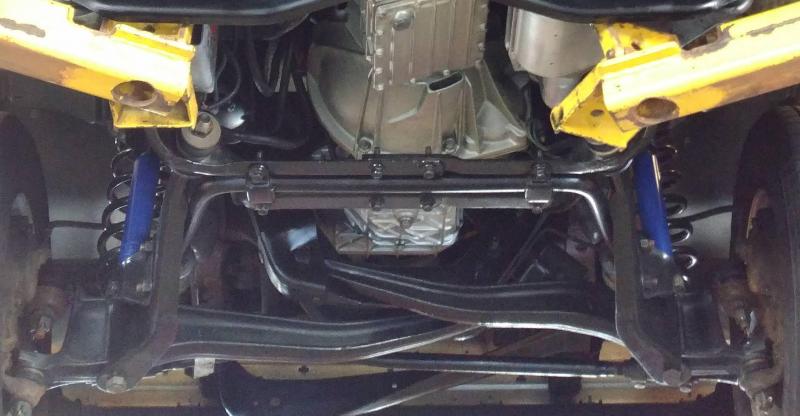

Here's a shot from underneath looking forward.




My '87 did not come from the factory with a front or rear sway bar.  I found a front one at a salvage yard a few years back, restored it and installed it.

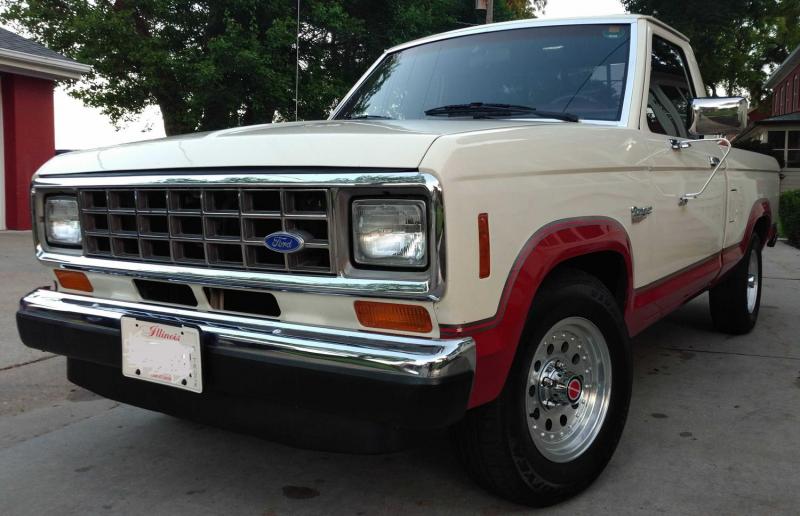

This is the 87 XLT 2WD that modeled for the pics above.


Last edited on Mon Mar 9th, 2020 09:48 pm by 1qaz

Back To Top PM Quote Reply

 Posted: Tue Mar 10th, 2020 08:32 am
PM Quote Reply
9th Post
mark40
Member


Joined: Sun Feb 9th, 2020
Location:
Posts: 14
Name:
Occupation:
Interests:
Status:
Offline
Reputation:
Reputation Points: 14
[/url][url=https://ford-rangers.com/users/146.html]1qaz   Thank you very much for that. That is by far the best info I have seen (and searched quite a bit). I believe the appendage you are referring to is a steering stop? Mine has those but I see they are gone on the 90 + trucks. I could not find ANY parts for our year trucks + I like the idea of the later (in front of axle) style a little better, so I have ordered some of the brackets that attach to the axle beams and will see what I can make work.

Good looking truck by the way!!

Thanks.
